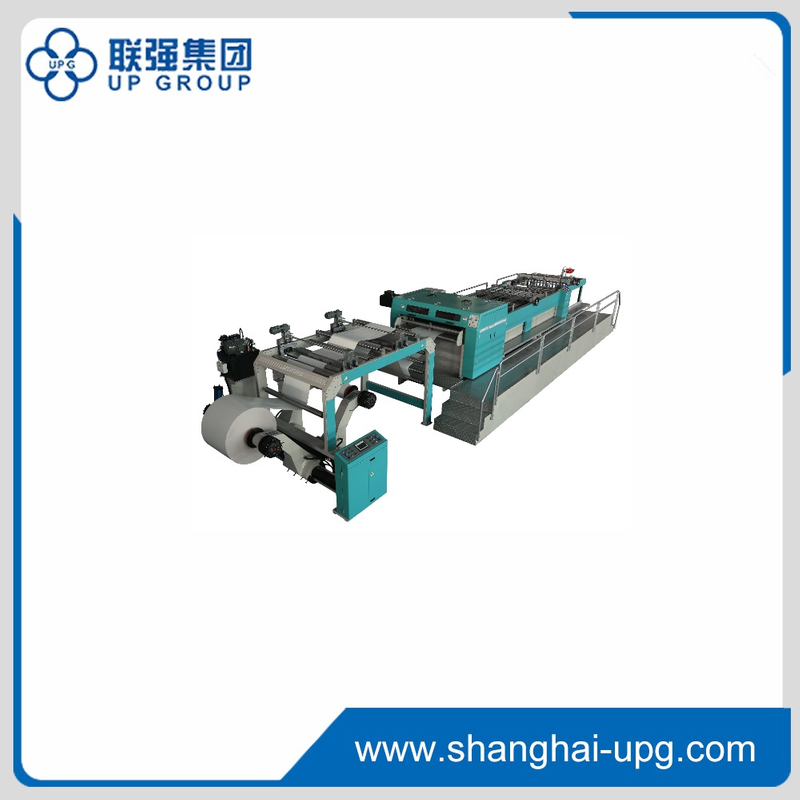

LQ-1900RSE SYNCHRO-FLY (TWIN KNIFE) SERVO-DRIVEN SHEET CUTTER

Share to:

LQ-1900RSE SYNCHRO-FLY (TWIN KNIFE) SERVO-DRIVEN SHEET CUTTER

After paper rewound, paper machine base paper cutting and quantitative customize paper volume, mechanical automatic leveling, bending the air-filled type pneumatic brake disc type multipoint, PLC automatic tension control, pneumatic type paper protection device, cutting length, speed setting, and, according to the automatic adjustment, automatic cutting and cross-cutting knife and powder paper suction MAO, static elimination, points the paper, overlapping paper, automatic counting, put, automatic paper heap of vibration function, emergency stop automatically.

Availability:

Quantity:



Inquire Add to Basket PDF Export

Model:
LQ-1900RSE
Brand:
UPG

The Unwind Stand: Hydraulic 2-Roll Shaftless Floor Pick-Up Unwind Stands for 2 reels. These back stand, floor pick-up type, features hydraulic lifting & lowering, centering, side shifting and alignment of rolls via push buttons. The controller is via LCD touch screen panel.

Maximum web width	1900 mm (75”)
Minimum web width	450 mm (18”)
Design speed	300 meters per minute @ 1-meter cut length
Operating speed	up to 300 mpm
Maximum cutting length	1500 mm (60”)
Minimum cutting length	450 mm (18”)

Maximum web width	1900 mm (75”)
Minimum web width	450 mm (18”)
Design speed	300 meters per minute @ 1-meter cut length
Operating speed	up to 300 mpm
Maximum cutting length	1500 mm (60”)
Minimum cutting length	450 mm (18”)
