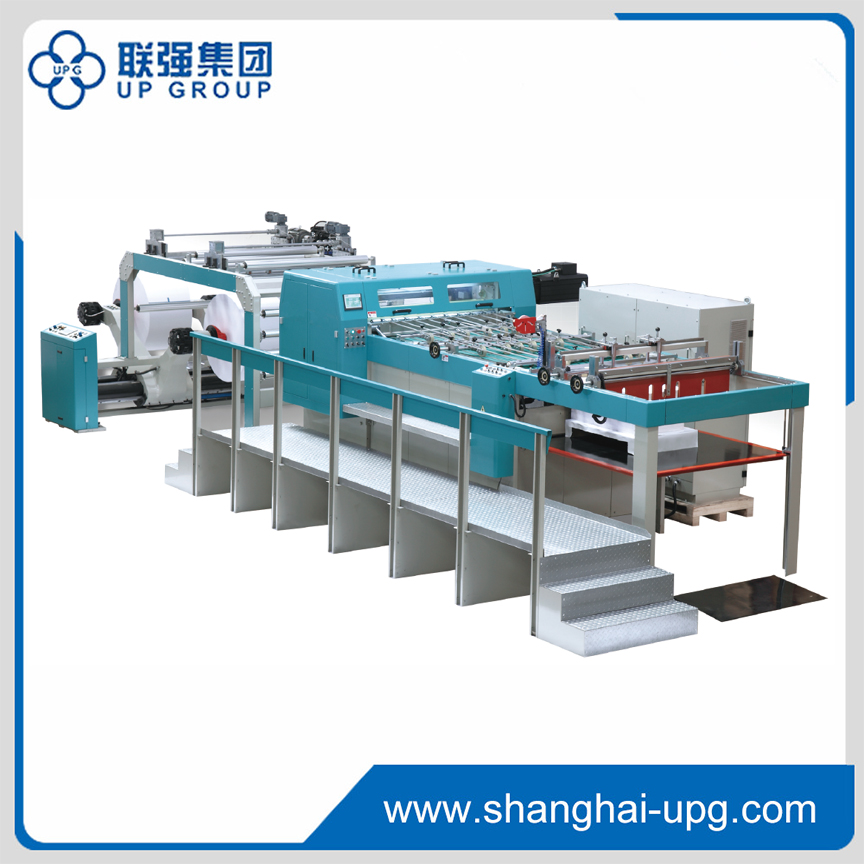

LQ-1450SH/1100SH
UPG
It is suitable for slitting all kinds of high-grade folio packaging paper , With a speed of up to 560 knives/min and adopts an intelligent control system, Which can realize automatic paper splicing, Deviation correction, Barcode two-dimensional code and other variable data printing, Drying, Warping and leveling, Bench marking and slitting, Automatic adjustment of overlapping and delivery positions and automatic palletizing, restacking and paper stacking output.
It is suitable for slitting all kinds of high-grade folio packaging paper , With a speed of up to 560 knives/min and adopts an intelligent control system, Which can realize automatic paper splicing, Deviation correction, Barcode two-dimensional code and other variable data printing, Drying, Warping and leveling, Bench marking and slitting, Automatic adjustment of overlapping and delivery positions and automatic palletizing, restacking and paper stacking output.
Model | LQ-1450SH | LQ-1100SH |
Cutting Type | Synchro-Fly Twin Knife | Synchro-Fly Twin Knife |
Web Width Range | 400-1450 mm | 400-1100 mm |
Pile Height including Pallet | 1350 mm | 1350 mm |
Gross Pile Weight | 2000 kg | 2000 kg |
Max Speed | 300 m/min | 300 m/min |
Printing Speed | Barcode 160 m/min or code 220 m/min | Barcode 160 m/min or code 220 m/min |
Knife Load-cross Cutter | 50-600 gsm | 50-600 gsm |
Precision | ± 0.15 mm | ±0.15 mm |
Dimensions | 17300x4000x2700 mm | 17300x4400x2700 mm |
