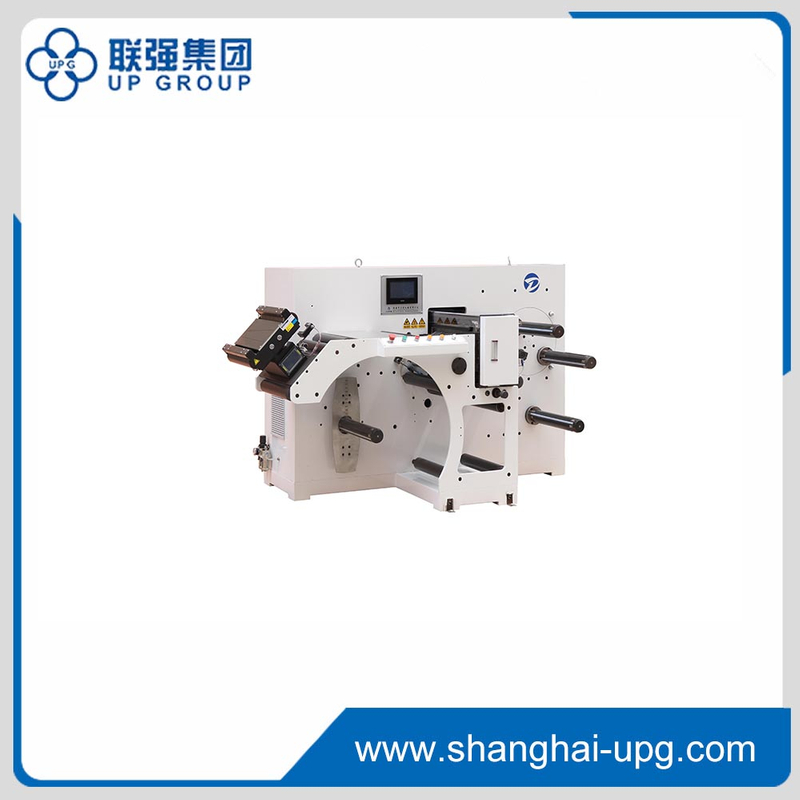

LQ Automatic high speed slitting machine with knife auto setup

Automatic high speed slitting machine mainly for narrow web label slitting, it is with full servo motor drive system, taper tension control system, web guide system, turret rewind. It is suitable for different diameter cores slitting and rewinding.

Availability:
Quantity:
  • UPG

  • UPG

This machine adopts the lastest of the Mitsubishi Control System from Japan, Schneider low-voltage electrical apparatus from France. This machine runs the paper material with uniform speed, and adopts auto tension which is very stability. With the high degree of automation, the speed can up to 140m/min , the pressure is stable when the speed is low or fast, can install slitting device , hot stamping or cold foiling ,sheeting and other matching functions


Model

HSR370

HSR480

Speed

350m/min

350m/min

Max   unwind width

370mm

370mm

Max   unwind dia.

800mm

800mm

Max   up rewind dia.

450mm

450mm

Max   down rewind dia.

700mm

700mm

Razor   knife

Optional

Optional

Rotary   knife

8   sets

8   sets

Slitting   precision

±0.1mm

±0.1mm

Total   power

9kw

12kw

dimension

2200*1350*1350mm

2200*1460*1350mm

Weight

1300kgs

1500kgs
