LQ-320
UPG

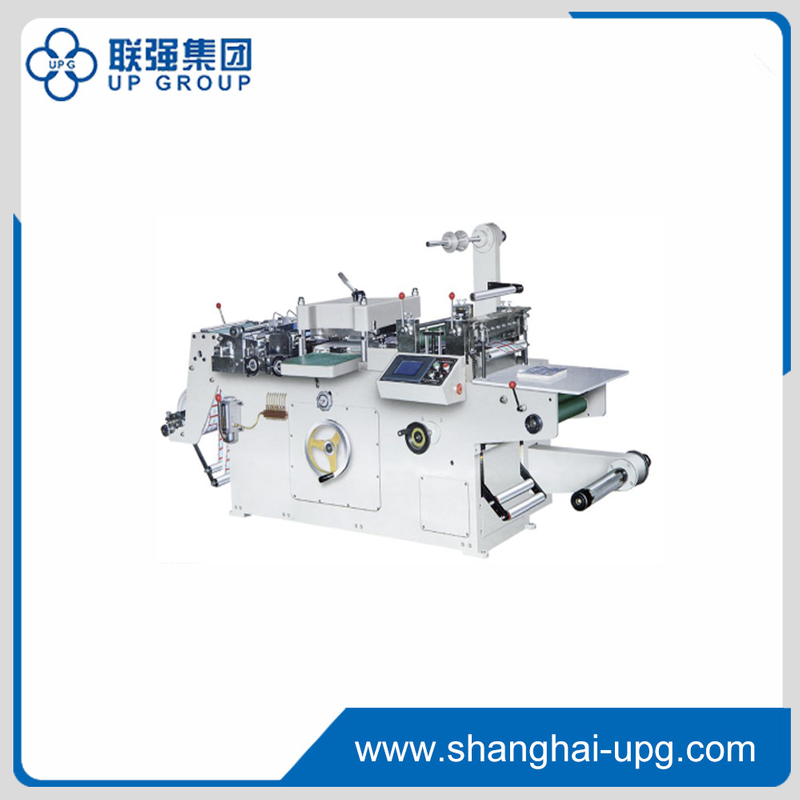

This machine adopts the lastest of the Mitsubishi Control System from Japan, Schneider low-voltage electrical apparatus from France. This machine runs the paper material with uniform speed, and adopts auto tension which is very stability. With the high degree of automation, the speed can up to 140m/min , the pressure is stable when the speed is low or fast, can install slitting device , hot stamping or cold foiling ,sheeting and other matching functions
This machine adopts the lastest of the Mitsubishi Control System from Japan, Schneider low-voltage electrical apparatus from France. This machine runs the paper material with uniform speed, and adopts auto tension which is very stability. With the high degree of automation, the speed can up to 140m/min , the pressure is stable when the speed is low or fast, can install slitting device , hot stamping or cold foiling ,sheeting and other matching functions
Max speed | 300 times/ min |
Max.Web Width | 320mm |
Max.Unwinding Diameter | 550mm |
Max.Rewinding Diameter | 550mm |
Die cutting range | 300*300mm |
precision die-cutting | ±0.15mm |
Dimension(L*W*H) | 3160*1320*1680mm |
Weight | 1700KG |
Voltage | 220V 1phase |
Max speed | 300 times/ min |
Max.Web Width | 320mm |
Max.Unwinding Diameter | 550mm |
Max.Rewinding Diameter | 550mm |
Die cutting range | 300*300mm |
precision die-cutting | ±0.15mm |
Dimension(L*W*H) | 3160*1320*1680mm |
Weight | 1700KG |
Voltage | 220V 1phase |
1.Part of unwinding | |||||||
Name | Model | Bland | Quantity | Working | |||
Friction disk | 320 | UPG | 1pcs | ||||
Motor | 300W | Deli Wuhu | 1Pcs | ||||
Air shaft | 3inch | Dexin | 1PcS | Platen type | |||
2.Part of laminating(optional ) | |||||||
Name | Model | Bland | Quantity | Working | |||
Adjustable shaft | UPG | 1PCS | |||||
3. Part of web guiding | |||||||
Name | Model | Bland | Quantity | Working | |||
Feed roll | Rubber | Chunfeng | 1pcs | ||||

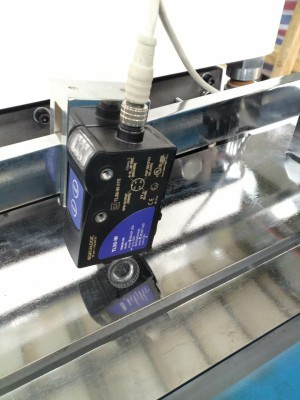

Electric eye | CNBDL | China | 2pcs | ||||
Magic eye tracking | Datelogic | Italy | 1pcs | ||||
4. Part of die cutting | |||||||
Name | Model | Bland | Quantity | Working | |||
Host motor | 3kW | Wannan | 1pcs | ||||
Automatic circulating lubrication system | Jintongshun | 1set | |||||
Bearing | LYC | 1set | |||||
Body casting assembly | UPG | 1 | |||||
Die cutting seat assembly | UPG | 1 | |||||
5. Part of pulling | |||||||
Name | Model | Bland | Quantity | Working | |||
Servo motor | Dorna | 1pcs | |||||
Rubber covered roller | Chunfeng | 1pcs | |||||
Bearing | LYC | 1set | |||||
Belt | Fulong | 1set | |||||
6. Part of rewinding | |||||||
Name | Model | Bland | Quantity | Working | |||
Magnetic cluch | 50N | Shengda | 1pcs | ||||
Motor | 300W | Deli Wuhu | 1Pcs | ||||
Air shaft | 3inch | Dexin | 1PcS | ||||
7.Part of sheet | |||||||
Name | Model | Bland | Quantity | Working | |||
Cross cut blade | Shanghai | 1pcs | |||||
Electromagnetic clutch | Shengyao | 1pcs | |||||
8. Part of waste | |||||||
Name | Model | Bland | Quantity | Working | |||
Motor | 140W | Taili | 1pcs | ||||
Magnetic cluch | 2.5 | Shengda | 1pcs | ||||
9.Part of hot foil(optional) | |||||||
Name | Model | Bland | Quantity | Working | |||
servo motor | Dorna | 1pcs | |||||
servo driver | Dorna | 1pcs | |||||
Unwinding roller | UPG | 1pcs | |||||
Rewinding roller | UPG | 1pcs | |||||

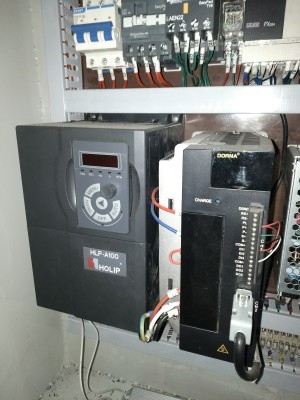

10. Part of electronic control | |||||||
Name | Model | Bland | Qty | Working | |||
PLC | Mitsubishi | 1 | |||||
Touch screen | fangyi | 1 | |||||
Servo motor | Dorna | 1 | |||||
Servo drive | Dorna | ||||||
Frequency transformer | Danvers | 1 | |||||
Electric relay | Schneider | 1 | |||||
AC contactor | Schneider | ||||||
Light electric eye correction | Schneider | ||||||
Governor | Schneider | ||||||
Magic eye tracking | Chint | ||||||
Switch | Chint |
