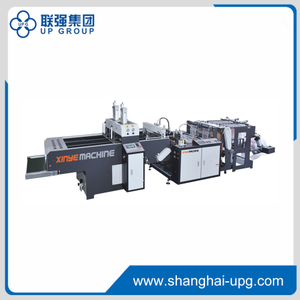

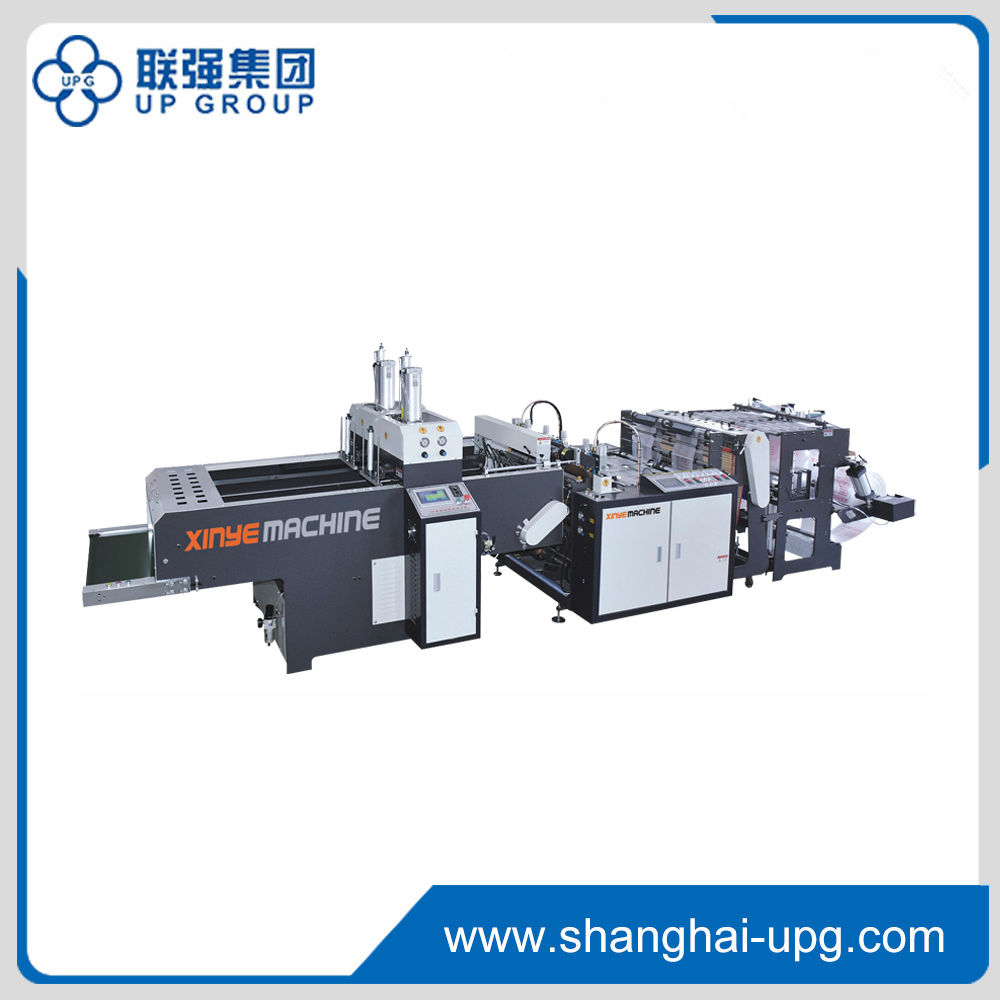

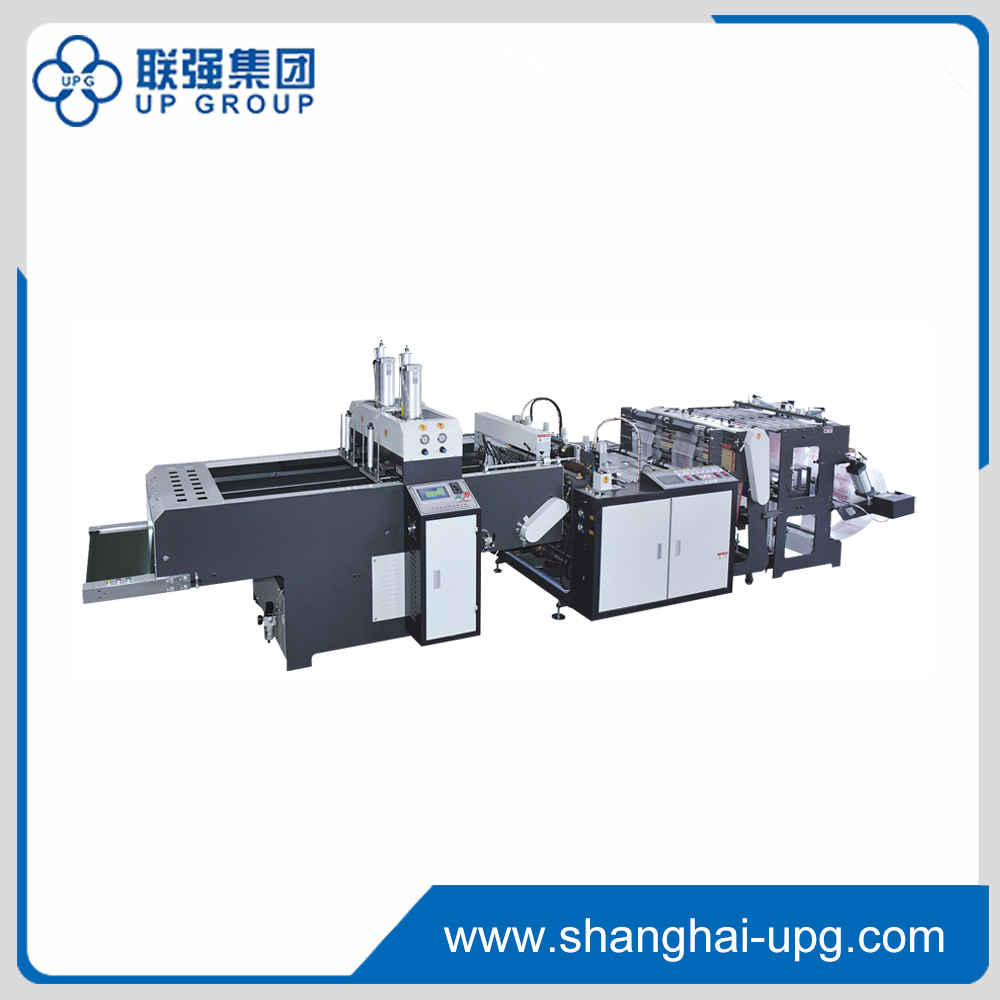

LQ-400/450/500*2
UPG
Usage & Characteristic:
The machine uses material such as HDPE and LDPE film to make colored and uncolored plastic T-shirt bag. it isl equipped with PLC and touch screen to control the bag length automatically, getting the unwinding, sealing.l cutting, punching and conveying done at one time. it has high automation and good economic benefits.
1. This machine is hot sealing hot cutting bottom sealing machine special for polyethylene T-shirt (w/u shape) shopping bags. which can automatically cut the W or U shape handles. It can increase the output and save labor.
2. It is double lines design with two separate servo and printing marks tracking systems which allows to produce two printed bag at same time.
3. Adopt high sensitivity photoelectric eye, accurately tracks the printed marks. When the printed mark is missing, machine alarms and stops.
4. Main motor and unwinding motor adopt AC motor controlled by Frequency inverters, which is easy to adjust speed and save power.
5. Machine stops automatically when film rolls used up.
6. When it comes to per setting quantity, sealing and cutting unit keeps working while the handle punch unit robot hand pulls and delivers the bags to punching mould.d
7. Special design sealing knife allows 100 degree rotation when need clean the knife, which is more convenient and safe.
8. The sealing part is strong and the finished product is neat.
9. Adopt gas-liquid booster cylinder on punching machine. low noise, small gas consumption.
Technical parameters:
Model | LQ-400×2 | LQ-450×2 | LQ-500×2 |
Max. Bag-making width | 360mm×2 | 410mm×2 | 450mm×2 |
Producing length | 660mm | 680mm | 750mm |
Producing speed | 100-240×2circle | 100-240×2circle | 100-240×2circle |
Thickness of film | 0.008-0.035 | 0.008-0.035 | 0.008-0.035 |
Main motor | 1.5kw | 1.5kw | 1.5kw |
Main power | 8kw | 10kw | 12kw |
Air pressure | 7kgcm²; 700N/min | 7kgcm²; 700N/min | 7kgcm²; 700N/min |
Max. Dia. for unwinding roller | 360mm×2 | 410mm×2 | 450mm×2 |
Machine weight | 2.0T | 2.1T | 2.2T |
Overall dimension(L×W×H) | 7.0×1.6×1.7m | 7.0×1.7×1.7m | 7.0×1.8×1.7m |
Company Profile:
Superior:
A trading brand enterprise which is invested by industry and joint industry and trade.
ShangHai UPG International Industry & Trade Group Co., Ltd. is a professional trading company which is invested by UP Group's key branch enterprises together, the company has become the most active and influential brand in the printing and packaging machinery industry in China.
We own high efficiency, high quality, stable and professional trade working team.
In the long-term practice of trading, we foster and establish a multilingual, professional, high diathesis and qualification staff team, which form the biggest and most powerful trading enterprises in this industry. Among our working team, 97% obtain the associate degree and bachelor degree, 40% own intermediate level professional titles, master degree or above.
We adhere the philosophy that "over-value service, pioneering and pragmatic, and Win-win cooperation".
We start from innovation system, improve the institutional mechanism, gradually cultivating and forming a value pursuit, and enterprise culture which specialize in "Honest and trustworthy, Diligent and promising, Pursue excellence and efficiency, over-value service". We always ensure the quality of the products and service, establish long-term and stable relations of cooperation with domestic suppliers as well as our foreign customers for mutual benefits.
Superiority of abundant resource, matching into a line, high optionality.
We centred on printing machinery manufacturing and have established long term strategic collaborations with more than 50 cost-effective, high quality and reputation brand enterprises and factories, which cover printing and packaging, food and pharmaceutical packaging, printing consumables and rubber& plastic machinery, and form a multi-category, multispecies and multilevel integrated superiority and provide a convenient service channel for foreign customers.
Well planned, high input, extensive coverage exhibition publicity.
The huge investment of more than 20 international professional exhibitions and more than one billion sales amount per year make our company known overseas and be of high reputation in domestic and abroad market.
Strengthen channel building, service to global customers, multiple trading strategic pattern.
Through several years' effort, we have exported products to more than 80 countries (not only Asia but also Europe, Africa, South America, North America and Oceania) and have established long term strategic collaborations with distributors and sales channels in more than 40 countries and regions, which play an important role for open foreign market and maintain service terminal clients.
Our Customers:
Exhibitions:
Export Markets:
UP Group's products have been exported to more than 80 countries.
In Southeast Asia, its products cover Thailand, Indonesia, Singapore, Malaysia, Brunei, the Philippines, Japan, Korea, Vietnam, Cambodia, India, Sri Lanka, Nepal, Dubai, Kuwait, Saudi, Syria, Lebanon, Maldives, Bahrain, Jordan, Sudan, Mongolia, Myanmar, Pakistan, Iran, Turkey and Bangladesh.
In European, its products cover Australia, New Zealand, Britain, France, Germany, Italy, Spain, Portugal, Georgians, Slovakia Finland, Poland, the Czech Republic, Russia, Ukraine, Belarus, Kazakhstan, Uzbekistan, Sweden, Bosnia, Herzegovina and Albania
In Africa, its products cover South Africa, Kenya, Ethiopia, Egypt, Morocco, Algeria, Tunisia, Madagascar, Mauritius, Nigeria, Ivory Coast, Ghana, Mali, Liberia and Cameroon.
In America, its products cover The United States, Canada, Mexico, Panama, Costa Rica, Brazil, Argentina, Columbia, Bolivia, Uruguay, Paraguay, Chile, Peru, Ecuador and Honduras.
Among these regions, we have more than 46 stable distributors and partners for many years.
Packaging and Shipping:
Our Services:
Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.
In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.
After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.
Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.
