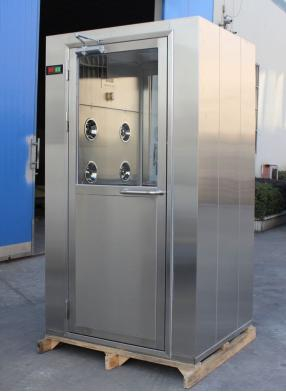

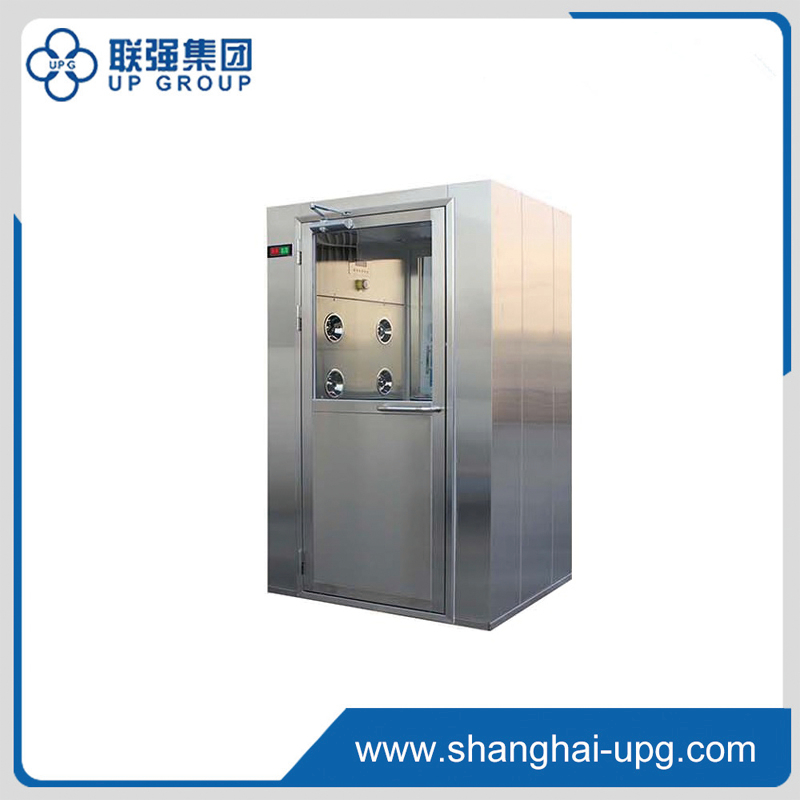

LQ-AS-S2-1500
UPG
Air Shower is important corollary equipment for super clean room and factory. It is used for cleaning dust from body and goods before entering into the clean room. At the same time, it also keeps environment clean, preventing the non-clean air enters into the clean area.
Air Shower is important corollary equipment for super clean room and factory. It is used for cleaning dust from body and goods before entering into the clean room. At the same time, it also keeps environment clean, preventing the non-clean air enters into the clean area.
Model/Name | LQ-AS-S2-1500 Air Shower |
Number of Applicable Persons | 2 Persons |
Shower Time | 0-99 Seconds (Adjustable) |
Number of Spray Nozzels | 18 Pcs(Two sides) Left and Right 9 Pcs*2 |
Diameter and Material of Spray Nozzels-Mirror Polishing | Ф30mm SUS 304 360°Rotating Direction could be adjusted |
Air Blowing Speed | >28m/s |
Pre/Middle Efficient Filter | G45(5μm)Could be replaced and clean |
High Efficient Filter | Filter partical size 99.995%@0.3μm,efficient reach static 1000 level |
Dimensions of High Efficient Filter | L820×W600×H120mm |
Number of High Efficient Filter | 2 Pcs |
Power Supply | 380V/50Hz/3 Phases (Could be made 220V/110V accordingly) |
Light and Power | 1 PC-LED Inset Light 7W |
Number of Fan Blower and Power | 2 Sets-Blowing rate:1000 m3/h Low noise fan speical use for air shower |
Fan Power | 2×0.75 kw |
Total Power | 1.50 kw |
Net Weight | 500 kg |
Overall Dimensions Thickness and Material | W1130×D1500×H2100 mm 1.2 mm SUS 304 |
Thickness and Material of Bottom Plate | 2 mm SUS 304+Welding 1.5mm SUS304 40*40 Square Tube |
Air Shower Inner Area Dimensions Thickness and Material | W680×D1400×H1960 mm 1.2 mm SUS 304 (Dull Polishing) |
Photoelectric Switch for Auto Induction | Omron-Japan Model:E3F3-R61 |
Door Closer(Manual Open and Auto Close) | Dorma-Germany Model:TS68 |
Touch Screen with PLC System | Eview-Taiwan with Password Lock |
Voice Hint System | English Version |
Toughened Glass | Thickness: 5mm with 3C Authentication |
Door Frame | Thickness: 1.5mm SUS 304 |
Door Plate | Thickness: 1.2mm SUS 304 Square Tube |
Electronic Interlock for 2 Doors | LCJ-China No.1 Brand Model: EC200 |
Control System | PLC system, auto-alarming, OTS breakdown display on the touch screen |
