LQ-AUSCP-K780A-L
UPG
Components:

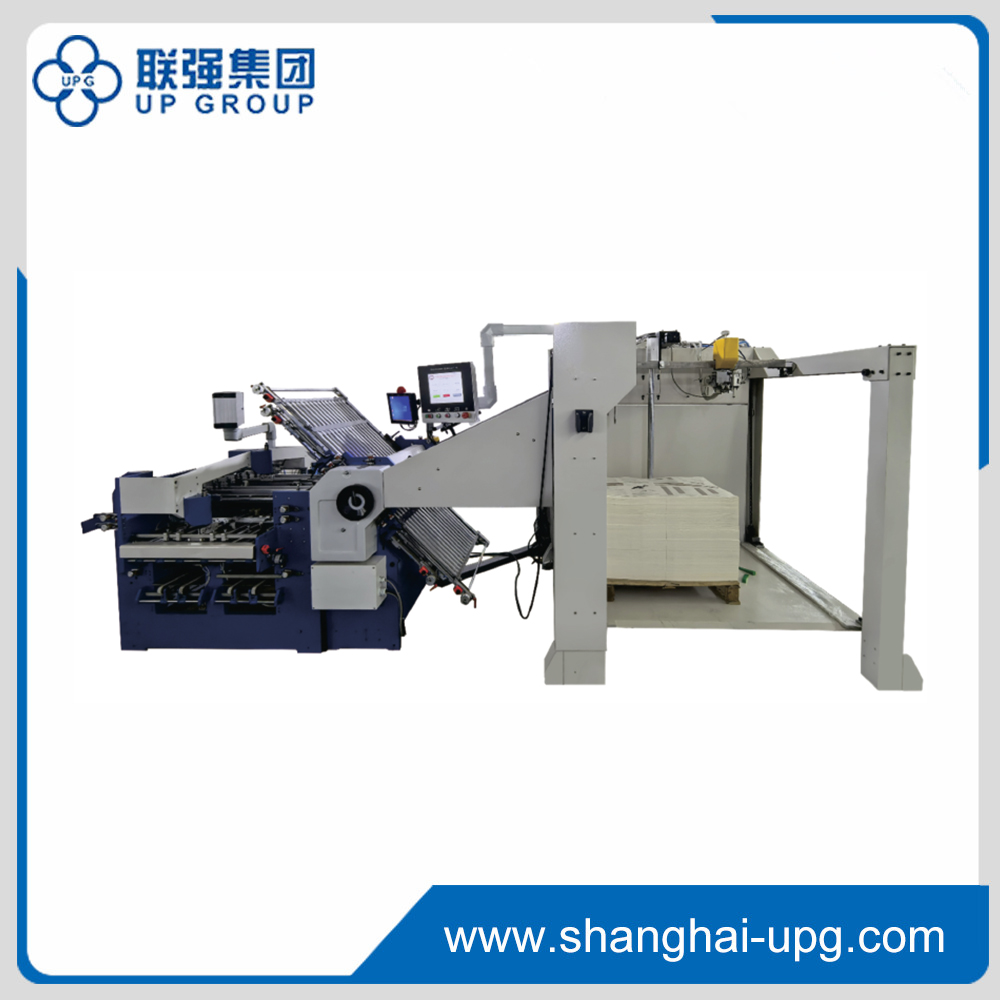

· The machine consists of a gantry-style paper feeding platform, a four-grid folding system, three independent servo-controlled folding knives, and a paper gathering (booklet collecting) unit.
Features and Functions:
· The machine features a gantry-type paper table with vertical adjustment and an automatic feeder. It employs a mixed folding system combining a four-grid folding method with three folding knives. When operating in the four-grid folding mode, the folding types available are parallel fold, accordion fold, and roll fold. When using a combination of grid and servo-controlled knives, it performs a vertical mixed four-fold. The complete machine is configured for 32-page proper/reverse folding and comes standard with a booklet collector.
· Intelligent Control System: The electrical system utilizes imported components and control systems. A PLC (programmable logic controller) manages the operation, while a variable frequency drive regulates speed. The folding knives are driven by imported servo motors and drivers, ensuring high precision and simple maintenance.
During operation, the machine monitors for double feeding and paper lams. Faults are displayed on the human-machine interface via an operator dialogue terminal, simplifying operation and accommodating various paper types within its operating range.
· Fault Detection and Protection: The paper feeding system has double-feed detection that automatically stops feeding when a double-feed is detected. If a paper jam occurs in the grid or at the folding knives, the fault detection system will automatically halt the machine.
· High-Speed Feeder: The machine is equipped with a newly developed high-speed feeder that ensures stable paper suction at a high frequency.
· Threaded Folding Rollers: The folding rollers use imported polyamide adhesive strips combined with specially manufactured steel threaded rollers, his design offers durability comparable to imported rollers and increases the paper gripping area by 75% compared to traditional straight-thread rollers.
Technical Data:
Max. Folding Paper Size | 780×1160 mm |
Min. Sheet Size | 1-buckle folding: 150×200 mm 1-buckle 1-knife folding: 200×300 mm 1-buckle 2-knife folding: 300×400 mm 1-buckle 3-knife folding: 390×540 mm |
Foldable Paper Weight Range | 40-200 g/m2 |
Max. Stacking Height | 1500 mm |
Max. Stacking Weight | 1000 kg |
First Grid Folding Range | 55-645 mm |
Buckle Quantity | 4 sets |
Vertical Folding Count | 3 times |
Folding Roller Speed Range | 75-210 m/min |
Max. Working Frequency of Folding Knife | 350 stroke/min |
Folding Speed | 210×297 parallel one folding 27000 sheets/h 540×780 parallel one folding 12000 sheets/h |
General Power: Three-phase Five Wire System | 380 V; 50 Hz |
Max. Machine Power | 7.34 kw |
Total Net Weight | 3000 kg |
