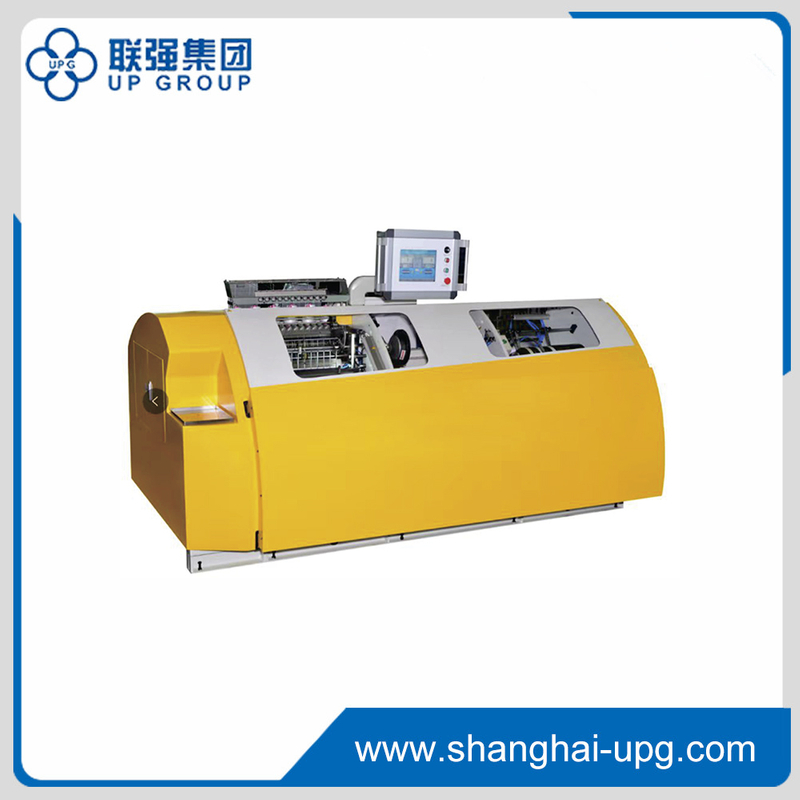

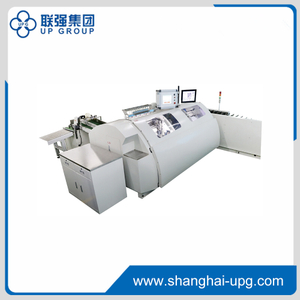

LQ-AUSCP-SX170/43
UPG
Functions & features:
1.High speed and precision: maximum speed of up to 170 signatures per minute, with three fully sealed cam control boxes filled with lubricating oil for smooth and durable operation. The flywheel accurately drives paper feeding, conveying, and saddle stitching. The book signature on the saddle is precisely positioned through synchronized belt structure with puller.
2.Intelligent debugging: Colored touchscreen monitors the entire production including paper feeding, conveying, lockstitching, and receiving ensuring the quality of lockstitching.
3.Automatic mis-sianature detection function (optional).
4.Memory storage: can store 20 different book sewing programs and recall them as needed.
5.Automatic plate adjustment: by setting the size of the signature on the touch screen and confirming the page turning method, the transmission system automatically positions the conveyor belt, opens the page turner, adjusts the position of the fixed saddle drive chain and acceleration wheel, and adjusts the height of the finished book platform. Simple and easy to learn, fast operation, and quick plate switching, which improves production efficiency
6.Signature separation: the blower and mechanical arm separate the bottom signature from the pile, and the suction cup extracts the separated signature from the feeder. The tilting device helps eliminate scratches on the surface of the signature.
7.Sub-posting: he blower and manipulator separate the boom of the book post from the pile of the book post, and the separated book post is extracted from the feeding hopper with a tooth. The book sticker tilting device helps to eliminate scratching on the surface of the book post.
8.Automatic page-turning: the page-turner is equipped with four programmable vacuum suction devices, both the upper and lower sides, which can perform 4+4 vacuum page-turning, and can handle signatures with even or uneven tops and bottoms. t can automatically flip through sets of pages, loose pages, pages without long or short edges, and unevenly thick signatures, it can also turn pages of signatures with edges over8mm long or short.
9.Signature conveying: the signature is placed on the conveying saddle after being turned and is pushed by the conveyor chain hook. The acceleration wheel sends the signature into the active lockstitch saddle, and the speed of the acceleration wheel automatically adjusts according to the speed of the machine
10.Automatic signature separation and thread cutting: the automatic signature separation and thread cutting device (cuts the excess thread to about 8-10mm for easy binding) can separate the book signatures one by one according to the setting, regardless of the number of signatures in the book.
11.Lubrication on demand: equipped with centralized oil supply lubrication system, oil pressure alarm and oil storage device. When the machine is in operation, lubricant is precisely supplied through the pipe to wherever necessary in a timely manner.
Technical Data:
Max. Operating Speed | 170 signatures/min |
Signature Size | Max: 430×320 mm Min: 120×75 mm |
Max. Number of Stitch Positions | 10 |
Stitch Distance | 19 mm |
Thread Hook Diameter | ¢16 mm |
Single Signature Thickness | 0.5-1.5 mm |
Min Signature Sewed | 2 signatures |
Page Turner Qty | 4 top + 4 bottoms |
Power Consumption | 5 kw |
Standard Voltage | 380 V/220 V, 50 Hz, 3 phases |
Air Consumption (external supply) | Max: 10m3/min at 8 bar |
Net Weight | 4000 kg |
Dimensions | 2700×1600×1700 mm |
