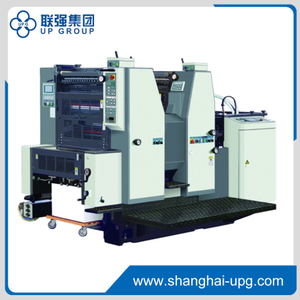

LQ-CF62II/56II/47II-NP
LQ
Introduce:
1. The machine can equipped with 3pcs of ink form roller.
2. It has cross and vertical perforate function .
3. The machine with spray powder device and Electrostatic processors.
Introduce:
1. The machine can equipped with 3pcs of ink form roller.
2. It has cross and vertical perforate function .
3. The machine with spray powder device and Electrostatic processors.
Model | Cf62II-2/NP | Cf56II-2/NP | Cf47II-2/NP |
Max printing area | 605*440 | 544*380 | 454*345 |
Max paper size | 620*450 | 560*390 | 470*365 |
Min paper size | 260*180 | 200*148 | 90*140 |
Paper type | 17g-250gsm | ||
Number of ink rollers | 14 PIECES(3 FORM ROLLERS) | ||
Number of water rollers | 4 PIECES(2 FORM ROLLERS) | ||
Register mechanism | ROLLER TYPE SIDE GUIDE | ||
Printing speed | 2000-7000 SHEET/HOUR | ||
WEIGHT | 1000KG/1200KG | 900KG/1100KG | 800KG/1000KG |
Motor Power | 1.5kw main motor, pump motor 0.55kw | ||
Voltage | 220V/50HZ(220V/60HZ OPTIONAL) |
