LQ-CFQ Deduster

This machine is used to remove the powder on the tablet after pressing machine.
Availability:
Quantity:

PDF Export

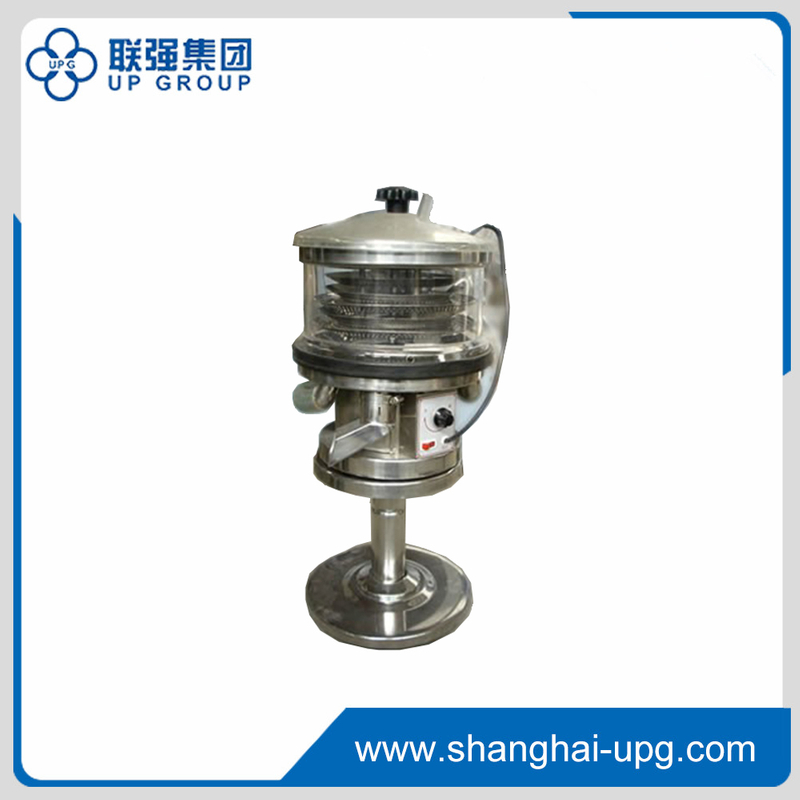

LQ-CFQ Deduster
LQ-CFQ Deduster
  • LQ-CFQ

  • UPG

Introduction:

The LQ-CFQ deduster is an auxiliary mechanism of high tablet press to remove some powder stuck on surface of tablets in pressing process. It is also equipment for conveying tablets, lump drugs, or granules without dust and can be suitable for joining with an absorber or a blower as a vacuum cleaner. It has high efficiency, better dust-free effect, lower noise, and easy maintenance. The LQ-CFQ deduster is widely used in pharmaceutical, chemical, food industry, etc.


Main characteristic:

1.Design of GMP.

2.Double layers screen structure, separating tablet & powder.

3.V-shape design for the powder-screening disk, polished efficiently.

4.Speed and amplitude adjustable.

5.Easily operating and maintaining.

6.Operating reliably and low noise.


Model

LQ-CFQ

Capacity

550000 pcs/h

Max.Noise

<82 dB

Atmospheric Pressure

0.2 MPa

Voltage

220V/50Hz/50w

Overall Dimension(L*W*H)

410mm*410mm*880mm

Net Weight

34 kg
