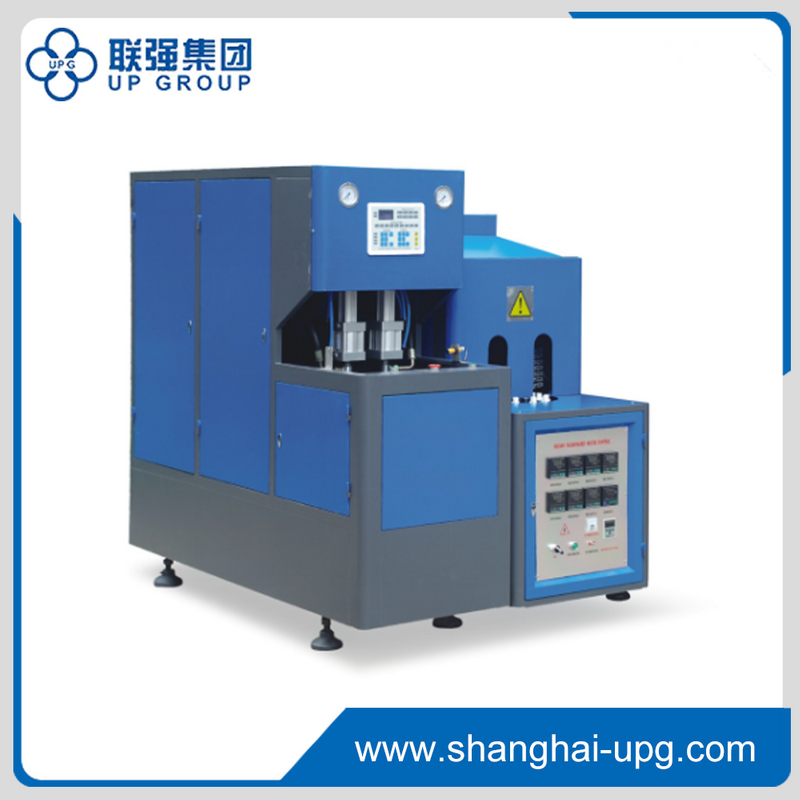

LQ-CM-8Y1 Semi-Automatic Bottle Blowing Machine

LQ-CM-8Y1 semi-automatic bottle blowing machine is suitable for producing PET plastic bottles and volume from 0.1 to 2L. It is widely applied to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle etc.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
LQ-CM-8Y1 Semi-Automatic Bottle Blowing Machine
LQ-CM-8Y1 Semi-Automatic Bottle Blowing Machine

  • LQ-CM-8Y1

  • UPG

LQ-CM-8Y1 semi-automatic bottle blowing machine is suitable for producing PET plastic bottles and volume from 0.1 to 2L. It is widely applied to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle etc.

Model LQ-CM-8Y1
Product Material PET
Volume 0.1L-2L
Theoretical Capacity 600-800PCS/H
Bottle Length 15mm-350mm
Inner Dia. Of Preform φ5mm-φ38mm
Max. Mould Plate Dimension(L x W) 350x380mm
Max. Thickness of Mould 180mm
Mould Opening Stroke 160mm
Heater Dimension(L x W x H) 1870x630x1450mm
Heater Weight 250Kg
Power 17.5kw
 Overall Dimensions(L x W x H) 1600x600x1610mm
Main Machine Weight 500Kg


Previous:
Next:

Related Products

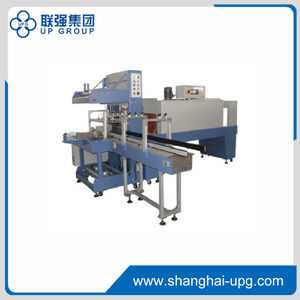

LQ-XKS-2 Automatic Sleeve Shrink Wrapping Machine
