LQ-DPB
UPG

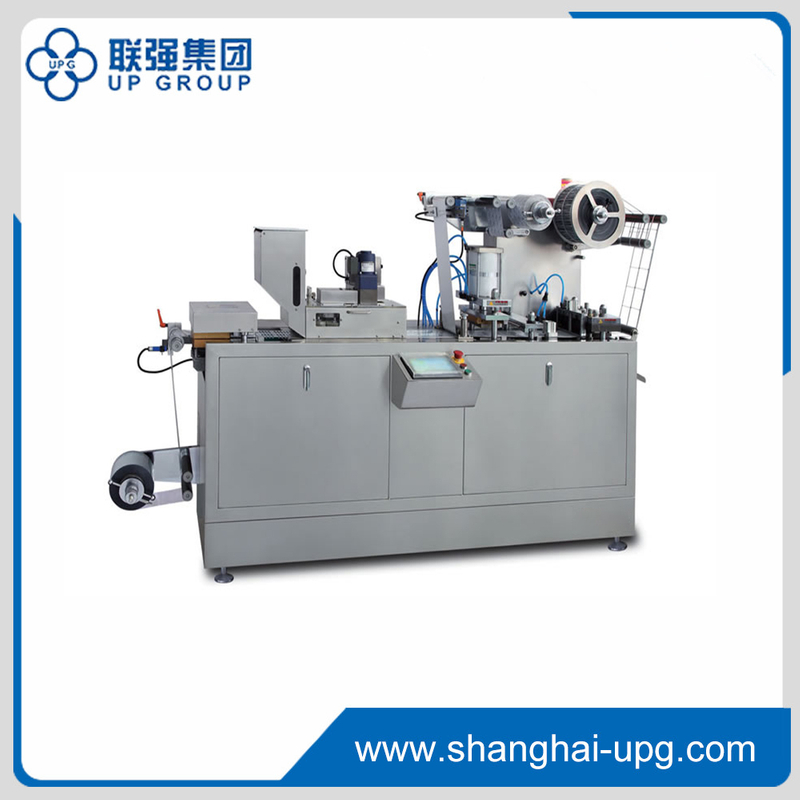

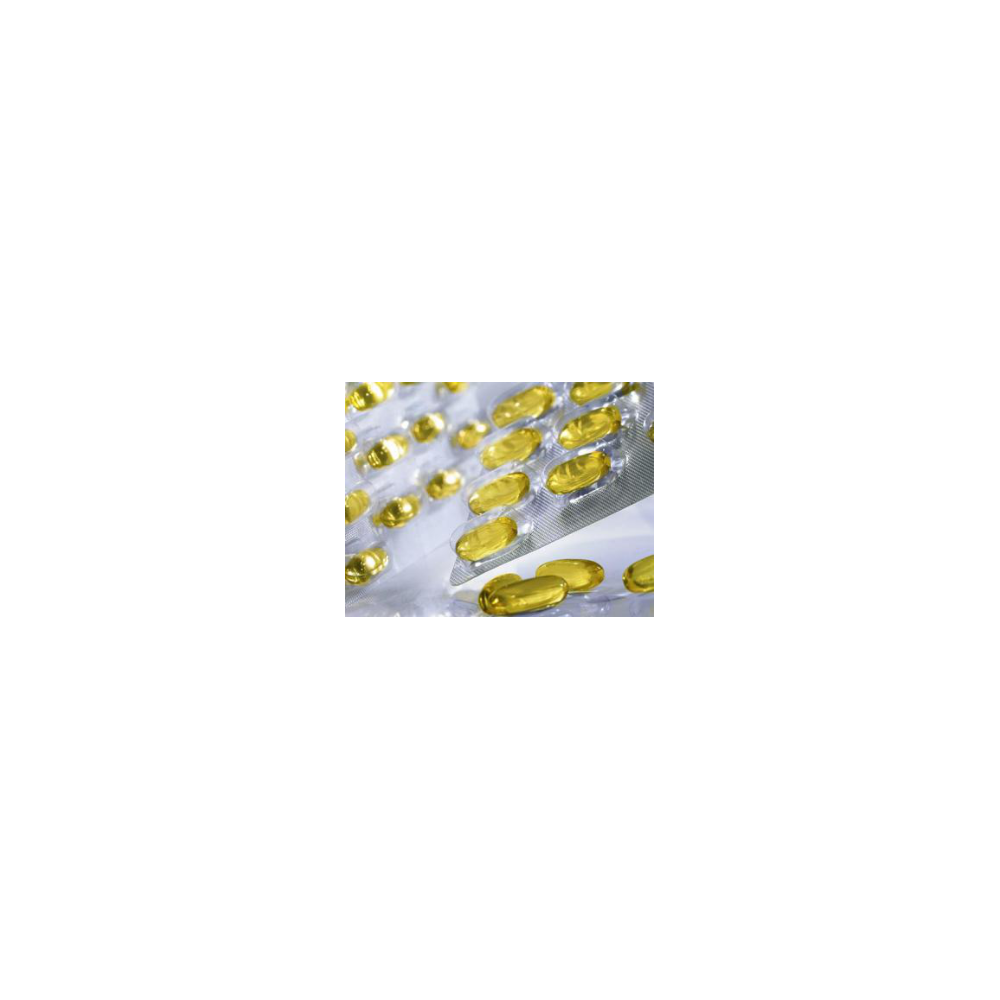

The machine is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory and featured by compact machine body, easy operation, multi-function, adjusting stroke. It is suitable for ALU-ALU and ALU-PVC package of medicine, food, electric parts etc.
The machine is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory and featured by compact machine body, easy operation, multi-function, adjusting stroke. It is suitable for ALU-ALU and ALU-PVC package of medicine, food, electric parts etc.
Model | LQ-DPB100 | LQ-DPB140 | LQ-DPB-250 |
Punch Frequency | 8-35 times/min | 8-35 times/min | 6-60 times/min |
Capacity | 2100 blisters/h | 4200 blisters/h | 9600-12000 blisters/h |
(Standard 80*57mm) | (Standard 80*57mm) | (Standard 80*57mm) | |
Max Forming Area And Depth | 105*60*20 mm | 130*110*20 mm | 250*110*10 mm - 250*200*50 mm |
Stroke Range | 20-70 mm | 20-120 mm | 20-120 mm |
Standard Blister | 80*57、80*35、95*65、105*42、105*55 mm | 80*57 mm | |
can be designed as user's requirements) | (can be designed as user's requirements) | ||
Air Supply | 0.5Mpa-0.7Mpa 0.15m³/min | 0.6-0.8Mpa 0.15m³/min | |
Total Power | 380V or 220V/50Hz/1.8kw | 380V or 220V/50Hz/3.2kw | 380V or 220V/50Hz/6kw |
Main Motor Power | 0.55kw | 0.75kw | 1.5kw |
PVC Hard Pieces | (0.15-0.5)*115mm | (0.15-0.5)*140mm | (0.15-0.5)*260mm |
PTP Aluminum Foil | (0.02-0.035)*115mm | (0.02-0.035)*140mm | (0.02-0.35)*260mm |
Dialytic Paper | (50-100)g/m2*115mm | (50-100)g/m2*140mm | (50-100)g/m2*260mm |
Mould Cooling | Tap water or recycled water | ||
Overall Dimension (L*W*H) | 1600*500*1200mm | 2300*560*1410mm | 3000*720*1600mm |
Weight | 600kg | 1000kg | 1700kg |
Model | LQ-DPB100 | LQ-DPB140 | LQ-DPB-250 |
Punch Frequency | 8-35 times/min | 8-35 times/min | 6-60 times/min |
Capacity | 2100 blisters/h | 4200 blisters/h | 9600-12000 blisters/h |
(Standard 80*57mm) | (Standard 80*57mm) | ( Standard 80*57mm) | |
Max Forming Area And Depth | 105*60*20mm | 130*110*20mm | 250*110*10mm-250*200*50mm |
Stroke Range | 20-70mm | 20-120mm | 20-120mm |
Standard Blister | 80*57、80*35、95*65、105*42、105*55mm | 80*57m | |
can be designed as user's requirements) | (can be designed as user's requirements) | ||
Air Supply | 0.5Mpa-0.7Mpa, 0.15m3/min | 0.6-0.8Mpa, 0.3m3/min | |
Total Power | 380V or 220V, 50Hz, 1.8kw | 380V or 220V, 50Hz, 3.2kw | 380V or 220V, 50Hz, 6kw |
Main Motor Power | 0.55kw | 0.75kw | 1.5kw |
PVC Hard Pieces | (0.15-0.5)*115mm | (0.15-0.5)*140mm | (0.15-0.5)*260mm |
PTP Aluminum Foil | (0.02-0.035)*115mm | (0.02-0.035)*140mm | (0.02-0.35)*260mm |
Dialytic Paper | (50-100)g/m2*115mm | (50-100)g/m2*140mm | (50-100)g/m2*260mm |
Mould Cooling | Tap water or recycled water | ||
Overall Dimension | 1600*500*1200mm | 2300*560*1410mm | 3000*720*1600mm |
Weight | 600kg | 1000kg | 1700kg |
