LQ-FZ-310AS
UPG
Product Features:

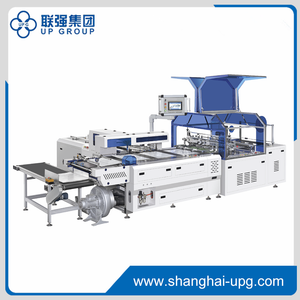

Full intelligent bagging machine specialized equipment, this machine is used to produce A4/A3paper specifications, with a material gsm range of 70-100gsm.
The machine features functions such as cutting, stacking, conveying, bagging, roll-fed OPP bag making, self-adhesive sealing, weighing and labeling, and stacker for finished products. The overall operation is controlled by a modern motion module controller with a PLC multi-axis servo system, enabling the PLC to memorize specifications and size data. Remote control facilitates easy and quick debugging of data. The structure is simple and rational, ensuring accurate and fast positioning, with automatic conveying and stacking of finished products.
The slitting machine is suitable for cutting various office papers, high-gloss photo papers, and paper-plastic composite roll packaging materials. This machine adopts PLC touchscreen control, with servomotor control for cutting to fixed lengths. The transmission system integrates pneumatic and photoelectric sensors for centralized control, combining light, electricity, and gas into one unit. It is easy to operate, with high cutting precision, mechanical stability, and low noise. The motor features variable frequency speed regulation, automatic counting, alarm stop, and magnetic powder tension control. It can perform multi-section longitudinal slitting, with automatic waste edge removal by fan. It can simultaneously cut multiple rolls horizontally and vertically, and can be equipped with a packaging machine for automatic inline packaging.
Technical parameters:
Max. Speed | 20-40 bag/min |
Max. Size of Packing | 300×420 mm |
Min. Size of Packing | 150×150 mm |
Thickness of Packing | 2-30 mm |
Film Thickness | 0.03-0.06 mm |
Max. Diameter of Film | 420 mm |
OPP Film Specification | Max: 330×420 mm Min: 158×150 mm |
Motor Power | 8 kw |
Machine Weight | 2300 kg |
Dimension of Machine | 4500×3200×1650 mm |
Total Pocket Width of Both Sides | ±7-8 mm |
Model | HQJ-1100A4 | HQJ-1400A4 |
Max. Diameter of Raw Material | Ф1400 mm | Ф1400 mm |
Max. Width of Raw Material | 1100 mm | 1400 mm |
Cutting Parameter | Speed: ≤200 times/min; Precision: ±0.2mm | |
Total Power | 26 kw | 29 kw |
Weight | 10000 kg | 12000 kg |
Size | 19300×7900×2000 mm | 19300×8500×2000 mm |
Model | A4/A3-20 |
Production Speed | 8 Reams/min |
Specification of Packed Object | 210×297×20 mm 300×400×20 mm (based on 100-200 pieces height of copier paper) |
Power Supply | 380 V/ 50 HZ, 3Phases 4Wires |
Main Motor Power | 2.25 kw |
Compressed Air | 0.6 Mpa |
Overwrapping Paper Size (L×W) | Max: 560×386 mm Min: 550×386 mm |
Overall Dimension | 4530×3050×1750mm |
Weight | 12.5 t |
