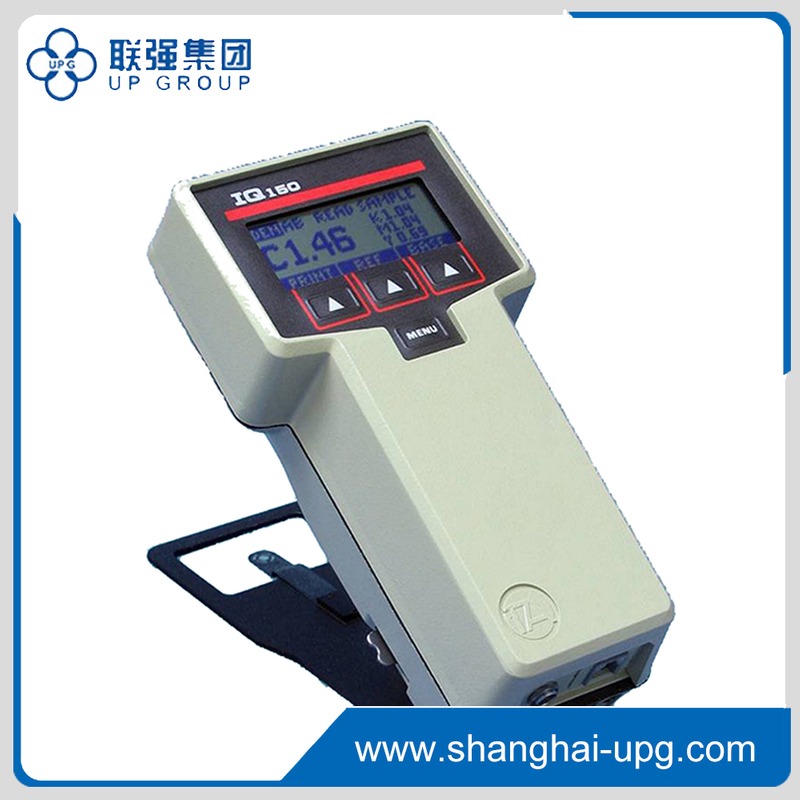

LQ-IQ150/200 Densitometer

The LQ-IQ 150/200 Densitometer is engineered with the latest in software technology and is so easy to use that the operator’s manual isn’t even needed! Yet, these affordable densitometers fulfill your press quality control needs with precision. The sophisticated optical system was designed for accurate and repeatable density readings of 3mm colorbar targets. A small aperture optical system is also available for measuring narrow colorbars down to 1.6mm.

Quantity:
  • LQ-IQ150/200
  • UPG

    Features

Portable Type

 Small and light weight

Easy Operation

Menu-based operation screens with soft menu keys.

Graphic LCD

Large-sized graphic LCD

Small Aperture available

For reading colorbars as narrow as 1/16” (1.5mm)

External Communication Function

RS232

Quick Calibration

It takes seconds to calibrate.



Specificton:

Filter Response


Status T or E

Measuring Range


Density 0.00D-2.50D

Dot Area 0%-100%


Aperture Diameter


3.0mm (1.6mm optional)


Display


Supertwist liquid crystal

(32x80 dots)


Power Supply


7.6V rechargeable Battery

Pack

Warm up Time


None

Operating Temperature


41°F-104°F (5°C-40°C)

Dimension


7.5x4x3.25 in.

(190x102x82mm)

MeasLight Source


Gas fillGas filled tungsten lamp

Measuring Geometry


0°/45° ANSI PH2.18

Repeatability


±0.01D

Accuracy


±0.02D

Recharge Time


14 hours

Weight


1.75 lbs (800g)

Data Output Port


RS-232

Output Connector


RJ11

Software Control Functionsuring Geometry

Zero and gain calibration Independent slope control Serial baud rate (300-19200) Serial data format

Automatic handshake selection

Measurement Functions


Density

Density Difference

Dot area (Murray-Davies or Yule-Nielsen)

Dot Gain Trap (IQ 200)

Hue Error (IQ 200)

Grayness (IQ 200)

Standard Accessories

Instruction manual

4/C Calibration Standard Serial interface cable

A.C. adapter/charger Carrying case
