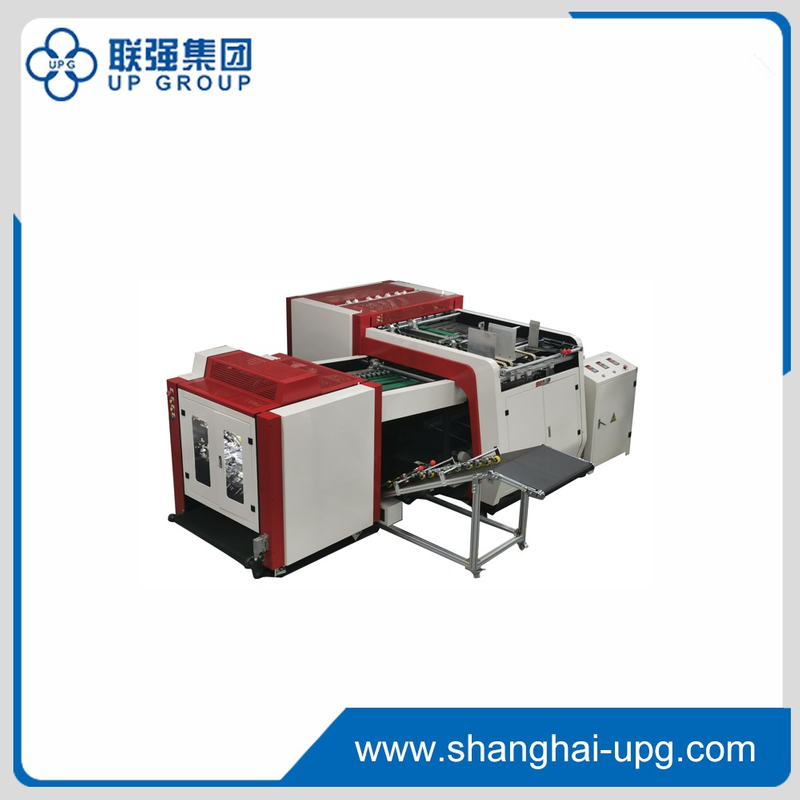

LQ-KLQ-600 automatic bidirectional grooving machine

This machine can able to cut out the crosswise and lengthwise v- groove (u-groove) on the board by once feeding.   It’s suitable for various of hard cover and  Lid and base boxes ,include Mobile phone boxes,shoe boxes,cosmetic boxes,rigid boxes,etc .

Availability:
Quantity:
  • LQ-KLQ-600

  • UPG

Advantages :

The machine is mainly include 4 parts : first grooving part ,collecting & conveying part , second grooving part ,dedicated conveyor belt for delivery final cardboard .

Use longer aligning device and collecting & conveying part to ensure that the cardboard go straight into each grooving parts,then improve the grooving accuracy ,to avoid the high and low corners of box by poor grooving accuracy .

Improve product quality, improve production efficiency, saves labor .


Material   Width

100-600mm

Material   Length

100-600mm

Material   thickness

1.5-3.0mm

Normal   grooving accuracy

±0.15mm

The   highest grooving accuracy

±0.1mm

Grooving   angle

80-140degree   adjustable

Grooving   tool on the first step

8sets

Grooving   tool on the second step

4sets

Big   Drum number

3

Machine   power

6KW

The   fastest speed

30-32M/Min (300*300)   150PCS/Min

Normal   speed

20-25M/min   (300*300) 130PCS/Min

Main   dimension

2635*3900*1350mm

Function   : 1 Auto feeding →crosswise grooving →collecting →conveying →lengthwise   grooving→Auto collector
