LQ-LF-45
UPG
Introduction：

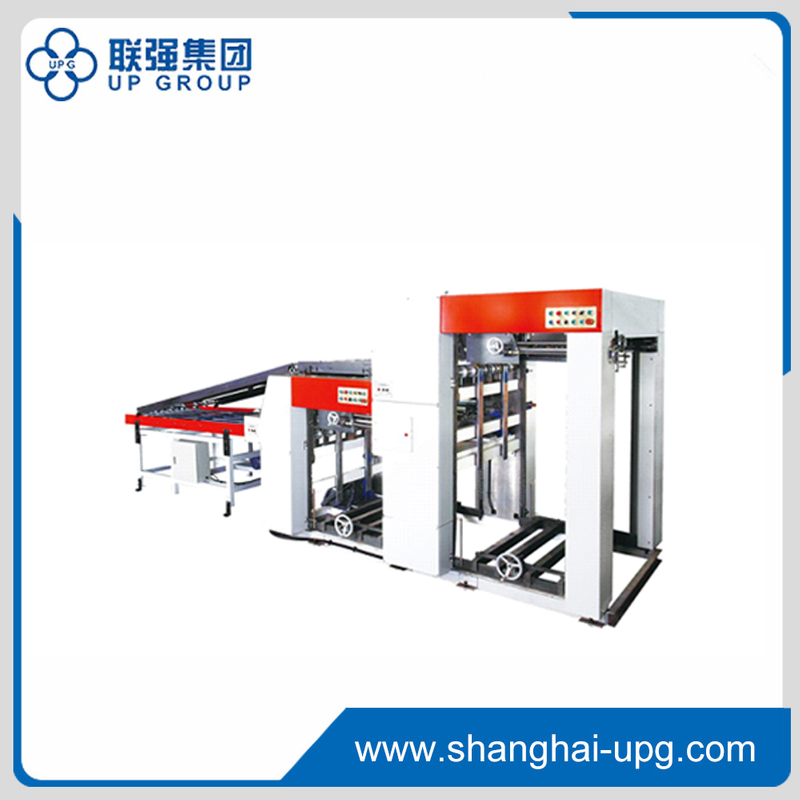

LQ-LF45 sheet metal continuous feeder is the product which researched and developed by ourselves based on the market research and developed by ourselves based on the market research and experience of foreign successful cases, which filled the gap in China. Because the usage of a double box feeding, it achieves the continuous production equipment to achieve the purpose of energy saving and improve work efficiency, the operation of the machine only a file of staff, but also saves labor costs, so the product is the first equipment for printing, coating, Film, inspection equipment etc.
Technical Parameter：
Max. sheet size | 1145×965mm |
Min. sheet size | 712×508mm |
Sheet thickness | 0.16-0.5mm |
Max. stack height | 500mm |
Max. stack weight | 2.5t |
Max. speed | 5000pcs/hour |
Main motor power | 4.5×2kw |
Motor power | 25kw |
Machine dimensions(L×W×H) | 10700×3830×2710mm |
Net weight | 4500kg |
Introduction：
LQ-LF45 sheet metal continuous feeder is the product which researched and developed by ourselves based on the market research and developed by ourselves based on the market research and experience of foreign successful cases, which filled the gap in China. Because the usage of a double box feeding, it achieves the continuous production equipment to achieve the purpose of energy saving and improve work efficiency, the operation of the machine only a file of staff, but also saves labor costs, so the product is the first equipment for printing, coating, Film, inspection equipment etc.
Technical Parameter：
Max. sheet size | 1145×965mm |
Min. sheet size | 712×508mm |
Sheet thickness | 0.16-0.5mm |
Max. stack height | 500mm |
Max. stack weight | 2.5t |
Max. speed | 5000pcs/hour |
Main motor power | 4.5×2kw |
Motor power | 25kw |
Machine dimensions(L×W×H) | 10700×3830×2710mm |
Net weight | 4500kg |
