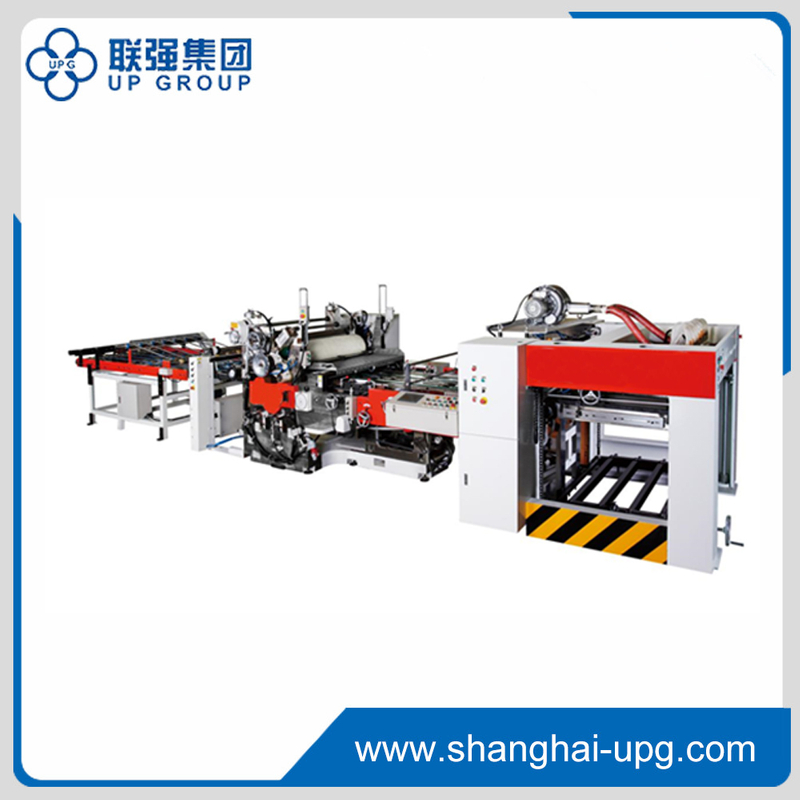

LQ-TL-50
UPG
Introduction：
LQ-TL-50 metal sheet coating machine is a high-precision, automatic coating machine with vertical and horizontal blanking function, which is suitable for primer coating or varnishing on tinplate, aluminum and other metal sheets, is one of necessary equipment for enterprises.
Technical Parameter：
Max. Coating speed | 6000p/h |
Max. Metal sheet size | 1200×1000mm |
Min. Metal street size | 712×508mm |
Metal sheet thickness | 0.16-0.6mm |
Rubber roller diameter | ∅350-360mm（full coating） |
Impression roller | ∅220mm |
Diameter | ∅200mm |
Main motot power | 7.5kw |
Machine net weight | 7500kg |
Machine size(L×W×H)
| 8985×2490×1950mm （with inspection table） 6260×2490×1950mm （without inspection table） |
Introduction：
LQ-TL-50 metal sheet coating machine is a high-precision, automatic coating machine with vertical and horizontal blanking function, which is suitable for primer coating or varnishing on tinplate, aluminum and other metal sheets, is one of necessary equipment for enterprises.
Technical Parameter：
Max. Coating speed | 6000p/h |
Max. Metal sheet size | 1200×1000mm |
Min. Metal street size | 712×508mm |
Metal sheet thickness | 0.16-0.6mm |
Rubber roller diameter | ∅350-360mm（full coating） |
Impression roller | ∅220mm |
Diameter | ∅200mm |
Main motot power | 7.5kw |
Machine net weight | 7500kg |
Machine size(L×W×H)
| 8985×2490×1950mm （with inspection table） 6260×2490×1950mm （without inspection table） |
