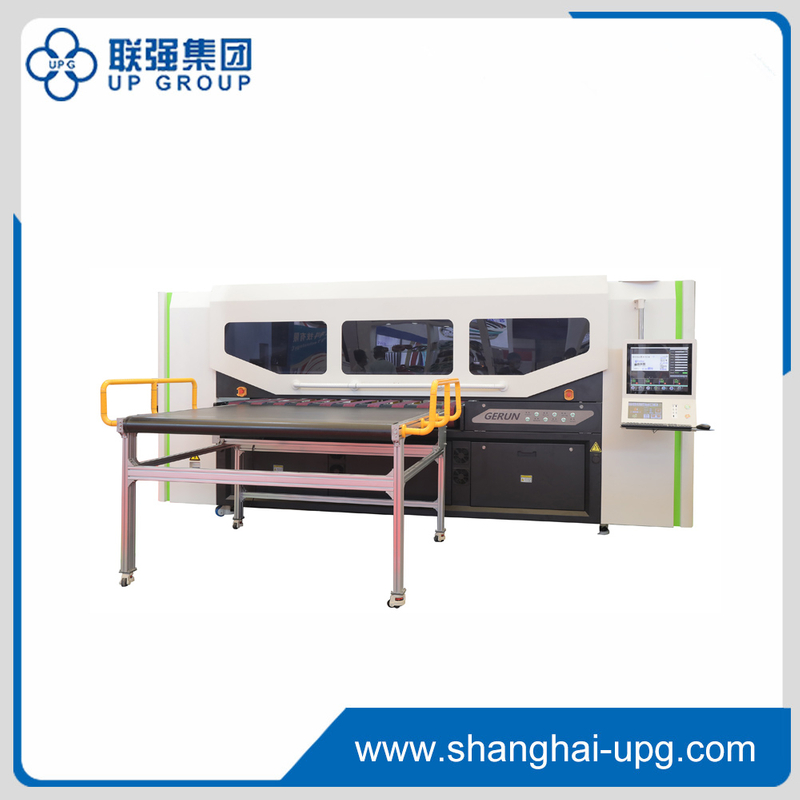

LQ-MD 1824 Single Pass Corrgated Box Printing Machinery

  • LQ-MD 1824

  • UPG

  • LQ-MD 1824


1. Single Pass: Single pass which has smooth printing process with 1m/s non-stop printing to meet large-batch order.

2. High Efficiency: Intelligent sensor system, realizing automatic feeding and taking,improving the work efficiency.

3. High Precision: Using Epson water-based piezo printhead with highest printing resolution of 900*600dpi.

4. Eco-friendly printing: Using water-based ink which is perfect for food & beverage packaging. No need to clean machine when changing, Single Pass high-speed printing uses four primary color inkjet printing technology without washing machine.

5. Fast delivery: No plates required, click-to-print and no need for heating.

6. Saving manpower: Single Pass high-speed printing saves time through adopting drawing and color matching by computer on demand that just needs one operator.


1. The machine uses Siemens PLC control system, which can ensure the accuracy of material transfer in carton printing process.

2. The machine uses Panasonic servo motor, which ensures the stability of printing, and longer service life.

3. The machine is equipped with Dell industrial embedded PC with high configuration and strong anti-interference ability, which makes printing more smooth.

4. The machine uses Omron photoelectric sensor, which makes the corrugated carton have precise positioning and stable transmission.

5. The machine uses Yadeke cylinder , which makes the roller lifting stable and the multi-cylinder coordination harmonious.

ModelLQ-MD 1824
Rip Software Rip Maintop
Picture Format TIFF, JPG, PDF, PNG
Print Head EPSON Industrial ALL-MEMS Print Head
No.s of Print Head 24
Ink type and color CMYK Water Based Ink
Max. Printing Width 800mm
Media Thickness 0.5~20mm
Printing resolution
Max. Printing Speed
2.7m/s (200×600dpi)
1.8m/s (300×600dpi)
0.9m/s 600×600dpi)
0.6m/s (900×600dpi)
Min. Feeding Width 350×450mm without scoring
350×660mm with scoring
Max. Feeding Width Standard 1800mm
Feeding Mode Auto feeding
Working Environment 18~30℃, humidity: 50-70%
Electric voltage220V土10%, 50/ 60Hz
Total Power 15kw, AC380V, 50~60Hz
Printer size4310×5160×1980mm
Printer weight 2500kg
