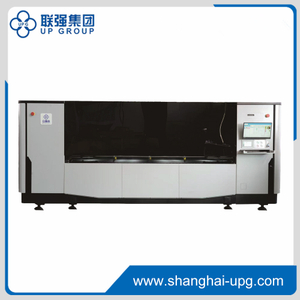

LQ-MD 230S Digital Packaging Printer

Sheet feeder: Suitable for 100-500 gsm media; Anti double sheets device.
Individual ink channel: Realize accurate ink control; Improve huge ink coverage performance.
Auto maintenance: Auto maintenance before and after printing; Guarantee well printing condition all the time; Prolong printhead lifetime.
Adjustable platform: Max 40mm height adjustable; Suction platform avoid displacement.
Water based ink:1L /color large ink tank; Pigment and dye ink available.
Single pass technology: 8-19m/min printing speed; 1200x1200/ 1200x600 dpi selectable.

Availability:

Quantity:



Inquire Add to Basket PDF Export

Model:
LQ-MD 230S
Brand:
UPG
Code:
LQ-MD 230S

Technical Specification

Model	LQ-MD 230S
Printing resolution	1200x1200/1200x600 dpi
Printing speed	8-19m/min
Ink type and color	Dye ink (CMYK)
Max. Printing width	214 mm
Max. Feeding height	40 mm
Suitable media thickness	80-350 mm
Power	220V,50/60Hz,2800W
Dimension	1750x1200x1700 mm
Weight	500 kg
