LQ-Mini-ABA
UPG
Usage & Characteristic:

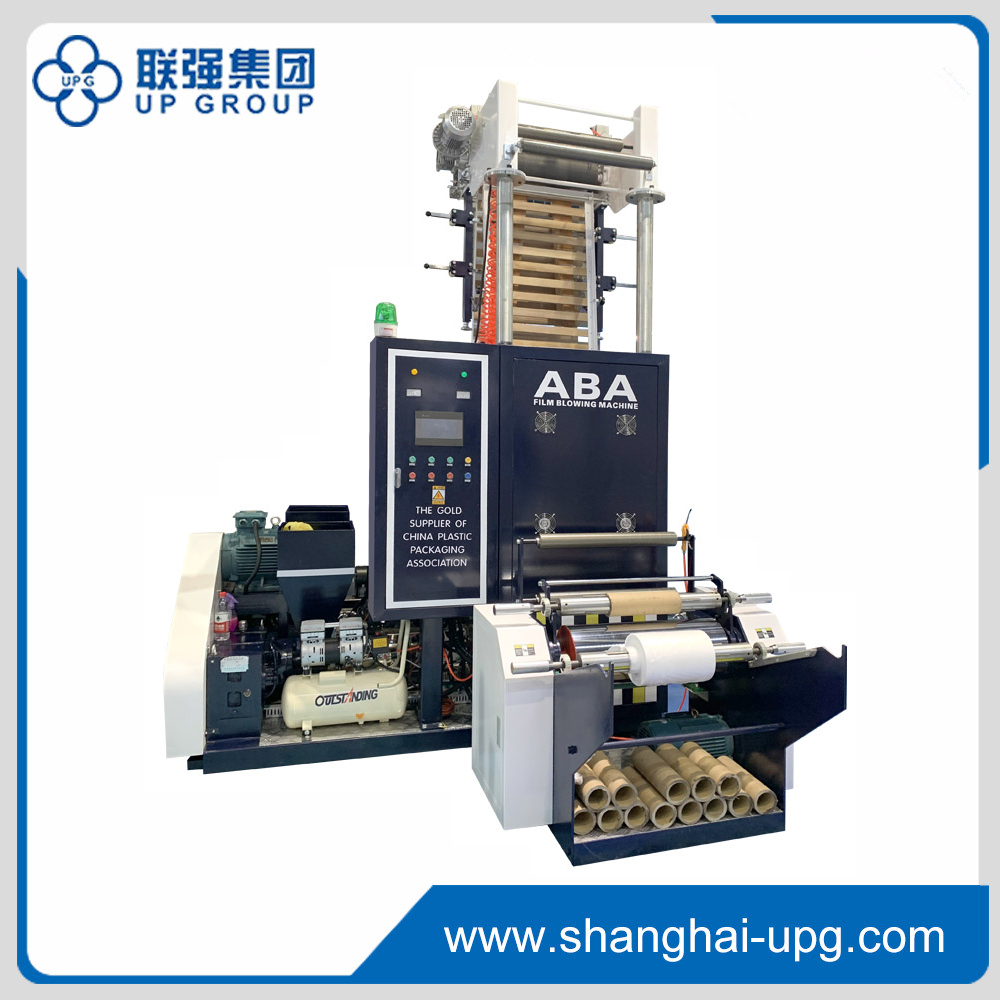

Mini type film blowing machine can largely save energy, labor, workshop space, etc. The extruding, cylinder, screws are made of quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision processing. The specially designed screw ensures output and good plasticization. It is suitable for blowing low density polyethylene (LDPE) and high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) plastic film, which is widely used in the packing food, clothing, bags, vest bags and etc.
Optional equipment:
1. Auto loader
2. Corona treater
3. Die rotary device
4. Dosing device
5. High speed net changer
Technical parameters:
Model | LQ-Mini-600ABA | LQ-Mini-800ABA |
Screw diameter | Φ45mm×2 | Φ50mm×2 |
Screw ratio | L/D30:1 | L/D30:1 |
Screw speed | 10-100r/min | 10-100r/min |
Power of main motor | 11kw×2 | 15kw×2 |
Max.Extrusion output | 40-80kg/h | 50-100kg/h |
Thickness of film | 0.008-0.10mm | 0.008-0.10mm |
Max.Folding width of film | 600mm | 800mm |
Total power | 55kw | 68kw |
Overall dimension(L×W×H) | 3.0×1.8×3.9m | 3.2×2.0×4.2m |
Weight of machine | 2.5T | 3T |
Company Profile:
Superior:
A trading brand enterprise which is invested by industry and joint industry and trade.
ShangHai UPG International Industry & Trade Group Co., Ltd. is a professional trading company which is invested by UP Group's key branch enterprises together, the company has become the most active and influential brand in the printing and packaging machinery industry in China.
We own high efficiency, high quality, stable and professional trade working team.
In the long-term practice of trading, we foster and establish a multilingual, professional, high diathesis and qualification staff team, which form the biggest and most powerful trading enterprises in this industry. Among our working team, 97% obtain the associate degree and bachelor degree, 40% own intermediate level professional titles, master degree or above.
We adhere the philosophy that "over-value service, pioneering and pragmatic, and Win-win cooperation".
We start from innovation system, improve the institutional mechanism, gradually cultivating and forming a value pursuit, and enterprise culture which specialize in "Honest and trustworthy, Diligent and promising, Pursue excellence and efficiency, over-value service". We always ensure the quality of the products and service, establish long-term and stable relations of cooperation with domestic suppliers as well as our foreign customers for mutual benefits.
Superiority of abundant resource, matching into a line, high optionality.
We centred on printing machinery manufacturing and have established long term strategic collaborations with more than 50 cost-effective, high quality and reputation brand enterprises and factories, which cover printing and packaging, food and pharmaceutical packaging, printing consumables and rubber& plastic machinery, and form a multi-category, multispecies and multilevel integrated superiority and provide a convenient service channel for foreign customers.
Well planned, high input, extensive coverage exhibition publicity.
The huge investment of more than 20 international professional exhibitions and more than one billion sales amount per year make our company known overseas and be of high reputation in domestic and abroad market.
Strengthen channel building, service to global customers, multiple trading strategic pattern.
Through several years' effort, we have exported products to more than 80 countries (not only Asia but also Europe, Africa, South America, North America and Oceania) and have established long term strategic collaborations with distributors and sales channels in more than 40 countries and regions, which play an important role for open foreign market and maintain service terminal clients.
Our Customers:
Exhibitions:
Export Markets:
UP Group's products have been exported to more than 80 countries.
In Southeast Asia, its products cover Thailand, Indonesia, Singapore, Malaysia, Brunei, the Philippines, Japan, Korea, Vietnam, Cambodia, India, Sri Lanka, Nepal, Dubai, Kuwait, Saudi, Syria, Lebanon, Maldives, Bahrain, Jordan, Sudan, Mongolia, Myanmar, Pakistan, Iran, Turkey and Bangladesh.
In European, its products cover Australia, New Zealand, Britain, France, Germany, Italy, Spain, Portugal, Georgians, Slovakia Finland, Poland, the Czech Republic, Russia, Ukraine, Belarus, Kazakhstan, Uzbekistan, Sweden, Bosnia, Herzegovina and Albania
In Africa, its products cover South Africa, Kenya, Ethiopia, Egypt, Morocco, Algeria, Tunisia, Madagascar, Mauritius, Nigeria, Ivory Coast, Ghana, Mali, Liberia and Cameroon.
In America, its products cover The United States, Canada, Mexico, Panama, Costa Rica, Brazil, Argentina, Columbia, Bolivia, Uruguay, Paraguay, Chile, Peru, Ecuador and Honduras.
Among these regions, we have more than 46 stable distributors and partners for many years.
Packaging and Shipping:
Our Services:
Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.
In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.
After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.
Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.
