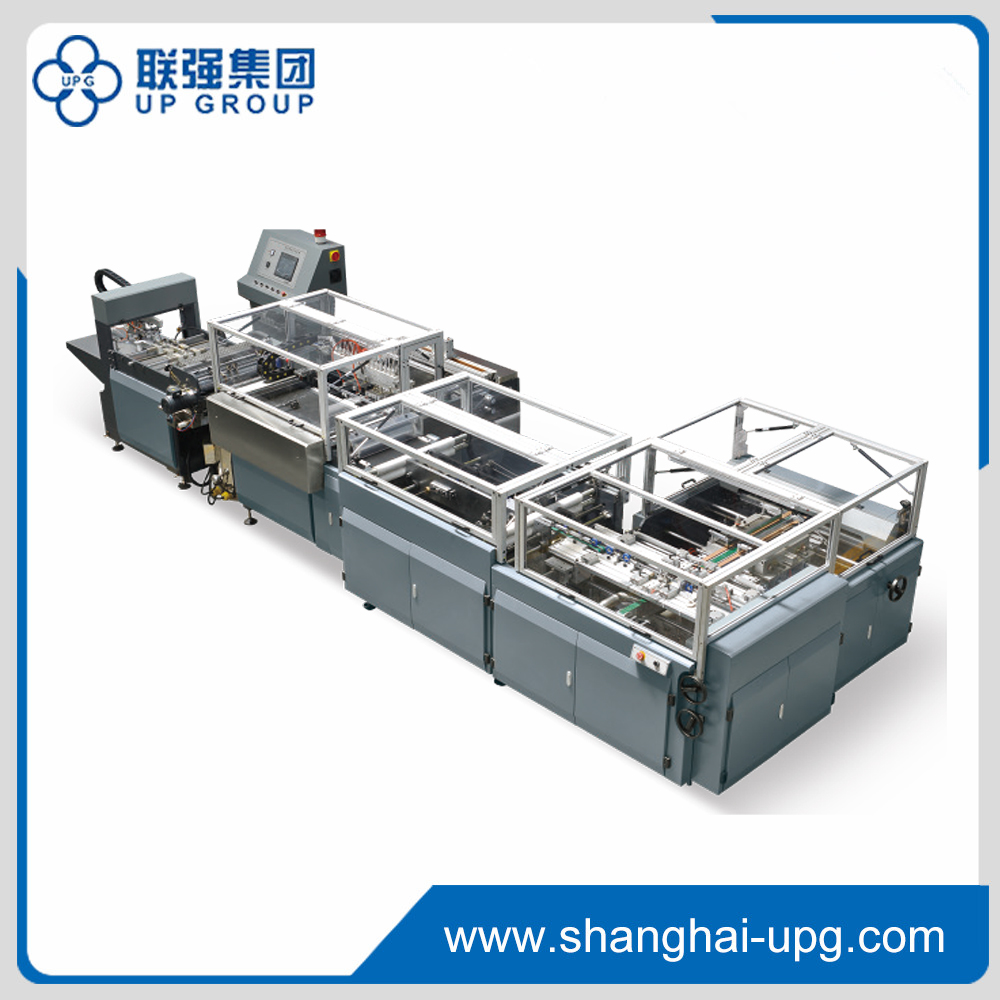

LQ-QFM-460G/600G
UPG
It adopts unique development philosophy to solve problems including getting dirty and scratching. Through belt-oriented chaff transmission system developed by unique professional technique, sucker manipulator transmits product onto vaccuum air-transmission conveyor belt for transmission which can avoid phenomenon including surface occuring getting dirty and scratching to meet requirement for high-quality products.
It adopts unique development philosophy to solve problems including getting dirty and scratching. Through belt-oriented chaff transmission system developed by unique professional technique, sucker manipulator transmits product onto vaccuum air-transmission conveyor belt for transmission which can avoid phenomenon including surface occuring getting dirty and scratching to meet requirement for high-quality products.
Model | LQ-QFM 460G | LQ-QFM 600G |
Length of paper | 190-830mm | 190-1030mm |
Width of paper | 100-460mm | 100-630mm |
Thickness of paper | 80~200g/m² | 80~200g/m² |
Thickness of cardboard | 1-3mm | 1-3mm |
Min width of spine | 8mm | 8mm |
Long-side Position precision | ≤±0.25mm | ≤±0.3mm |
Short-side Position precision | ≤±0.3mm | ≤±0.3mm |
Speed | 0-32pcs/min | 0-32pcs/min |
Power | 12kw | 13kw |
Weight | 3500kg | 4500kg |
Dimension | L7800×W2100×H1550mm | L8900×W2250×H1550mm |
