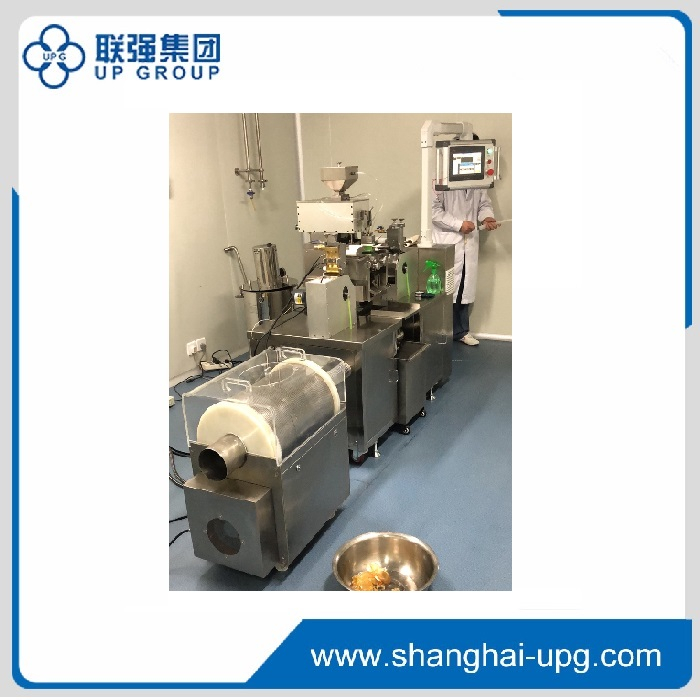

This production line consists of main machine, conveyor, drier, electric control box, heat preservation gelatin tank and feeding device. The primary equipment is the main machine.
| Availability: | |
|---|---|
| Quantity: | |
LQ-RJN-50
This production line consists of main machine, conveyor, drier, electric control box, heat preservation gelatin tank and feeding device. The primary equipment is the main machine.
This production line consists of main machine, conveyor, drier, electric control box, heat preservation gelatin tank and feeding device. The primary equipment is the main machine.

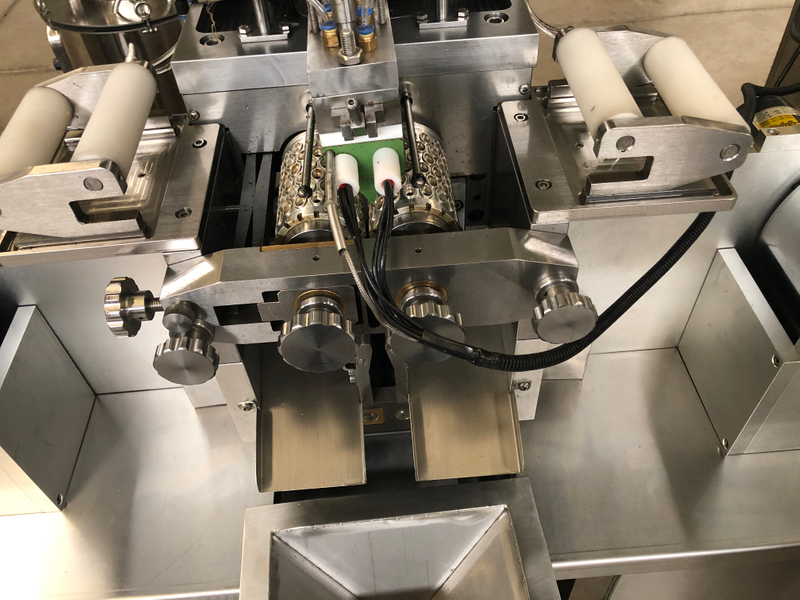

1. Main machine：
Speed | 5000-10000 capsules/hour (considering about 500mg soft capsule. The speed depends on the capsule size.) |
Rotating speed of die roller | 0-5rpm (adjustment with frequency inverter) |
Fill weight variation | ≤±1％ (considering about oil product) |
Feeding quantity of each piston of the feeding pump | 0～1.5mL（standard） |

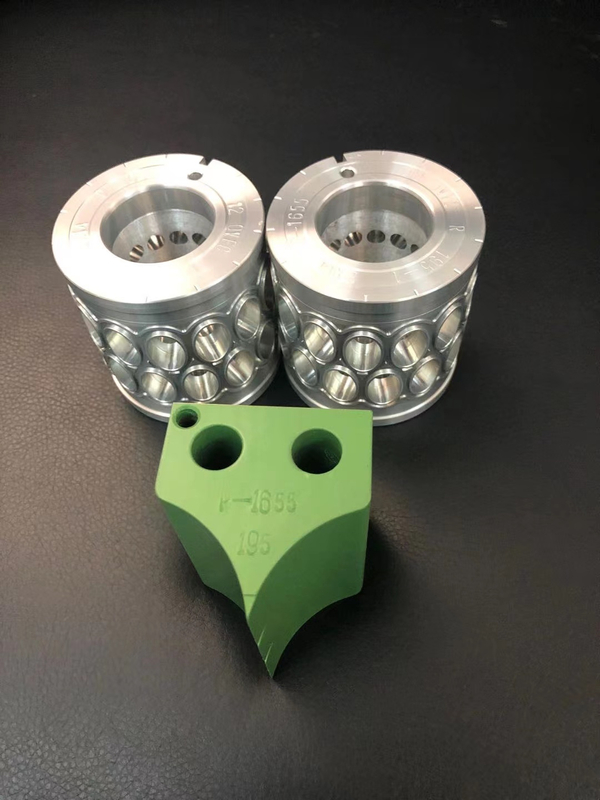

Roll size | Φ64×65mm |
Machine power | 1.5kw |
2. Drier：
Quantity of tumbler | 1 section |
Tumbler size | φ320×450 mm |
Tumbler rotating speed | 1.6rpm |
Machine power | 0.4kw |
Fan motor power | 0.04 kW |

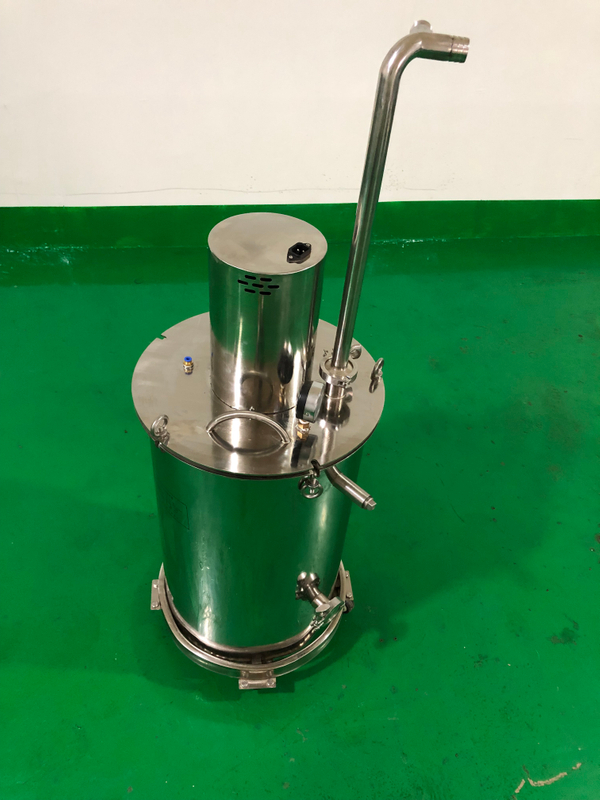

3. Pneumatic heat preservation tank：
Storage quantity | 30 L |
Pressure in barrel | -0.09MPa ~ +0.06MPa |
Electric heater power | 1.5kw |
Stirring power | 0.1 kw |
4. Tray:
Trolley | 755mm×550mm×100mm |
Tray size | 720mm×520mm×50mm |
Quantity | 10pcs |
5. Working table:
Size | 1200mm*650mm*800mm |
6. Water chiller:
Cooling temperature | -5~16℃ |
Coolant capacity | 35L |
Power | 1kw |
