LQ-YK
UPG

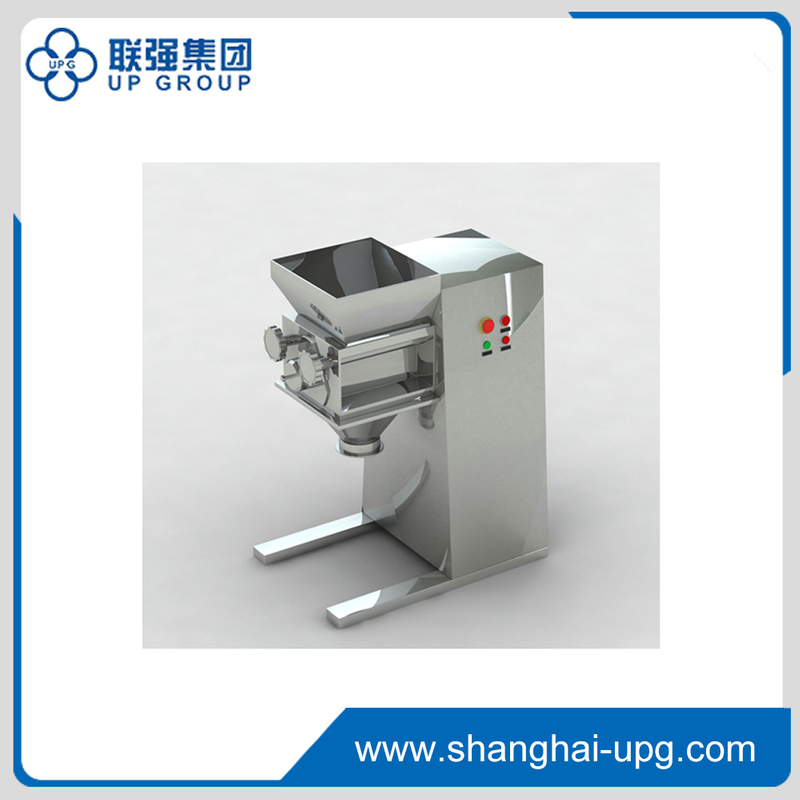

This series granulator could make the damp powder material into granules as well as crush the massive dry material into granules as required. It has the functions of granulating and crushing, also could be adjusted the granulating speed at specific range.
It is widely applied for producing different specifications of granules in pharmaceutical, chemical, foodstuff industries, scientific research institutes, laboratory, hospital and small-scale health products factory. The whole machine is made of high quality stainless steel which is according to GMP standard. It has the features of simple and reasonable structure, energy-efficient, uniform granulating, easy to operate and cleaning, etc..
This series granulator could make the damp powder material into granules as well as crush the massive dry material into granules as required. It has the functions of granulating and crushing, also could be adjusted the granulating speed at specific range.
It is widely applied for producing different specifications of granules in pharmaceutical, chemical, foodstuff industries, scientific research institutes, laboratory, hospital and small-scale health products factory. The whole machine is made of high quality stainless steel which is according to GMP standard. It has the features of simple and reasonable structure, energy-efficient, uniform granulating, easy to operate and cleaning, etc..
Model | LQ-YK-60 | LQ-YK-160A | LQ-YK-160B | LQ-YK-250 | LQ-YK-320 |
Capacity(kg/h) | 20-25 | 00-300 | 200-300 | 200-500 | 400-700 |
Granulating Diameter | 0.8-5mm | 0.8-5mm | 0.8-5mm | 0.8-5mm | 0.8-5mm |
Motor Power | 0.37kw | 3.0kw | 5.5kw | 5.5kw | 11kw |
Drum Rotating Speed | 46r/min | 55r/min | 55r/min | 38r/min | 38r/min |
Drum Diameter | Ø60mm | Ø160mm | Ø160mm | Ø250mm | Ø320mm |
Overall Dimension(mm) | 530*450*580 | 980*750*1120 | 1700*980*1450 | 1070*955*1340 | 1465*800*1415 |
Weight | 70kg | 450kg | 650kg | 550kg | 980kg |
Model | LQ-YK-60 | LQ-YK-160A | LQ-YK-160B | LQ-YK-250 | LQ-YK-320 |
Capacity(kg/h) | 20-25 | 00-300 | 200-300 | 200-500 | 400-700 |
Granulating Diameter | 0.8-5mm | 0.8-5mm | 0.8-5mm | 0.8-5mm | 0.8-5mm |
Motor Power | 0.37kw | 3.0kw | 5.5kw | 5.5kw | 11kw |
Drum Rotating Speed | 46r/min | 55r/min | 55r/min | 38r/min | 38r/min |
Drum Diameter | Ø60mm | Ø160mm | Ø160mm | Ø250mm | Ø320mm |
Overall Dimension(mm) | 530*450*580 | 980*750*1120 | 1700*980*1450 | 1070*955*1340 | 1465*800*1415 |
Weight | 70kg | 450kg | 650kg | 550kg | 980kg |
