LQ-ZHJ
UPG
Introduction:

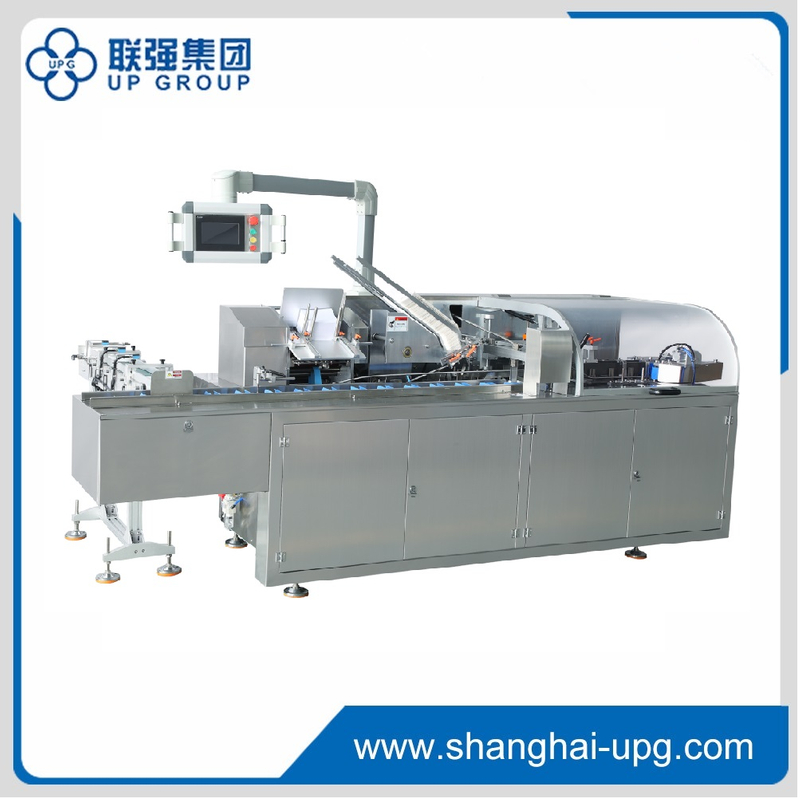

This machine is suitable for packing blisters, tubes, ampules and other related objects into boxes. This machine can fold leaflet, open box, insert blister into box, emboss batch number and close box automatically. It adopts frequency inverter to adjust speed, human machine interface to operate, PLC to control and photoelectric to supervise and control each station the reasons automatically, which can solve the troubles in time. This machine can be used separately and also can be linked with other machines to be a production line. This machine can also be equipped with hot melt glue device to do hot melt glue sealing for box.
Features:
1.It has advantages of high packing efficiency and good quality.

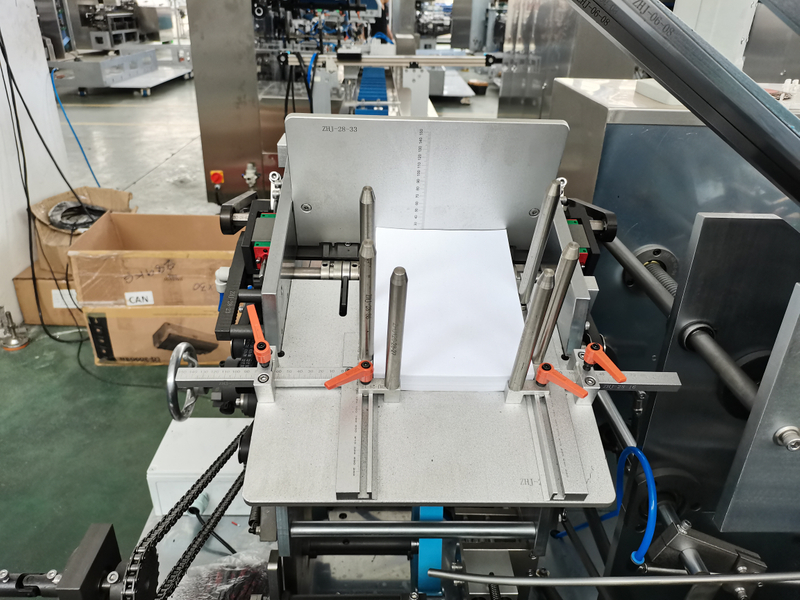

2.This machine can fold leaflet, open box, insert blister into box, emboss batch number and close box automatically.

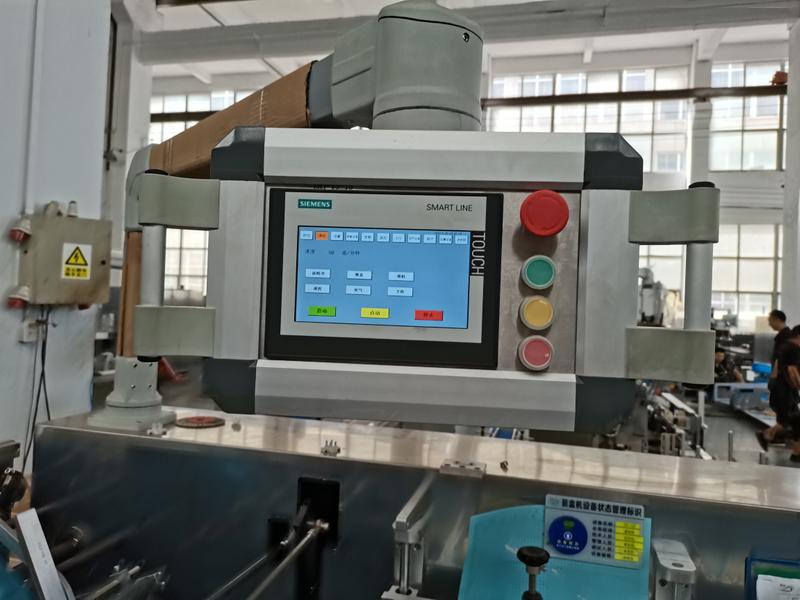

3.It adopts frequency inverter to adjust speed, human machine interface to operate, PLC to control and photoelectric to supervise and control each station the reasons automatically, which can solve the troubles in time.
4.This machine can be used separately, and also can be linked to other machine to be a production line.
5.It can also equip with hot melt glue device to do hot melt glue sealing for box. (Optional)
Introduction:
This machine is suitable for packing blisters, tubes, ampules and other related objects into boxes. This machine can fold leaflet, open box, insert blister into box, emboss batch number and close box automatically. It adopts frequency inverter to adjust speed, human machine interface to operate, PLC to control and photoelectric to supervise and control each station the reasons automatically, which can solve the troubles in time. This machine can be used separately and also can be linked with other machines to be a production line. This machine can also be equipped with hot melt glue device to do hot melt glue sealing for box.
Features:
1.It has advantages of high packing efficiency and good quality.
2.This machine can fold leaflet, open box, insert blister into box, emboss batch number and close box automatically.
3.It adopts frequency inverter to adjust speed, human machine interface to operate, PLC to control and photoelectric to supervise and control each station the reasons automatically, which can solve the troubles in time.
4.This machine can be used separately, and also can be linked to other machine to be a production line.
5.It can also equip with hot melt glue device to do hot melt glue sealing for box. (Optional)
Model | LQ-ZHJ-120 | LQ-ZHJ-200 | LQ-ZHJ-260 |
Production capacity | 120 boxes/min | 200 boxes/min | 260 boxes/min |
Max. Size of Box | 200*120*70 mm | 200*80*70 mm | 200*80*70 mm |
Min. Size of Box | 50*25*12 mm | 65*25*15 mm | 65*25*15 mm |
Specification of Box | 250-300 g/m2 | 250-300 g/m2 | 250-300 g/m2 |
Max. Size of Leaflet | 260*180 mm | 560*180 mm | 560*180 mm |
Max. Size of Leaflet | 110*100 mm | 110*100 mm | 110*100 mm |
Specification of Leaflet | 55-65 g/m2 | 55-65 g/m2 | 55-65 g/m2 |
Volume of Air Consumption | 20 m³/h | 20 m³/h | 20 m³/h |
Total Power | 1.5 kw | 4.1 kw | 6.9 kw |
Voltage | 380V/50Hz/3Ph | 380V/50Hz/3Ph | 380V/50Hz/3Ph |
Overall Dimension (L*W*H) | 3300*1350*1700 mm | 4500*1500*1700 mm | 4500*1500*1700 mm |
Weight | 1500 kg | 3000 kg | 3000 kg |
Model | LQ-ZHJ-120 | LQ-ZHJ-200 | LQ-ZHJ-260 |
Production capacity | 120 boxes/min | 200 boxes/min | 260 boxes/min |
Max. Size of Box | 200*120*70 mm | 200*80*70 mm | 200*80*70 mm |
Min. Size of Box | 50*25*12 mm | 65*25*15 mm | 65*25*15 mm |
Specification of Box | 250-300 g/m2 | 250-300 g/m2 | 250-300 g/m2 |
Max. Size of Leaflet | 260*180 mm | 560*180 mm | 560*180 mm |
Max. Size of Leaflet | 110*100 mm | 110*100 mm | 110*100 mm |
Specification of Leaflet | 55-65 g/m2 | 55-65 g/m2 | 55-65 g/m2 |
Volume of Air Consumption | 20 m³/h | 20 m³/h | 20 m³/h |
Total Power | 1.5 kw | 4.1 kw | 6.9 kw |
Voltage | 380V/50Hz/3Ph | 380V/50Hz/3Ph | 380V/50Hz/3Ph |
Overall Dimension (L*W*H) | 3300*1350*1700 mm | 4500*1500*1700 mm | 4500*1500*1700 mm |
Weight | 1500 kg | 3000 kg | 3000 kg |
