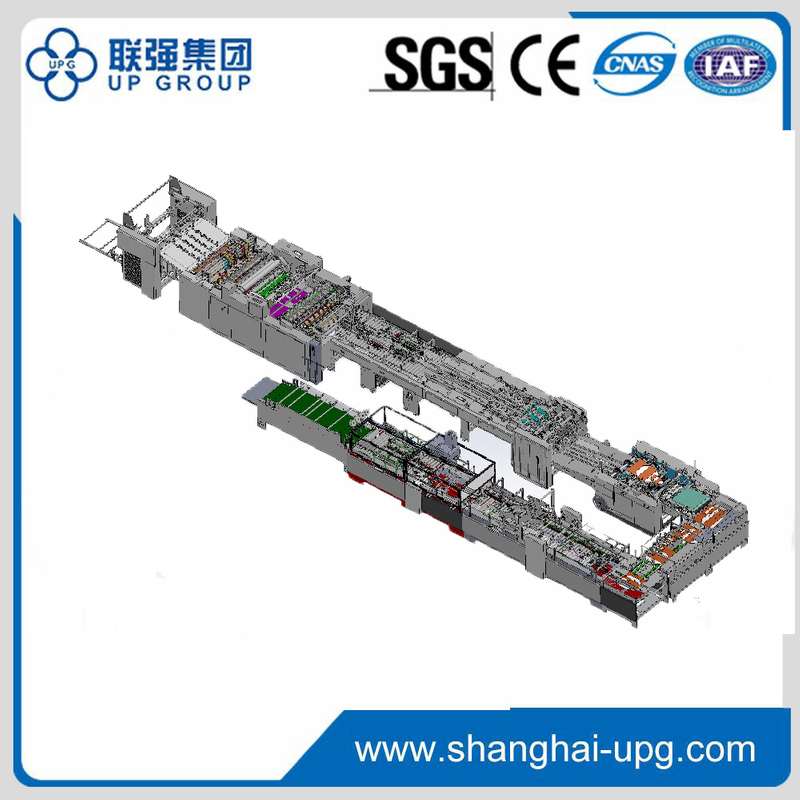

LQ1200CT-430S Fully Automatic Sheet Feeding Paper Bag Making Machine

LQ1200CT-430S Fully automatic sheet feeding paper bag making machine, can produce luxury brand paper bag, gift bag in one time (without handles).

Quantity:
  • LQ1200CT-430S
  • upg

LQ1200CT-430S Fully automatic sheet feeding paper bag making machine, can produce luxury brand paper bag, gift bag in one time (without handles). This machine possess a large number of independent patents, create the high-speed automatic paper bag production.  Adopts with PLC and Servo control system, reserve of extensible intelligent port for future system upgrades and remote services.

The basic working flow is sheet feeding, positioning, top card pasting, top folding (insert pasting), tube forming, gusset forming, bottom open,servo bottom cardboard inserting(square bottom), bottom gluing, compaction and output.

All these steps increase the bag making efficiency and save a lot of labor cost, ,replace the traditional manually paper bag making way. Realize automation, intelligent and high efficiency production requirement, which achieve the leading level in the world.

image1image2image3image4image5image6

image7image8

1234

Input Max.   Sheet Size

1200x600mm

Input Min.   Sheet Size

540x320mm

Sheet   Weight

190-250gsm (top card + bottom card)

120-190gsm (top card only)

Bag Width

180-430mm

Bottom Width

80-170mm

Bag Length

220-500mm

Top Folding   Depth

30-60mm

Top   Cardboard Length

160-410mm

Top   Cardboard Width

25-50mm

Top   Cardboard Weight

200-500gsm

Bottom   Cardboard Length

170-420mm

Bottom   Cardboard Width

70-160mm

Bottom   Cardboard Weight

250-400gsm

Speed

40-70pcs/min

Working   Power

20KW

Machine   Weight

20T

Machine Size

22500x4200x1800mm

Glue Type

Top   reinforced card pasting, bottom gluing (Water soluble cold glue)

Tube   gluing (Hot-melt glue Nordson)
