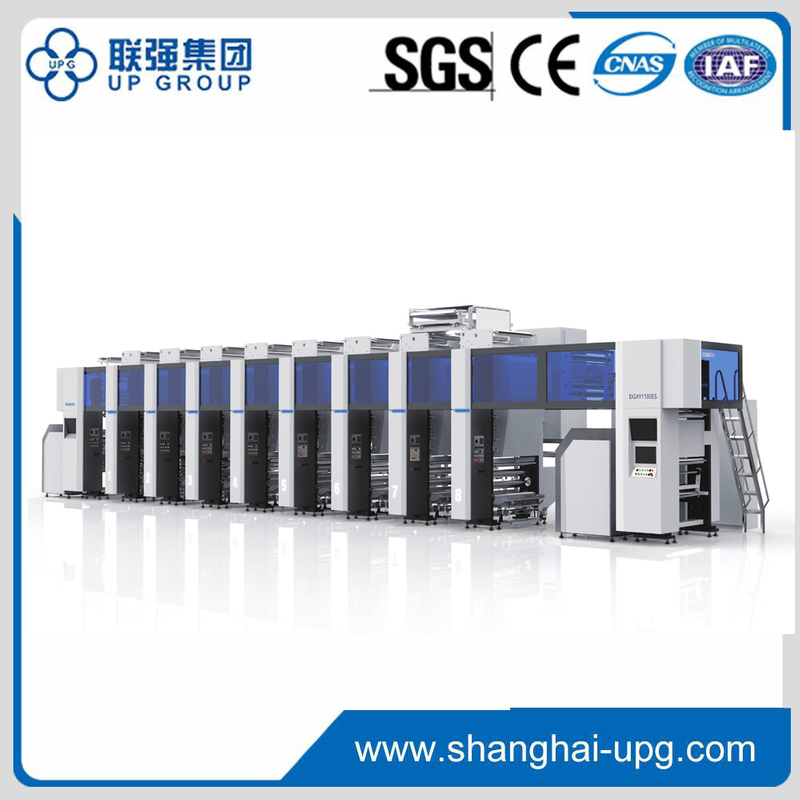

LQAY850.1050D Electrical Line Shaft Rotogravure Printing Machine

This machine is suitable for high production output.Electrical line shaft controlling system, each printing unit, infeed
Availability:
Quantity:

PDF Export

LQAY850.1050D Electrical Line Shaft Rotogravure Printing Machine
  • LQAY850.1050D/DGAY800.1100ES

  • LQ

LQAY850.1050D

1.This machine is suitable for high production output.

2. Electrical line shaft controlling system, each printing unit, infeed

and outfeed are driven by independent servo motor.

3. Horizontal and vertical automatic register, video inspection monitor

installed at both unwinder and rewinder side which is convenient for

operation.

4. Independent external double station unwinder and rewinder with

automatic splicing function.

5. Each printing unit is equipped with ink transfer roller.

6. Equipped with movable ink tank cart which is convenient for ink

exchange, ink tank and inner side of frame are pasted with Teflon

material to avoid cleaning.

7. Ground exhaust and side exhaust can effectively recycle smelly air

8. Electric heating, and gas heating, thermal oil heating and ESO

heating dryer is optional .


LQAY800.1100ES

1. Electrical line shaft controlling system, each printing unit, infeed

and outfeed are driven by independent servo motor.

2. Horizontal and vertical automatic register, video inspection monitor

installed at both unwinder and rewinder side which is convenient for

operation.

3. Independent external double station unwinder and rewinder with

automatic splicing function.

4. Each printing unit is equipped with ink transfer roller.

5. Equipped with movable ink tank cart which is convenient for ink

exchange, ink tank and inner side of frame are pasted with Teflon

material to avoid cleaning.

6. Ground exhaust and side exhaust can effectively recycle smelly air

7. Electric heating, and gas heating, thermal oil heating and ESO

heating dryer is optional.






Model

LQAY850D

LQAY1050D

LQAY850ES

LQAY1100ES

Printing colors

8 colors

8 colors

8 colors

8 colors

Max printing width

850mm

1050mm

800mm

1100mm

Max material width

880mm

1080mm

830mm

1130mm

Printing material

PETOPPBOPP,CPP,PE,PVC,NYLON,Paper

Max mechanical speed

320m/min

320m/min

280m/min

280m/min

Max printing speed

300m/min

300m/min

250m/min

250m/min

Register accuracy

±0.1mm

±0.1mm

±0.1mm

±0.1mm

Max unwinding diameter and

rewinding diameter

600mm

600mm

600mm

600mm

Paper core diameter

φ76mm

φ76mm

φ76mm

φ76mm

Printing cylinder diameter

φ100-φ400mm

φ100-φ400mm

φ100-φ400mm

φ100-φ400mm

Total power

540kw(320kw)

540kw(320kw)

468kw(280kw)

468kw(280kw)

Dimension

20500*3600*3500mm

20500*3800*3500mm

20000*3600*3200mm

20000*3900*3200mm

Weight

52000kg

55000kg

42000kg

45000kg
