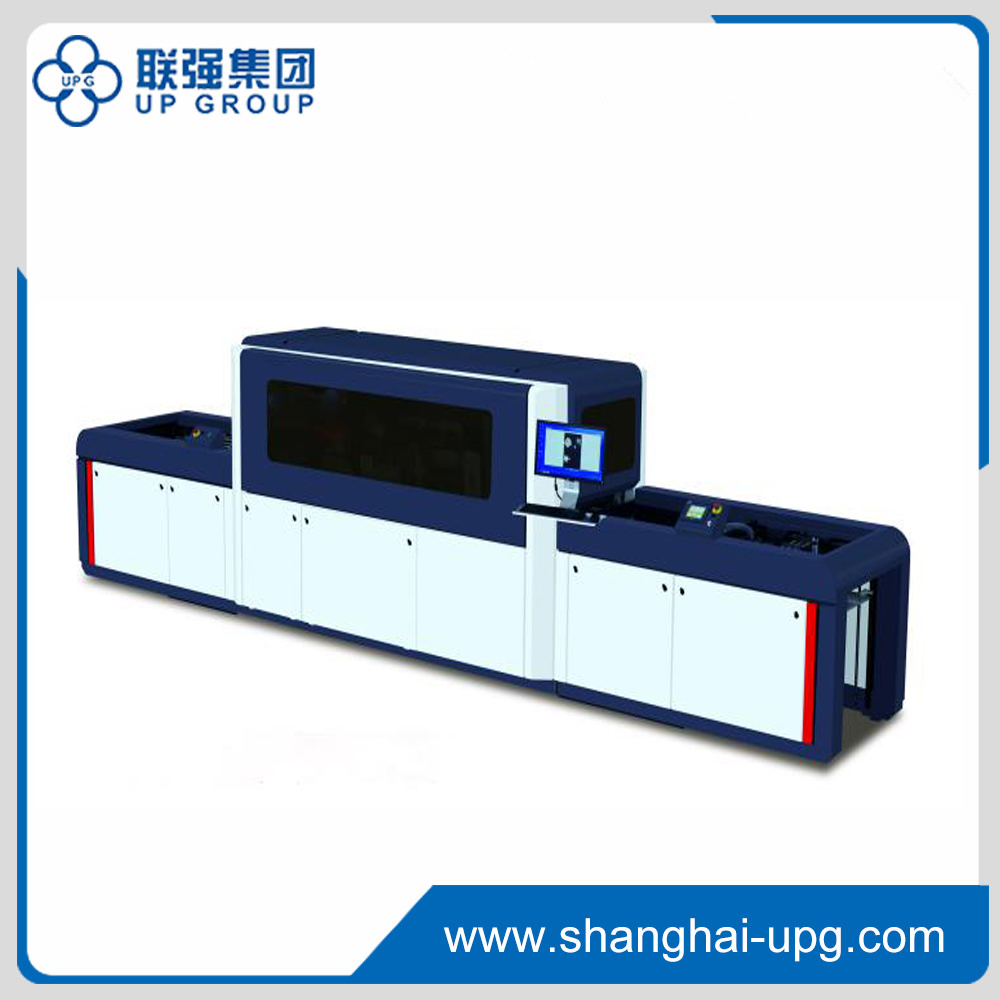

LQB2 Digital UV Coater With Cold Foil

UPG always focusing on the industrial trend and new developments in digital printings finishing. we can offer the best affordable solution for spots UV coating and digital stamping without mold or plate,in short run and medium run finishing.

Quantity:
  • LQB2
  • UPG

Introduction:

UPG always focusing on the industrial trend and new developments in digital printings finishing .UPG is able to respond to these developments and offer the best affordable solution for spots UV coating and digital stamping without mold or plate,in short run and medium run finishing.You can do spot UV and cold foil directly from the computer to the printings.It can creates 3D effects and metallic lustre for printings.Now we have A3+ and B 2 models.


Coating Process:

Empty the air and spray the coating for preparation before UV coating.Spot coating and /or Cold Foil Stamping continually Inkjet heads move to seal covers for protection,avoid light and dust.


Cold stamping Technology:

Foil stamp apply only on the area where there is coating.

There is foil-save design in cold foil station.When the stamping area is very small,the foil can pull back and use the foil again to lower down production cost.


Characteristic:

Digital Spot UV:With DOD inkjet heads, you can do spot UV directly from computer file to the printings,easy and fast.

3D effect:In one pass, you can make dfferenet thickness of coating from 10 micron to 100 micron, good for personization design.

Digital stamping: Without die or plate, you can do stamping diretly from computer file to the printings, saving the time and cost of making plate.

Multiple stamping: With several pass, you can do multiple stamping to bring glittering effect to the printings,It can have stamping effect and spot UV in one printing.






Model

LQB2

Min. Paper size

320x464mm

Max. Paper size

530x760mm

Max. Coating width

500mm

Printings thickness

157gsm ~ 450gsm

Coating thickness

10μm-100μm

Coating Speed

3000S/H(B2 Paper) or 33M/Min

Registration System

CCD  ±200μm

Automatic feeder

800mm

Max. length of foil

1200mm

Dimensions

6500x1200x 1800mm

Weight

2600kgs
