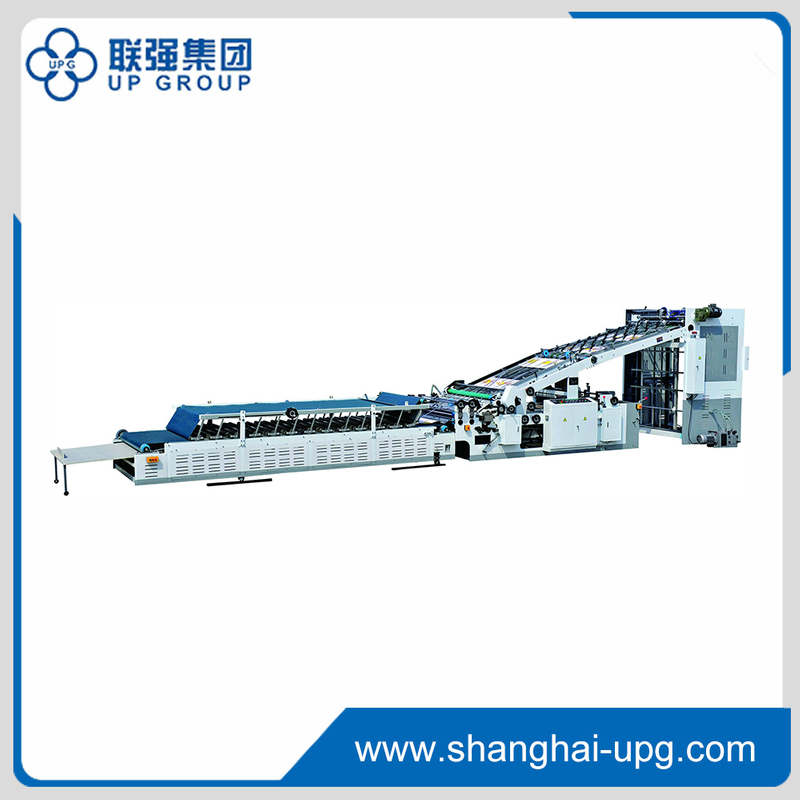

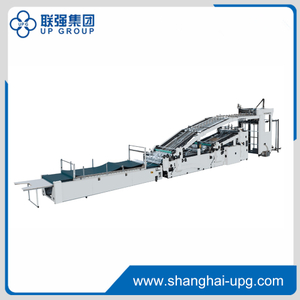

LQMT Automatic Flute Laminator


PDF Export

  • LQMT Series

  • UPG

Q:What types of corrugated paper is this product applicable to?

A:This machine is suitable for A, B, C,E, F waves, three-layer, five-layer corrugated paste.

Thick board(above 250g)can also be putout smoothly.The facial tissue200-800GSM(board and three layers of mounted board) also has the function of leading and aligning the paper.


Q:What are the advantages of this machine?

A:The roll coater of the machine are designed with medium and high design,and are matched with the roll coater of mesh,which greatly improve the uniformity of the coating,improve the covering strength and reduce the production cost of customers.


Q:What’s the characteristics of this machine?

A:STMT adopts the back pushing claw, the back positioning paper feeding, and the side gauge of the spring piece and the bottom paper suction system, so that make the machine use a wide range of paper, high precision, while retaining the characteristics of simple operation and convenient maintenance.

●LQMT Series Automatic Flute Laminator adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system which makes this series of machine fits for a larger range of paper, high precision while remaining the features of easy operation and maintenance.

●The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
●Balance-tested rollers, tight assembling technique, plus tooth belt driving mechanic system makes the machine runs at low noise with high precision.
●The machine adopts automatic glue supply,recyclable glue circulating system and auto-central oil supply system.
●Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.
●All material bought from outside are inspected according to ISO-9001 standard and the key parts such as the harmonic gear and bearings are imported ones.
●The bottom sheet for this machine can be A, B, C, E, F flute,3 or 5 ply corrugated sheet as well as cardboard not less than 250gsm. The range for top paper can be 200-800 GSM sheet or 3 ply laminated board. It has top paper advance or alignment function.
Model LQMT-1300 LQMT -1450 LQMT -1600
Max. sheet size 1300×1100mm 1450×1100mm 1600×1400mm
Min. sheet size 380×380mm 380×380mm 400×400mm
Laminate precision ≤±1.5mm ≤±1.5mm ≤±1.5mm
Max. machine speed 6000 sheets/hour 6000 sheets/hour 6000 sheets/hour
Total power 11.65 kw 11.65 kw 15.3 kw
Overall dimension 14800×2150×2500mm 14800×2300×2500mm 15570×2450×2500mm
