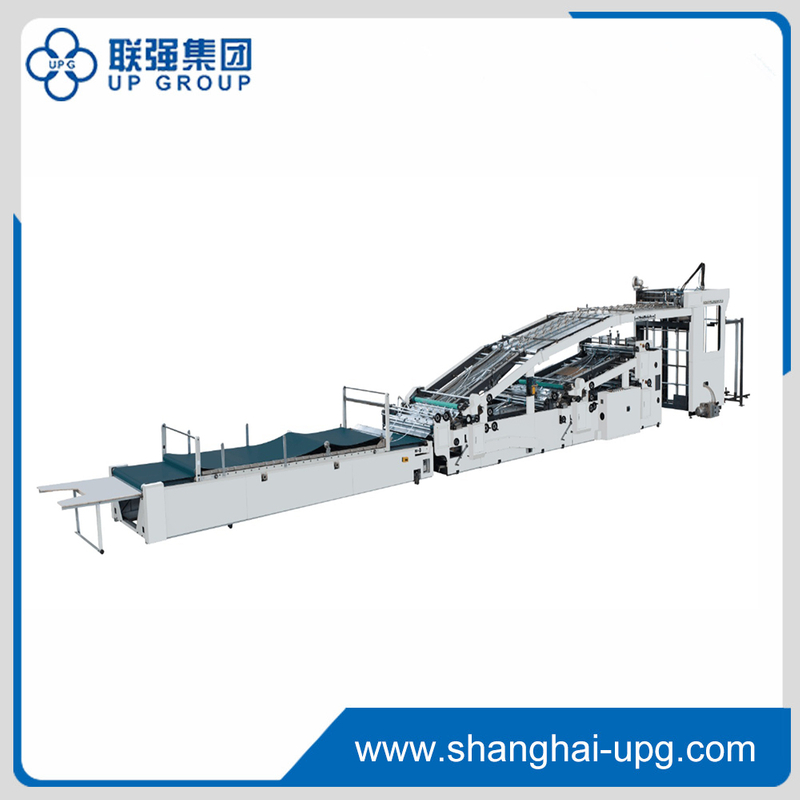

LQMT-W Series Automatic multi-ply flute laminator

LQMT-1450W Automatic Flute laminator could do three in one lamination and also could do the lamination of single layer with cardboard paper. The machine is composed by top paper feeding unit,to paper transferring unit, top paper positioning unit,upper and lower bottom paper feeding unit, upper and lower bottom paper positioning unit, harmonic gear, two gluing system and press-conveyor unit.

Quantity:
  • LQMT-1450W
  • UPG

Top corrugated paper and bottom corrugated paper move ahead synchronously. One side of corrugated paper is positioned by side lay and the other side is positioned by spring lays which means when the other side hits the spring lays, the paper will be bounced back to make it close to the side lay. The front movement is pushed by pusher. After gluing of bottom corrugated paper and press with the top corrugated paper , the multi-layer bottom paper could be formed. Then the multi-layer bottom paper will go to gluing unit and laminated with cardboard paper. After pressing, the multi-layer laminated paper could be finished.

The registration for the cardboard and corrugated board is carried out by the harmonic gear.

Meanwhile, the machine not only could do the lamination of multi-layer corrugated paper with cardboard paper, but also could do the lamination of single layer with card board to realize many kinds of lamination such as 1+2,3+2,1+2+2, 3+2+2.


Model

LQMT-1450W

LQMT-1450WL

Max   Paper size

1450×1100mm

1450×1400mm

Min   Paper size

450×450mm

450×450mm

Max   weight for top paper

800g/m²

800g/m²

Min   weight for top paper

180g/m²

180g/m²

Max weight   for bottom paper

800g/m²

800g/m²

Min   weight for bottom paper

300g/m²

300g/m²

The   Max. thickness of bottom paper

8mm

8mm

The   Max. thickness of laminated paper(top paper + bottom paper)

10mm

10mm

Maximum speed

6000sheets/h

6000sheets/h

Total power

19.7KW

21.2KW

Dimension

18560×2100×2600mm

19970×2250×2600mm
