LQM Series
UPG
Q:What types of corrugated paper is this product applicable to?
A:This machine is suitable for A, B, C,E, F waves, three-layer, five-layer corrugated paste.
Q:What’s its precision?
A:It’s ±2mm.
Q:What are the advantages of this machine?
A:It uses liquid level control system,automatic circulation glue,greatly reduce the labor intensity.

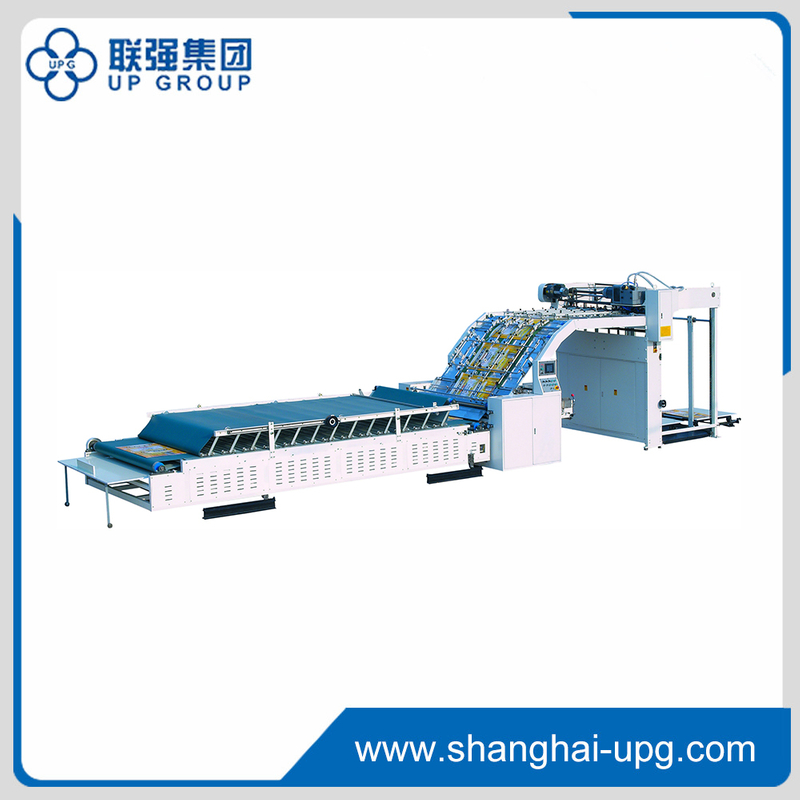

●LQM Series Automatic Flute Laminator adopts unique pressing spring front lay registration design compliant with PLC control system which makes machine run at high lamination precession and low rate of breaking down.
●The machine uses speed variators, PLC central control, simulation to digit program system..
●The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
●Balance-tested rollers, tight assembling technique, plus timing belts driving mechanic system makes the machine runs at low noise with high precision.
●The machine adopts automatic glue supply and recyclable glue circulating system.
●Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction. The electric parts used are all world wide available brand or well-known Chinese brand.
●All material bought from outside are inspected according to ISO-9001 standard and the key parts such as bearings are imported ones.
●The bottom sheet for this machine can be A, B, C, E, F flute, 3 or 5 ply corrugated board to sheet lamination. The range for top paper can be 150-450 GSM. It has top paper advance or alignment function.
Q:What types of corrugated paper is this product applicable to?
A:This machine is suitable for A, B, C,E, F waves, three-layer, five-layer corrugated paste.
Q:What’s its precision?
A:It’s ±2mm.
Q:What are the advantages of this machine?
A:It uses liquid level control system,automatic circulation glue,greatly reduce the labor intensity.
●LQM Series Automatic Flute Laminator adopts unique pressing spring front lay registration design compliant with PLC control system which makes machine run at high lamination precession and low rate of breaking down.
●The machine uses speed variators, PLC central control, simulation to digit program system..
●The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
●Balance-tested rollers, tight assembling technique, plus timing belts driving mechanic system makes the machine runs at low noise with high precision.
●The machine adopts automatic glue supply and recyclable glue circulating system.
●Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction. The electric parts used are all world wide available brand or well-known Chinese brand.
●All material bought from outside are inspected according to ISO-9001 standard and the key parts such as bearings are imported ones.
●The bottom sheet for this machine can be A, B, C, E, F flute, 3 or 5 ply corrugated board to sheet lamination. The range for top paper can be 150-450 GSM. It has top paper advance or alignment function.
Model | LQM-1300 | LQM-1450 | LQM-1650 |
Max. sheet size | 1300×1300mm | 1450×1300mm | 1650×1600mm |
Min. sheet size | 400×400mm | 400×400mm | 400×400mm |
Max. machine speed | 153m/min | 153m/min | 153m/min |
Total power | 16.25kw | 16.25kw | 18.1kw |
Overall dimension | 14000×2300×2700mm | 14300×2450×2700mm | 14800×2550×2700mm |
Model | LQM-1300 | LQM-1450 | LQM-1650 |
Max. sheet size | 1300×1300mm | 1450×1300mm | 1650×1600mm |
Min. sheet size | 400×400mm | 400×400mm | 400×400mm |
Max. machine speed | 153m/min | 153m/min | 153m/min |
Total power | 16.25kw | 16.25kw | 18.1kw |
Overall dimension | 14000×2300×2700mm | 14300×2450×2700mm | 14800×2550×2700mm |
