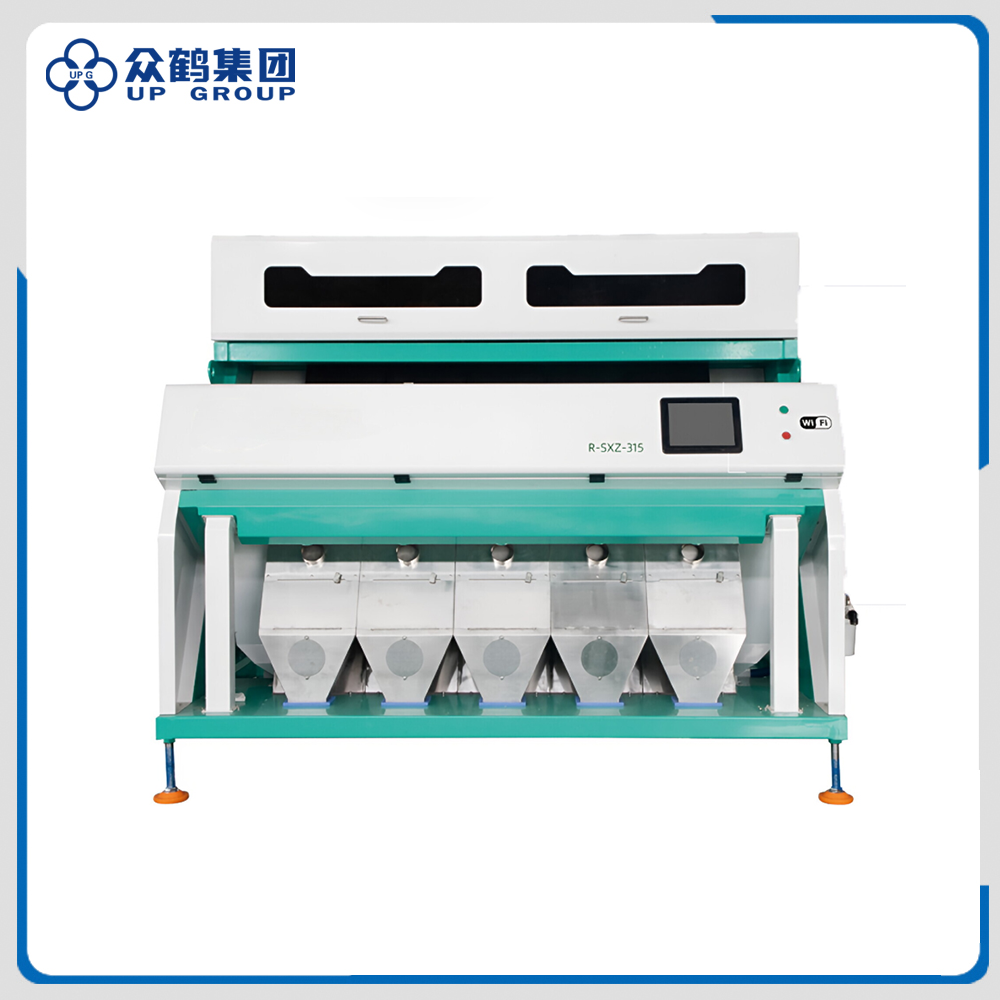

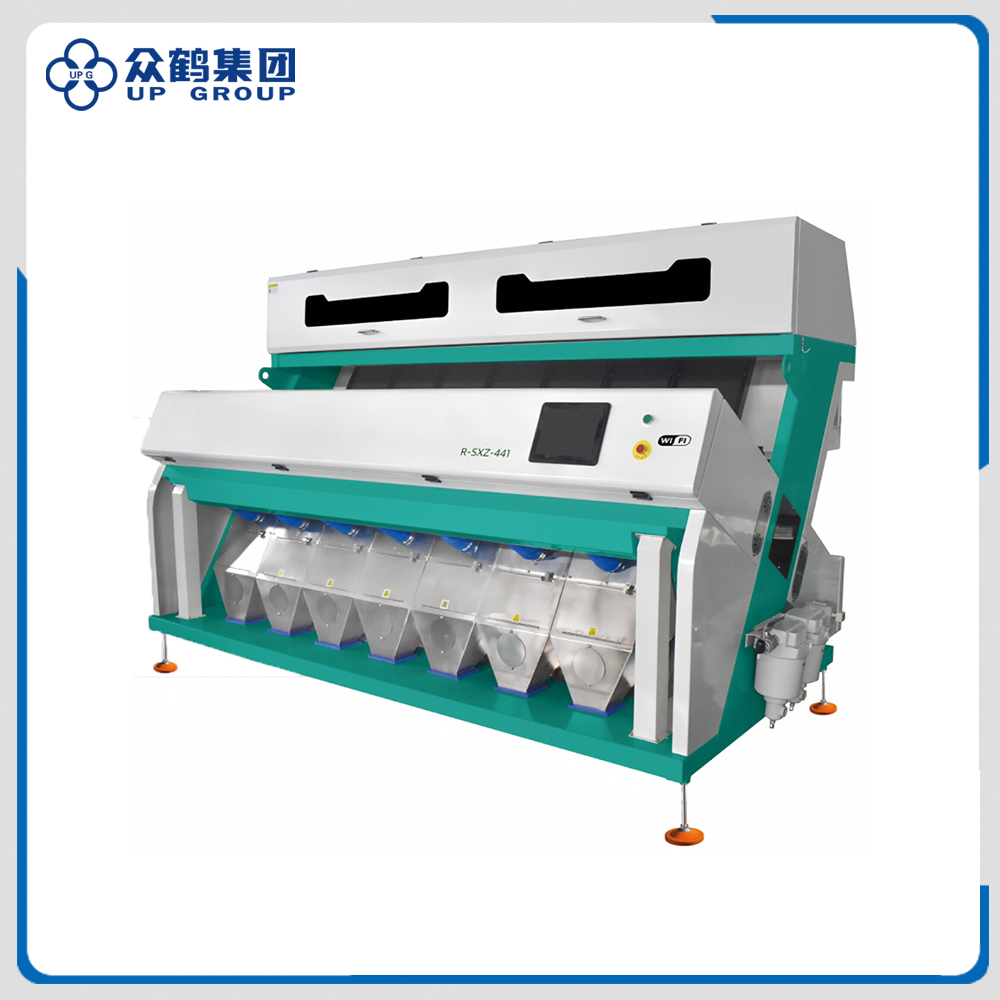

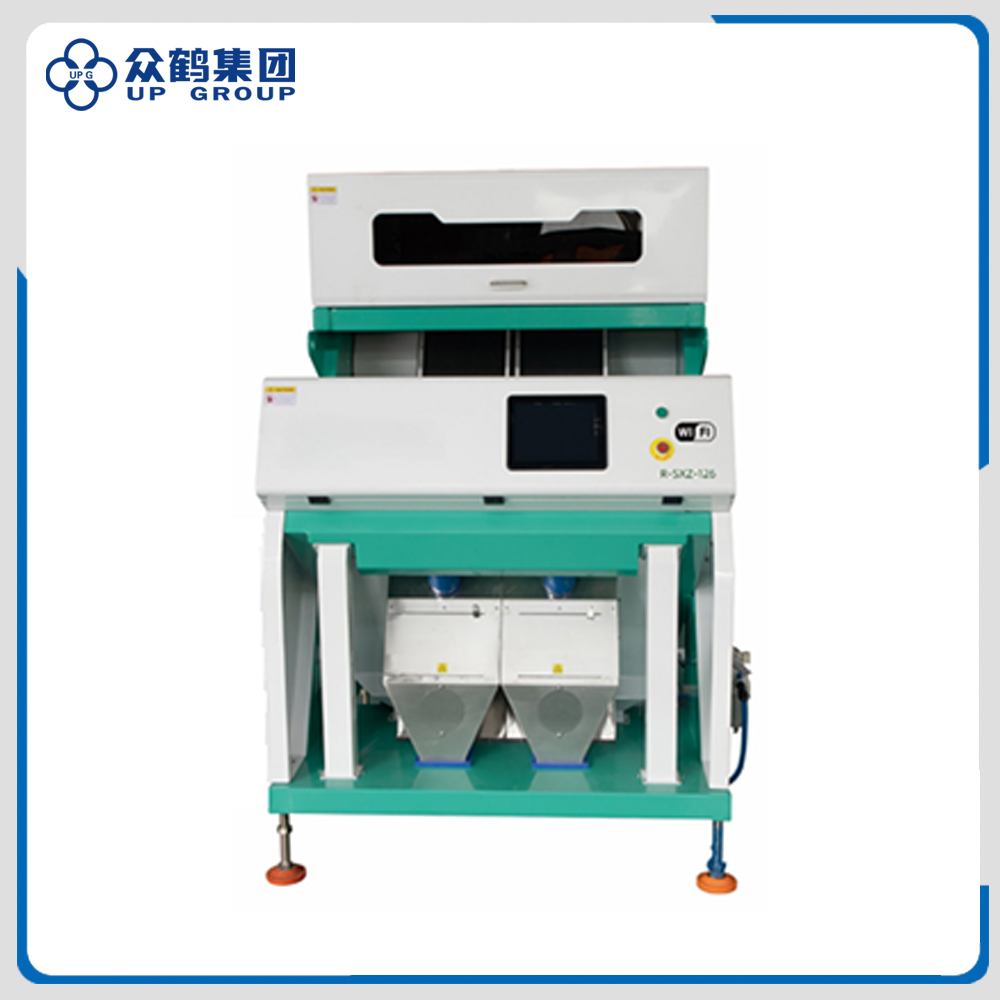

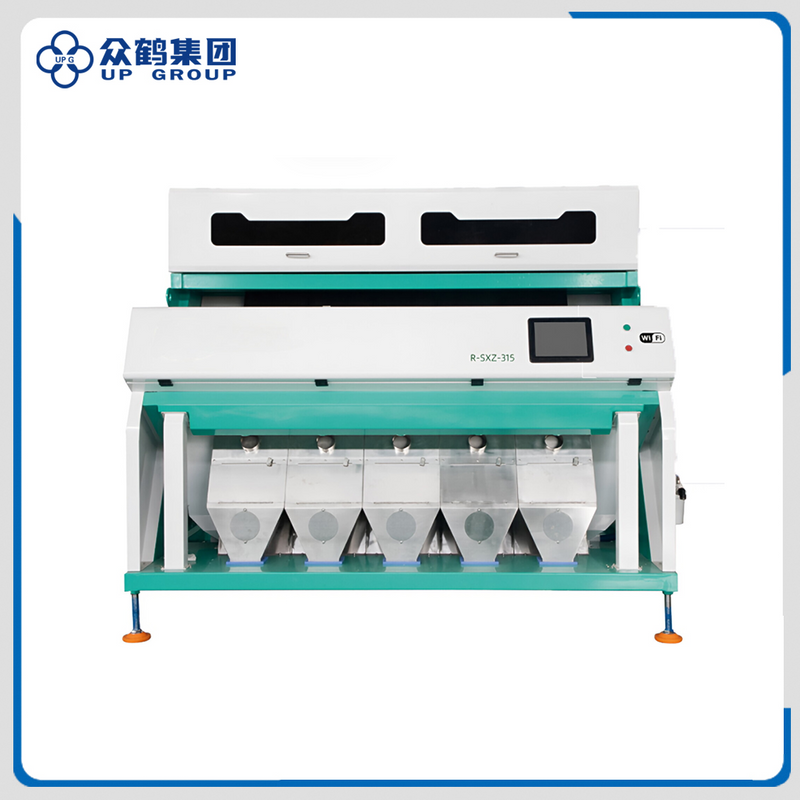

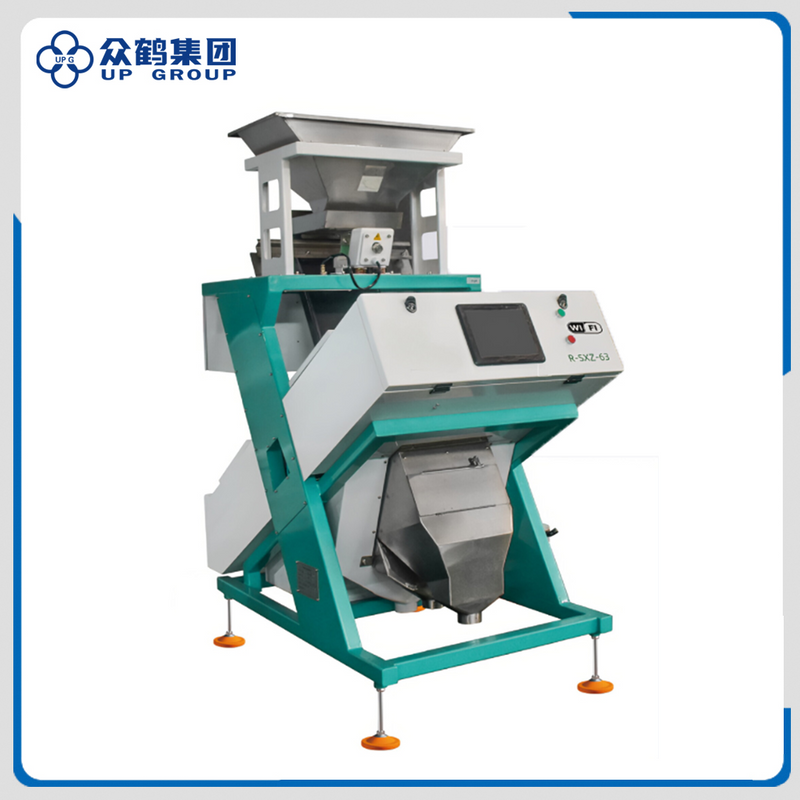

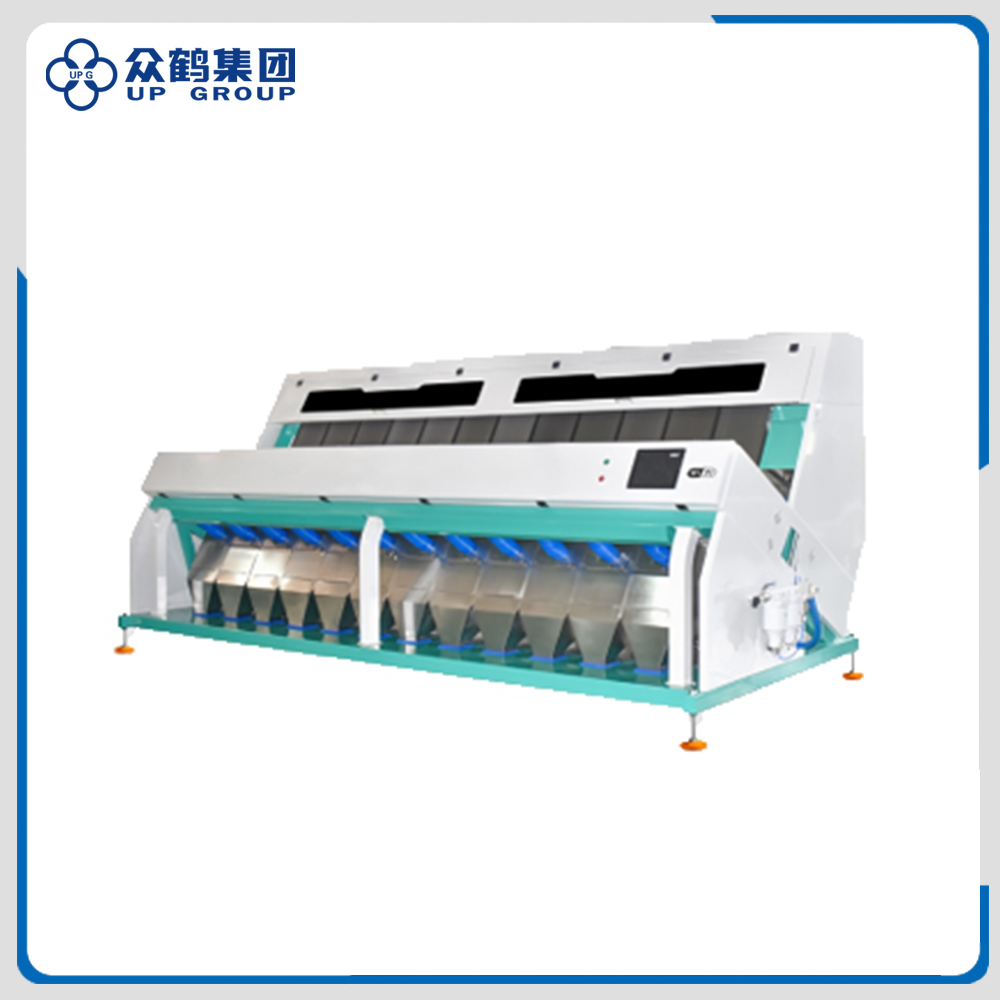

R Series Intelligent CCD Chute Color Sorter

Availability:
Quantity:

PDF Export

R Series Intelligent CCD Chute Color Sorter
R Series Intelligent CCD Chute Color Sorter
R Series Intelligent CCD Chute Color Sorter
R Series Intelligent CCD Chute Color Sorter
R Series Intelligent CCD Chute Color Sorter
R Series Intelligent CCD Chute Color Sorter
  • LQ Sorting Machine

  • UPG

Feature:

  • Smart color selection mode: According to the needs of customers for multiple materials, preset multiple color selection modes.
  • Shape selection mode: when the size is much more different, it will work.
  • Injection system: Using high-quality solenoid valve, the frequency can reach1200-1500Hz,while ensuring the output,the output ratio is smaller.Japan cooperated in the development of degaussing technology,which has lower power consumption and longer life.
  • Operating system: The newly optimized operation interface is simple and easy to learn. The system automatically detects when it is turned on.Equipped with a panoramic intelligent analysis system, "one-key intelligence" can realize all data settings for good materials and bad materials.Comes with wifi remote connection,remote opera-tion is more free.
  • Discharge system: Adopting the design of feeding protection and soft landing buffer, according to the different needs of domestic and foreign customers, the discharge hopper has two options: "large hopper" and each group of independent "small hopper". The large hopper can be easily installed and the small hopper can be installed according to customers. The color selection requirement is changed to the "three-color selection" model.
  • Image acquisition system: The international cutting-edge industry professional full-colorhigh-speed line-scan imaging CCD sensor, and the color sorting special lens tailored by the top international supplier can accurately identify the subtle bacteria of 0.03mm², and meet the high-endcolor sorting requirements.
  • Light source: Intelligent LED light source is steplessly adjusted, which can match the various brightness requirements of different materials.It is designed with cold light source system to have a longer life, high luminous efficiency and strong stability. It can be equipped with RGB variable color background lights for better selection.
  • Image processing system: Using the latest one-button capture system, real-time collection and processing of material pictures,with the latest multiple intelligent and complex algorithms,provides a more flexible sorting combination scheme for various impurities and micro-chromatic aberration materials,with higher color sorting accuracy,and bringing out more lower.


Company Profile:

众鹤详情页_01众鹤详情页_02

Superior:

A trading brand enterprise which is invested by industry and joint industry and trade.
ShangHai UPG International Industry & Trade Group Co., Ltd. is a professional trading company which is invested by UP Group's key branch enterprises together, the company has become the most active and influential brand in the printing and packaging machinery industry in China.

We own high efficiency, high quality, stable and professional trade working team.
In the long-term practice of trading, we foster and establish a multilingual, professional, high diathesis and qualification staff team, which form the biggest and most powerful trading enterprises in this industry. Among our working team, 97% obtain the associate degree and bachelor degree, 40% own intermediate level professional titles, master degree or above.

We adhere the philosophy that "over-value service, pioneering and pragmatic, and Win-win cooperation".
We start from innovation system, improve the institutional mechanism, gradually cultivating and forming a value pursuit, and enterprise culture which specialize in "Honest and trustworthy, Diligent and promising, Pursue excellence and efficiency, over-value service". We always ensure the quality of the products and service, establish long-term and stable relations of cooperation with domestic suppliers as well as our foreign customers for mutual benefits.

Superiority of abundant resource, matching into a line, high optionality.
We centred on printing machinery manufacturing and have established long term strategic collaborations with more than 50 cost-effective, high quality and reputation brand enterprises and factories, which cover printing and packaging, food and pharmaceutical packaging, printing  consumables and rubber& plastic machinery, and form a multi-category, multispecies and multilevel integrated superiority and provide a convenient service channel for foreign customers.

Well planned, high input, extensive coverage exhibition publicity.
The huge investment of more than 20 international professional exhibitions and more than one billion sales amount per year make our company known overseas and be of high reputation in domestic and abroad market.

Strengthen channel building, service to global customers, multiple trading strategic pattern.
Through several years' effort, we have exported products to more than 80 countries (not only Asia but also Europe, Africa, South America, North America and Oceania) and have established long term strategic collaborations with distributors and sales channels in more than 40 countries and regions, which play an important role for open foreign market and maintain service terminal clients.


Our Customers:

众鹤详情页_04裁

Exhibitions:

众鹤详情页_05

Export Markets:

UP Group's products have been exported to more than 80 countries.

In Southeast Asia, its products cover Thailand, Indonesia, Singapore, Malaysia, Brunei, the Philippines, Japan, Korea, Vietnam, Cambodia, India, Sri Lanka, Nepal, Dubai, Kuwait, Saudi, Syria, Lebanon, Maldives, Bahrain, Jordan, Sudan, Mongolia, Myanmar, Pakistan, Iran, Turkey and Bangladesh.

In European, its products cover Australia, New Zealand, Britain, France, Germany, Italy, Spain, Portugal, Georgians, Slovakia Finland, Poland, the Czech Republic, Russia, Ukraine, Belarus, Kazakhstan, Uzbekistan, Sweden, Bosnia, Herzegovina and Albania

In Africa, its products cover South Africa, Kenya, Ethiopia, Egypt, Morocco, Algeria, Tunisia, Madagascar, Mauritius, Nigeria, Ivory Coast, Ghana, Mali, Liberia and Cameroon.

In America, its products cover The United States, Canada, Mexico, Panama, Costa Rica, Brazil, Argentina, Columbia, Bolivia, Uruguay, Paraguay, Chile, Peru, Ecuador and Honduras.

Among these regions, we have more than 46 stable distributors and partners for many years.


Packaging and Shipping:

众鹤详情页_07

Our Services:

Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.

In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.

After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.

Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.


ModelR-SXZ-63R-SXZ-126R-SXZ-189R-SXZ-252
Chutes No63126189252
Product Output(T/H)0.5-1.52.0-4.03.0-6.04.0-8.0
Sorting Accuracy(%)≥99.99%≥99.99%≥99.99%≥99.99%
Optimized Carryover (bad: Good)≥30:1≥30:1≥30:1≥30:1
Machine weight (KG)320510690870
Minimum ldentification(mm)0.030.030.030.03
Power (KW)11.522.5
Power SupplyAC220/50/1AC220/50/1AC220/50/1AC220/50/1
Machine Size (L*W*H)mm820*1488*16501130*1568*18401500*1485*16801818*1485*1680





ModelR-SXZ-378R-SXZ-441R-SXZ-504R-SXZ-630
Chutes No378441504630
Product Output(T/H)6.0-12.07.0-14.08.0-16.010.0-20.0
Sorting Accuracy(%)≥99.99%≥99.99%≥99.99%≥99.99%
Optimized Carryover (bad: Good)≥30:1≥30:1≥30:1≥30:1
Machine weight (KG)1230141015901950
Minimum ldentification(mm)0.030.030.030.03
Power (KW)3.544.55.5
Power SupplyAC220/50/1AC220/50/1AC220/50/1AC220/50/1
Machine Size (L*W*H)mm2446*1485*16802760*1485*16803074*1485*16803700*1485*1680
