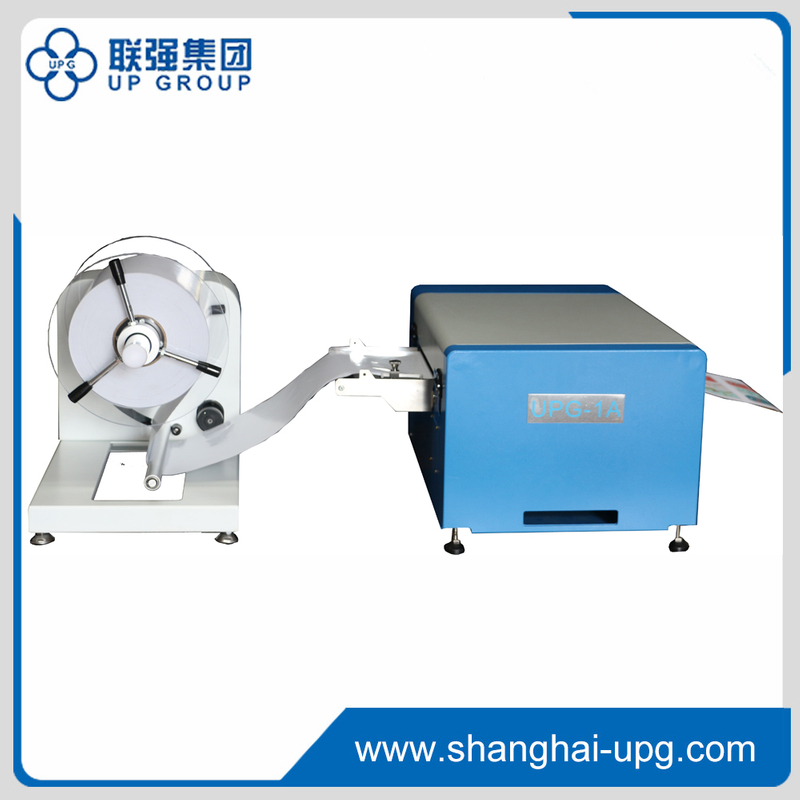

UPG-1A Digital Label Printer

UPG-1A Catalogue.pdf

Features:

1. Latest Memjet Northstar technology

2. Small footprint, maximizing use of space

3. Latest DN ink，2x time PH life

4. Flexible/on demand printing

5. High speed-without quality loss

6. Vibrant colors

7. Full-size, intuitive, touchscreen display（Optional）

8. Roll-to-roll or roll-to-cut printing mode

9. All-steel construction for durability in a commercial environment

10. Environmentally-friendly water based inks and low power consumption

11. No heat or ozone emission

12. Wide range of media-paper, PP, PE, canvas, Films, self adhesive labels

13. Simple maintenance routines lead to low overall cost of production

14. Speed and quality to enable shorter turnaround times

Specifications:

Model	UPG-1A
Technology	Single pass thermal inkjet Four colors-(CMYK)
Imaging	5 thermal printheads Five channels (CMYKK) 70400 nozzles/head 1.2PL droplet  1.2PL 3 billion ink drops per second
Print quality	output resolution of 1600*1600 or 800*1600
Print speed	18m/min（12ips)    9m/min(6ips)
Power supply	Standard 220V
Power consumption	250-300W
Interface	USB 2.0
Supported data formats	Native PDF TIFF, JPEG, EPS. PNG, PS, PRN, CXF, FS, PD, FPX, PCD, PCT. PICT, WMF, TGA, BMP, PCX, PLT
User interface	Local language support
Dimension	6200 x 3200 x 5200 mm
Total Weight	38 kg
