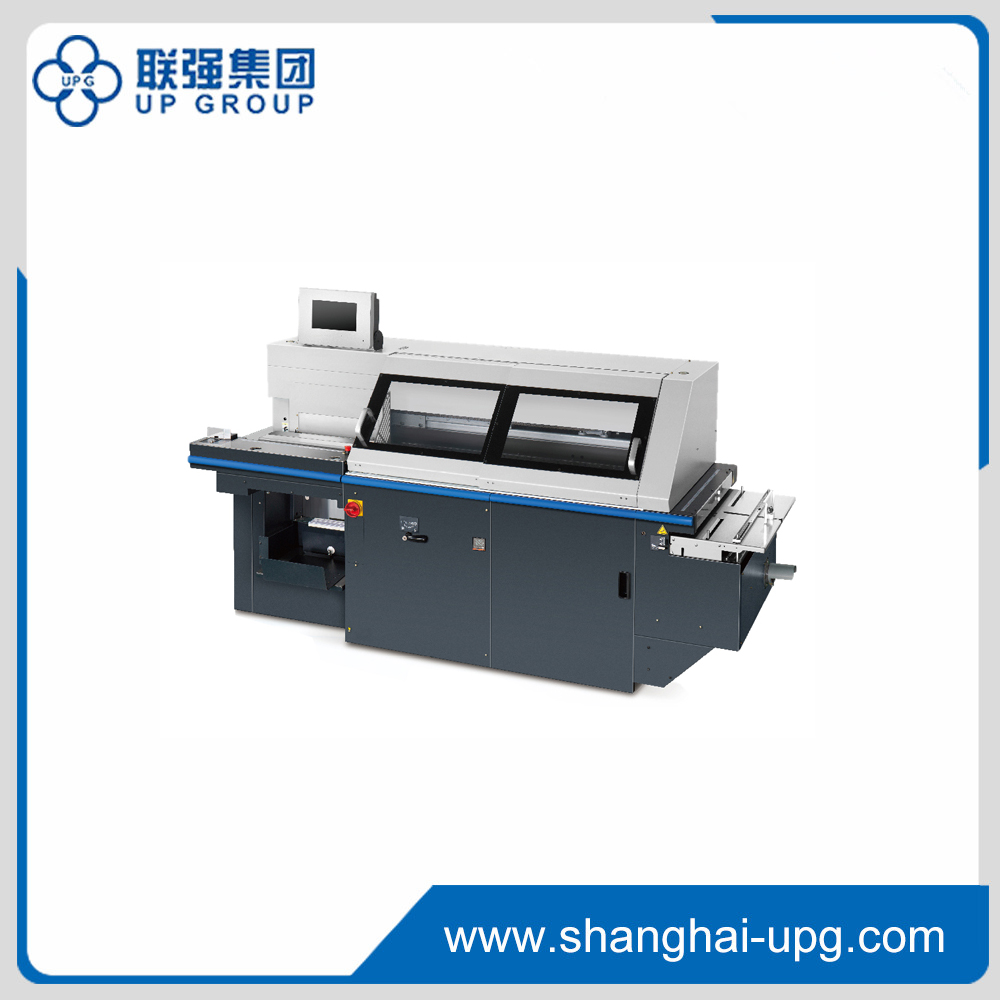

LQ-270BE
UPG
1.Automatic single clamp book binder, easy and convenient to operate
2.Automatic cover feeder, reduce manual operation
3.Automatic adjustment for changing job, A4-A5 size switching could be completed in 10 seconds
4.Book block thickness could up to 50mm
5.Suitable for 1-1000 multi-size, small quantity job Max.Speed up to 500books/hour, working speed more than 400books/hour. Automatic creasing and side gluing, binding quality is good enough to compare with heavy duty binder.
6.User-friendly operation, high-precision automatic adjustment, energy saving and environmental protection. Best choice for digital printing job.
7.Automatic measurement for book thickness, very convenient.
1.Automatic single clamp book binder, easy and convenient to operate
2.Automatic cover feeder, reduce manual operation
3.Automatic adjustment for changing job, A4-A5 size switching could be completed in 10 seconds
4.Book block thickness could up to 50mm
5.Suitable for 1-1000 multi-size, small quantity job Max.Speed up to 500books/hour, working speed more than 400books/hour. Automatic creasing and side gluing, binding quality is good enough to compare with heavy duty binder.
6.User-friendly operation, high-precision automatic adjustment, energy saving and environmental protection. Best choice for digital printing job.
7.Automatic measurement for book thickness, very convenient.
Binding type | Binding with milling, Binding without milling, and Pad binding |
Ouantity of book clamp | 1 |
Book block size | Max. 320*320mm |
Min. 135*105mm | |
Thickness of the book | 2-50mm |
Cover size (unfold size) | Max.320x660mm |
Min.135x230mm | |
Book cover thickness | 82-302 gsm |
Height of cover pile | Max. 70mm |
Motor speed | Max. 500 cycles per hour |
Voltage/frequency | 3phase380V50HZ, 3phase220V60HZ |
Total power | 9KW |
Machine dimension | 2450(L)x910(W)x1545(H)mm |
Machine weight | 900kg |
Binding type | Binding with milling, Binding without milling, and Pad binding |
Ouantity of book clamp | 1 |
Book block size | Max. 320*320mm |
Min. 135*105mm | |
Thickness of the book | 2-50mm |
Cover size (unfold size) | Max.320x660mm |
Min.135x230mm | |
Book cover thickness | 82-302 gsm |
Height of cover pile | Max. 70mm |
Motor speed | Max. 500 cycles per hour |
Voltage/frequency | 3phase380V50HZ, 3phase220V60HZ |
Total power | 9KW |
Machine dimension | 2450(L)x910(W)x1545(H)mm |
Machine weight | 900kg |
