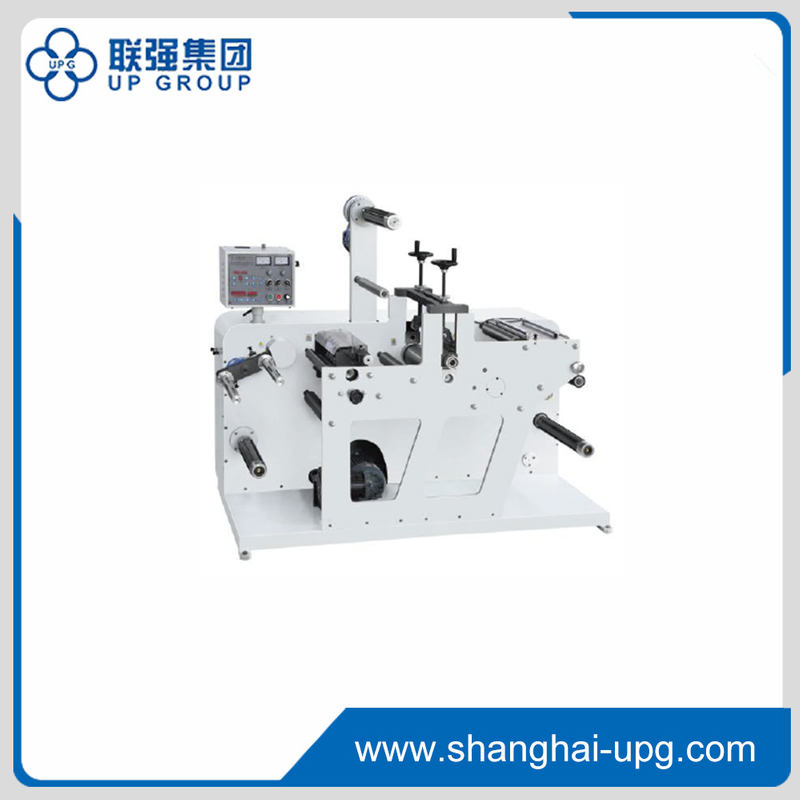

LQ-320 Slitting Machine

LQHSD-320G slitting machine with rotary die cutting station With Unwinding unit with magnetic power ,web guiding device ,rotary die cutting station ,Nipping roller , Slitting unit ,wasting rewinding unit with tape tension ,fan for wasting , turret rewinding with 1.5inch shaft (Upper )with magnetic clutch, Down rewinding with 3 inch shaft with magnetic clutch.

Availability:

Quantity:



Inquire Add to Basket PDF Export

Model:
LQ-320
Brand:
LQ

LQ-320 Rotary die cutting machine is a machine only die cutting for blank label . It has functions of automatic meter counting, number counting ,The unwinding is controlled by photoelectric eyes .The structure is compact with high speed ,high efficiency ,easy and stead operation.

LQ Automatic high speed slitting machine with knife auto setup

Synchro-Fly High-Speed Sheeting Machine

LQ-3201 Slitting Machine

LQ-1400ST/1650ST/1900ST Servo controlled high speed sheeter

LQFQ-1000 Automatic Card Slitting & Collating Machine

Slitting Speed	120m/min
Max.Web Width	320mm
Max.Unwinding Diameter	550mm
Max.Rewinding Diameter	400mm
Die-cutting length	177-476mm
Precision of Slitting	±0.15mm
Dimension(LWH)	180011001500mm
Weight	800KG
Voltage	220V 1phase

Slitting Speed	120m/min
Max.Web Width	320mm
Max.Unwinding Diameter	550mm
Max.Rewinding Diameter	400mm
Die-cutting length	177-476mm
Precision of Slitting	±0.15mm
Dimension(LWH)	180011001500mm
Weight	800KG
Voltage	220V 1phase

Model	LQ-320

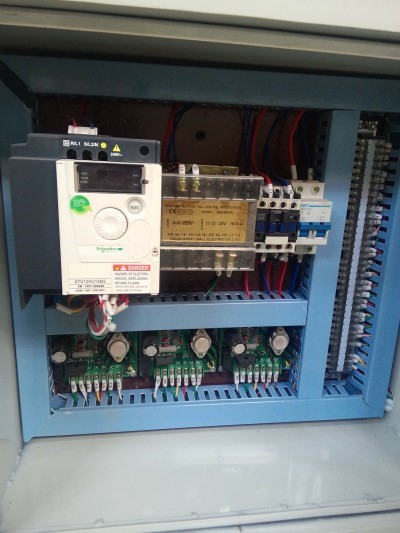

Frequency transformer	Schneider
Manual tension for unwinding	ZXT(China)
Manual tension for rewinding	ZXT(China)

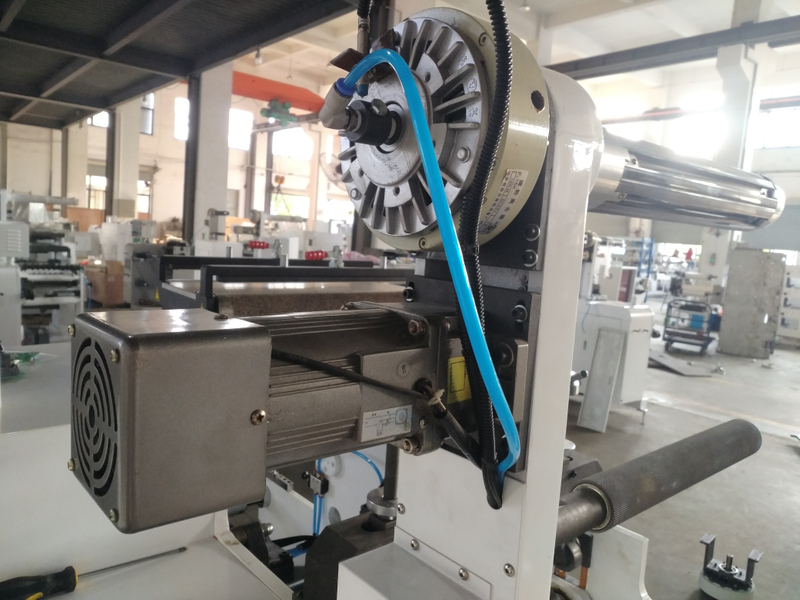

Magnetic Clutch	Guanhua(China)
Magnetic brake	Guanhua(China)
Web Guiding	China
Counting	SICK from Germany
Photoelectric	CNBD China
Sensor	Shielded sensor
Power Switch	Schneider
Pneumatic Switch	Schneider
Switch	CHNT(China)
Shaft 3inch for unwinding	1pcs
Shaft 1.5inch for upper rewinding	2pcs
Shaft 3inch for Down rewinding	1pcs

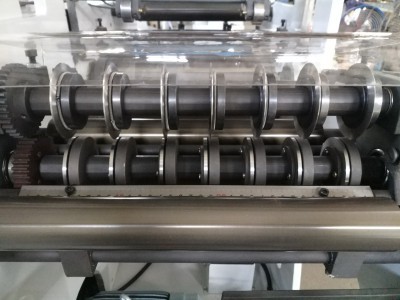

Rotary blade	7set

Model	LQ-320
Frequency transformer	Schneider
Manual tension for unwinding	ZXT(China)
Manual tension for rewinding	ZXT(China)
Magnetic Clutch	Guanhua(China)
Magnetic brake	Guanhua(China)
Web Guiding	China
Counting	SICK from Germany
Photoelectric	CNBD China
Sensor	Shielded sensor
Power Switch	Schneider
Pneumatic Switch	Schneider
Switch	CHNT(China)
Shaft 3inch for unwinding	1pcs
Shaft 1.5inch for upper rewinding	2pcs
Shaft 3inch for Down rewinding	1pcs
Rotary blade	7set
