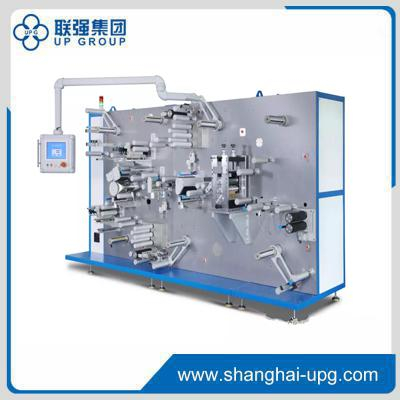

LQ-A6000 RFID label lamination machine

Totally 3 layers can be laminated, the facer and linear could be P/S label and/or paper while put glue on it inline.

Quantity:
  • LQ-A6000
  • UPG

Specification

1. Mechanical Speed: Max. 60m/min. (depends on the jobs and functions

selected)

2. Unwinder: Max. Web width 190mm; Max. Diameter 500mm

3. Rewinder: Max. Web width 190mm; Max. Diameter 500mm

4. Inlay Size: Max. Width 160mm; Max. Cutting Length 100mm, Min. 20mm

5. Assistant Rewinder: Max. Width 180mm; Max. Diameter 450mm

6. Die cutting: Max. Length 550mm; Max. Width 180mm

7. Power Supply: 220V 60Hz 15kw (Glue Tank not included)

8. Air Compress: 0.5Mpa 100L/min

9. Machine Size (based on standard configuration): L 4m; W 1.6m; H 2.4m

10. Weight: 2460kg

Tolerance

1. Registration of Substrates at Axle direction: ±0.1mm

2. Inlay Cutting Tolerance: ±0.3mm

3. Inlay Positioning tolerance: ±0.3mm

4. Registration of Substrates at Speed Direction: ±0.5mm

5. Die cutting Tolerance±0.2mm

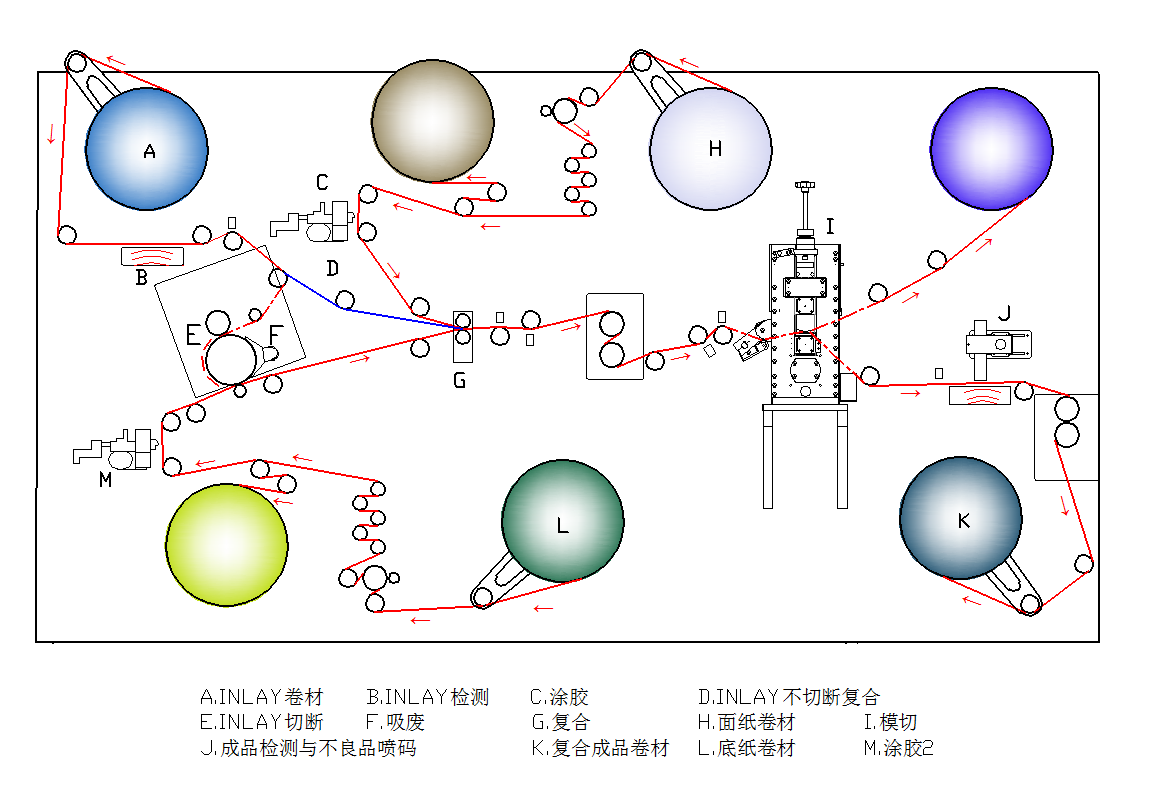

Functions

1. Production description: totally 3 layers can be laminated, the facer and

linear could be P/S label and/or paper while put glue on it inline.

2.Web-guide: independent guide control for different layers.

3.Inlay cut: cut Inlay in pieces

4.Gluing system: 1 glue tank with 2 heads which can control them

independently including the quantity of the glue, the heads can suck the glue

back if the machine stop.

5.Die cutting function: every die cutting module can be controlled individually.

6.Final label detecting: final product can be detected and put mark on the bad

ones.optional

7.Final product collecting: rewinder to roll(s).

8.Facer and Linear registration: the machine can trace the mark on the layers

and register them automatically.

9.Inlay registration: the machine can trace the marks on Inlay and layers, cut

the Inlay in the right position and transfer it to the position it should be

automatically; Inlay can also be transferred according to the setup and put

them equidistantly if there are no marks on the layers.

10.Control data/parameters: verify data/parameters can be download form

control panel.

11.Equipment maintenance: all the functions to be controlled and debug

individually, while the I/O monitor them separately.

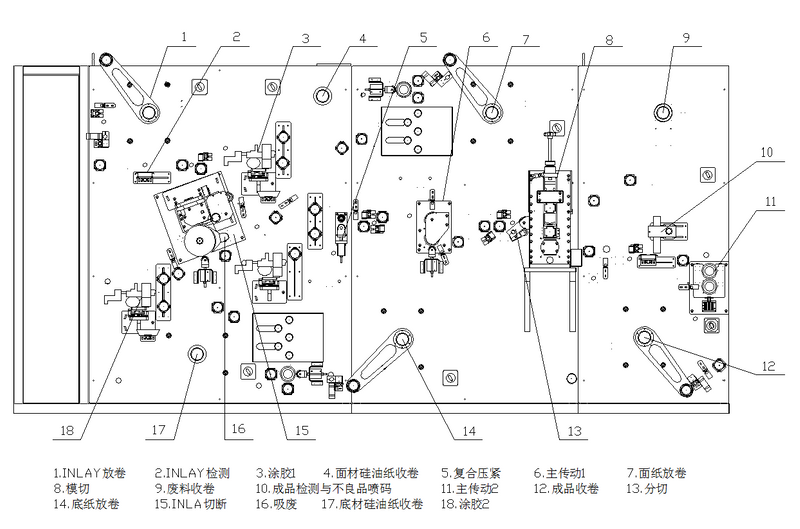

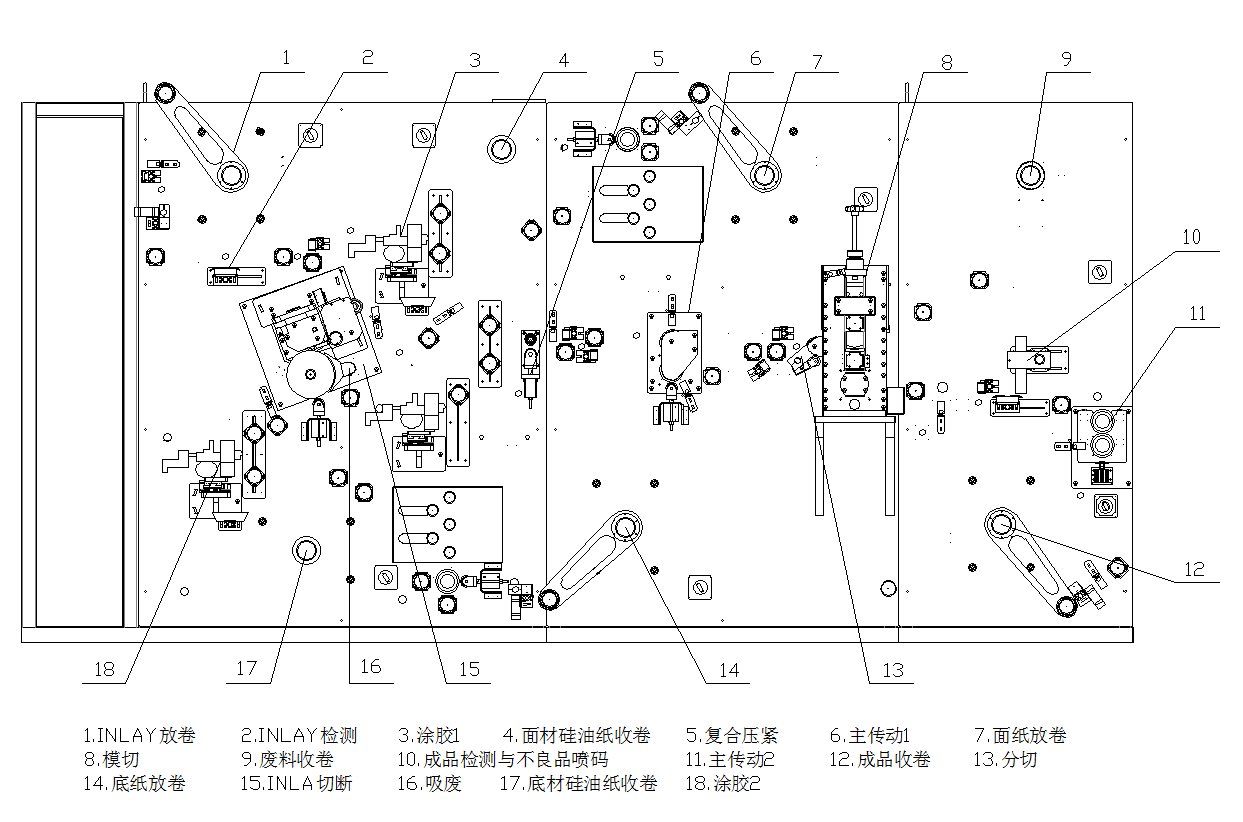

Configuration

1.Unwinders: for facer, Inlay and linear

2.Tension control: every layer including Inlay control independently.

3.Web guide system: every layer including Inlay control independently.

4.Inlay cutting device.

5.Vacuum cylinder: cut Inlay and transfer it to the facer layer.

6.Gluing system: 1 preheating tank with 2 glue heads, variable frequency drive

motor can control the glue quantity with a metering pump and the tolerance is

±5%, 8.8kw power.

7.1 die cutting module (more station available as option)

8. Final product detecting: detect the final product and put mark on the label

with bad Inlay.optional

9.Rewinders: for final products, P/S label linear or waste-rewind.

10.Control system: PMAC control system to guarantee the registration

accurate.

11.Touch screen interface: big screen with 3 link rods imported from Germany.

12.Static elimination: 10 pcs static elimination bar mounted in multiple place

including Inlay unwinder, cutting, lamination and rewinder, etc.
