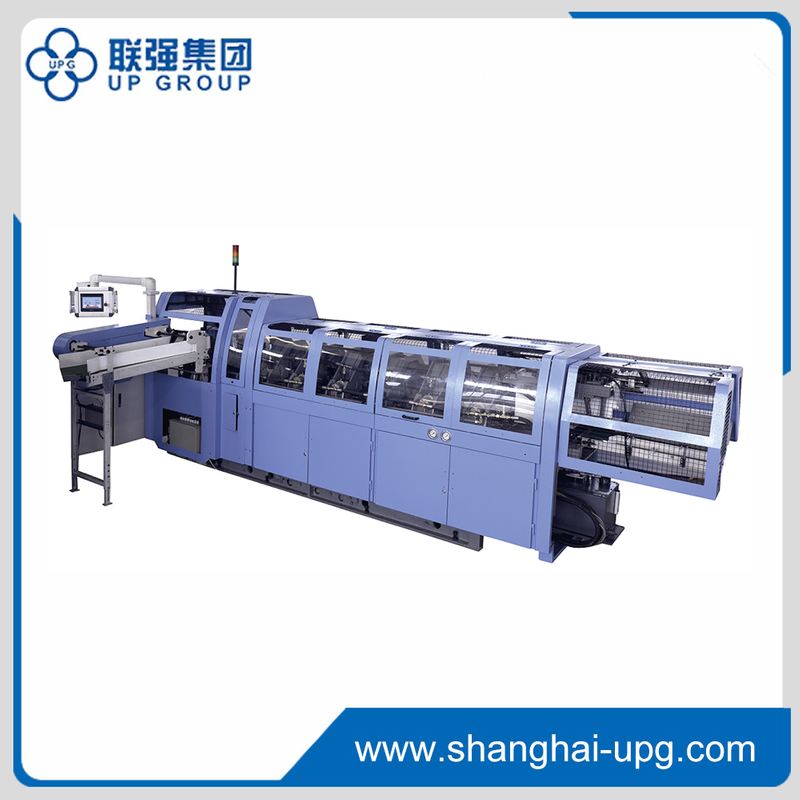

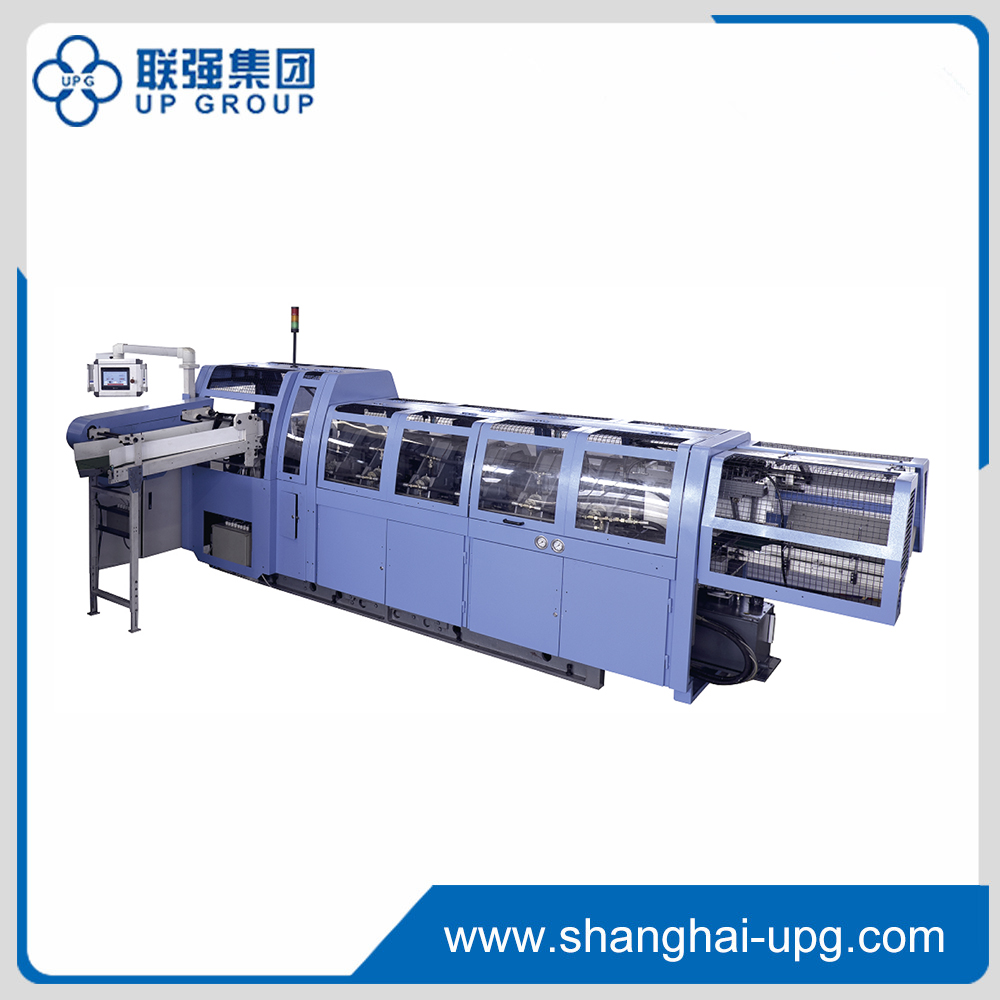

LQ-AUSCP-RK50(2)
UPG
Product application:
Designed for fine hardback and softback books, this machine is used for the pressing and creasing operations after casing-in, enhancing the book’s appearance and making it easier to open and read.
Product composition:
Components: The machine includes a control system, pre-positioning mechanism, book pushing mechanism, book conveying system, book pressing unit, groove hot pressing shaping mechanism, book discharge conveying system, book collection unit, and a hydraulic system.
Functions & features:
· Storage and Memory: The machine can store historical data for easy recall and allows for presetting and saving of new data.
· Automatic Adjustments: Input the dimensions of the cover and book thickness via a touchscreen. The servo drive system automatically adjusts multiple parameters such as book conveyor length, book pressing thickness, groove depth positioning, and book handling, offering convenience, precision, and high efficiency when changing specifications.
· Fault Detection: The machine halts and issues an alarm, displaying the fault when a malfunction occurs.
· Book Entry: Books that have been cased by the casing machine are sequentially fed onto the conveyor belt, held in place by an electromagnetically controlled stopper.
· Book Positioning: After release by the electromagnetic stopper, books enter the flipping station spine down, guided into position on the support tray by a book pusher rod, with precise width positioning by the pressing rod.
· Book Clamping: A clamping mechanical hand, powered by the hydraulic system, sequentially feeds the books into the working position.
· Book and Groove Formation: The groove forming mechanism takes the books fed by the mechanical hand, performing six consecutive pressing and hot pressing cycles to shape the groove.
· Book Discharge: Finally, the discharge mechanical hand holds the finished books, placing them onto the discharge conveyor belt, completing the book shaping and creasing process.
· Hydraulic System: Provides the necessary power for book pressing and creasing, ensuring consistent pressure regardless of minor variations in book thickness
· Automatic Lubrication: Features a timed and quantified automatic lubrication system, which ensures al major lubrication points receive oil during operation.
Technical Data:
Book Size | Max: 375×310 mm Min: 135×100 mm |
Book Thickness Range | 4-60 mm |
Max. Mechanical Speed | 50 cycles/min |
Total Power | 19 kw |
Voltage Requirement | 380 V |
Frequency | 50 Hz |
Net Weight | 4200 kg |
Dimensions | 5780×2465×1755 mm |
