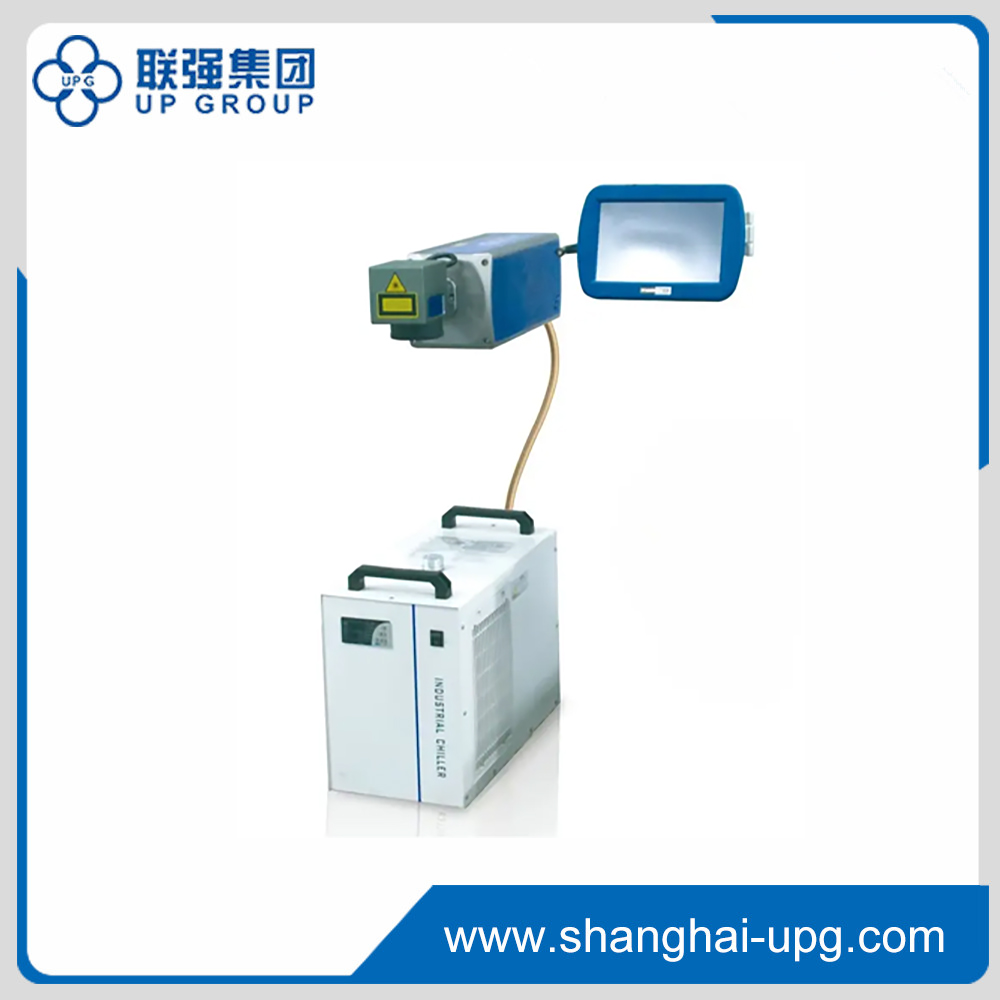

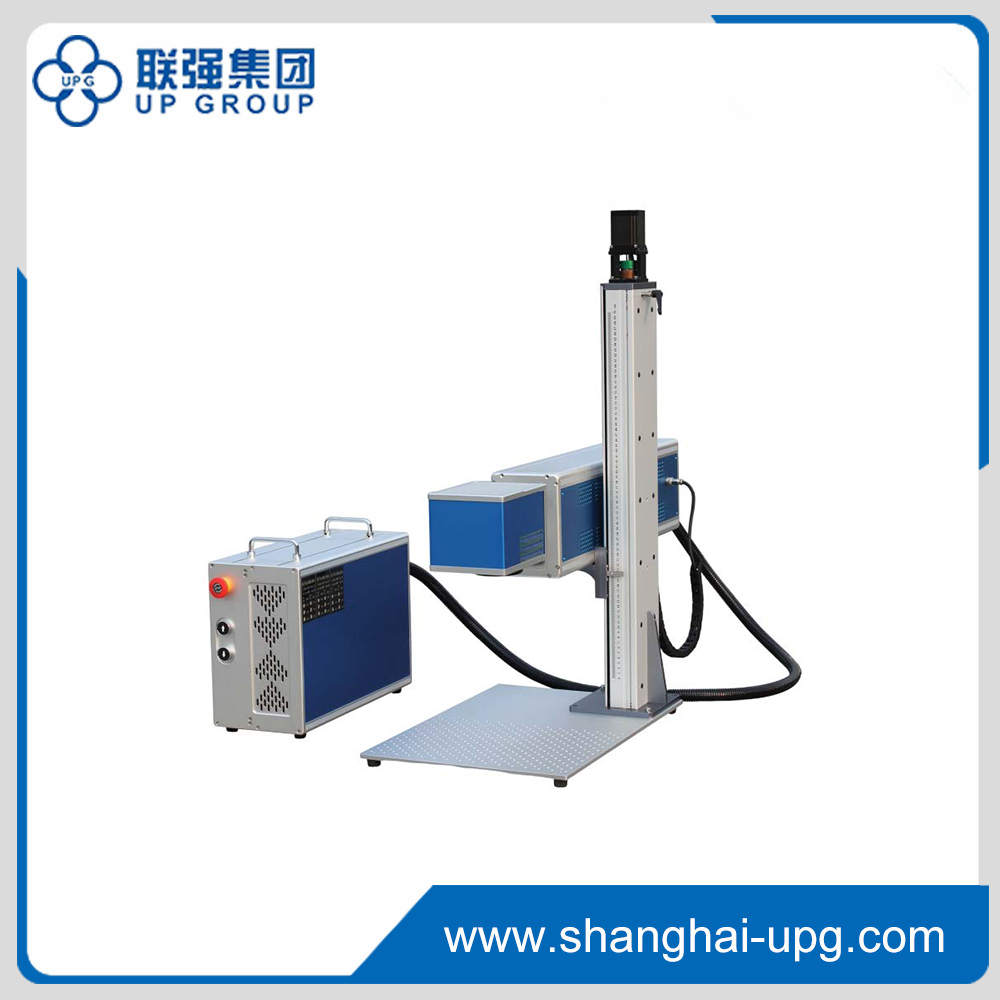

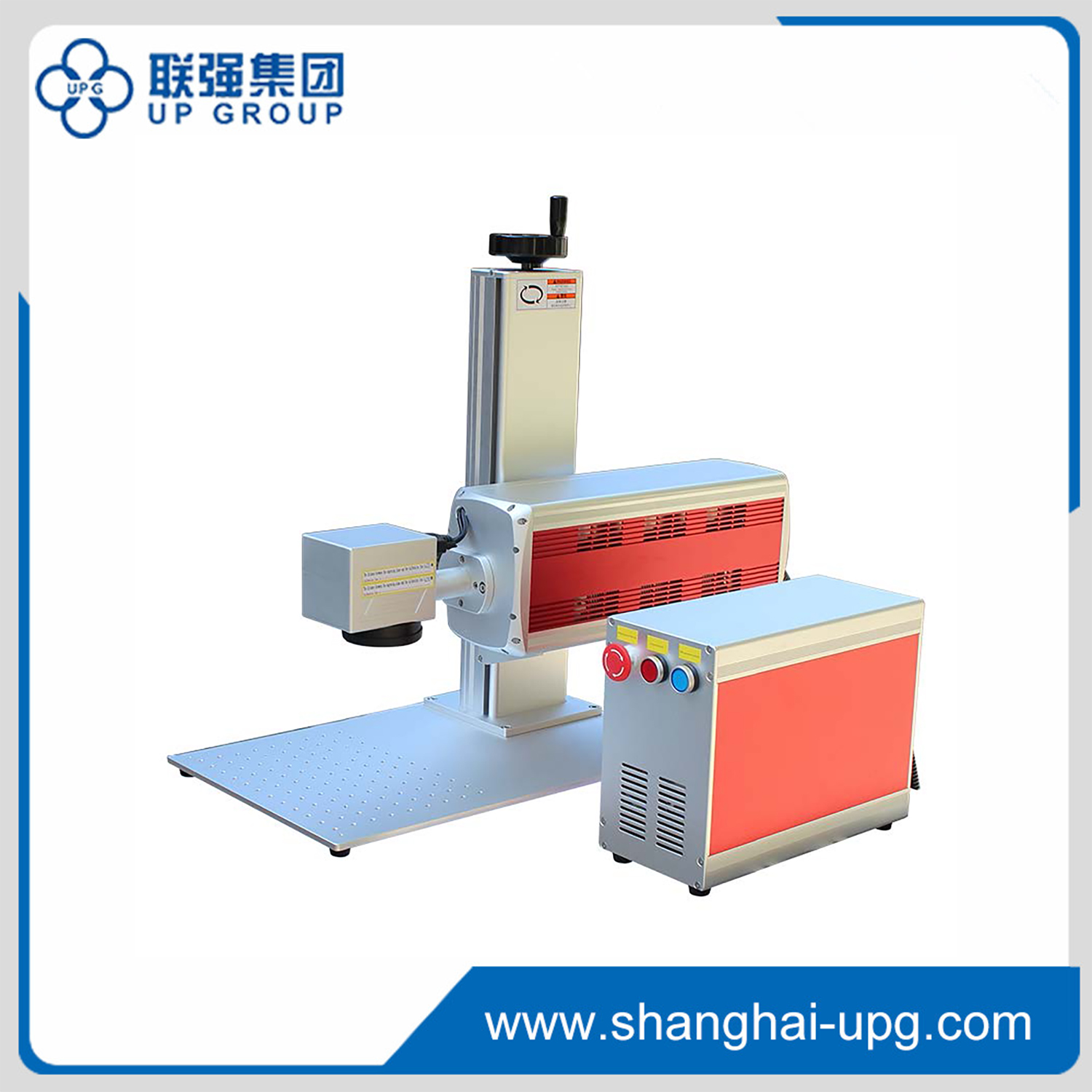

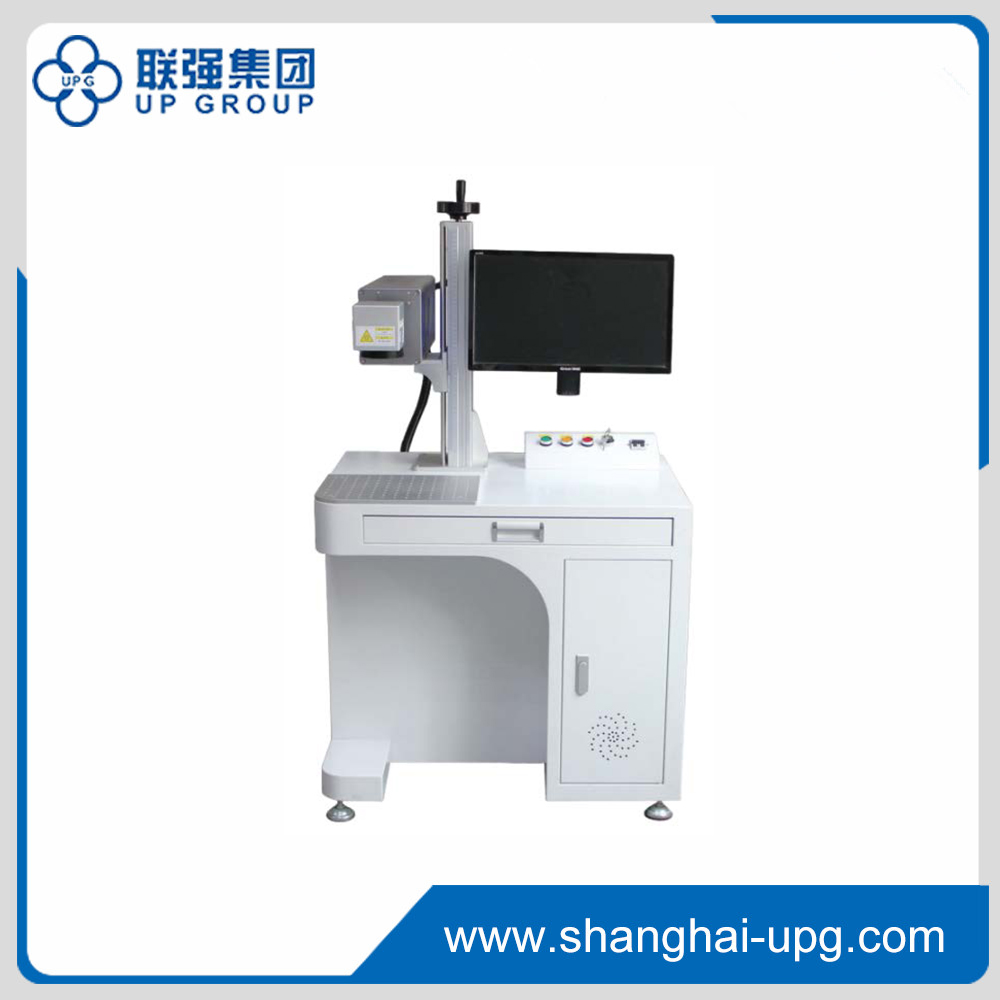

LQ-CO2 Laser Marking Machine

LQ-CO2 laser coding machine is a gas laser coding machine with relatively large power and high photoelectric conversion efficiency. The working substance of the LQ-CO2 laser coding machine is carbon dioxide gas, by filling the carbon dioxide and other auxiliary gases in the discharge tube, and applying high voltage to the electrode, laser discharge is generated, so that the gas molecule emits laser energy, and the emitted laser energy is amplified, laser processing can be carried out.

The LQ-CO2 Laser Marking Machine is a versatile and high-performance device designed for marking, engraving, and cutting non-metallic materials such as wood, glass, leather, paper, plastics, and ceramics. It uses a CO2 laser as the marking source, which operates at a wavelength suitable for organic and polymer-based materials, producing clear, smooth, and permanent markings without contact or wear on the material.

This machine is widely employed in industries such as packaging, electronics, automotive, and textiles for marking serial numbers, bar codes, logos, and decorative designs. The LQ-CO2 Laser Marking Machine excels in high-speed operations and is particularly effective for marking large areas and intricate patterns.

With adjustable power levels and settings, it offers flexibility in controlling depth and intensity for different applications. Its user-friendly interface supports most design software, making it easy to customize marking tasks. Additionally, the machine’s stable performance and long lifespan ensure reliable and efficient operation in demanding industrial environments. Designed for durability and precision, it is a cost-effective solution for businesses looking to enhance product traceability and branding.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
LQ-CO2 Laser Marking Machine
LQ-CO2 Laser Marking Machine
LQ-CO2 Laser Marking Machine
LQ-CO2 Laser Marking Machine
LQ-CO2 Laser Marking Machine

  • LQ-CO2

  • UPG


Material UV Laser Fiber Laser Co2 Laser
Plastic ABS Excellent Excellent Average
PBT Excellent Excellent Average
PI Excellent Average Average
PET Excellent Failing Excellent
PVC Excellent good Excellent
EP Excellent Excellent good
PA/PC/PP/PE/PPS/PS/Glass Epoxy Resm Excellent good good
Metal Stainless Steel/lron/Aluminium good Excellent Failing
Nickel/Copper/Gold Excellent good Failing
Other Ceramic Excellent good good
Silicon Excellent good Average
Paper & Cardboard good good Excellent
Rubber Excellent Excellent Excellent
Glass Average Failing Excellent
Wood good Average Excellent
Material & Marking Requirement UV Laser Fiber Laser Co2 Laser
Marks on Metals Excellent Excellent Failing
Marks on Transparent Products good Below Average Excellent
Colored Marks on Plastics/Super-Tiny Marks Excellent Excellent Average
Laser Die Cutting Processing Excellent Excellent Below Average
Limited Space for installation good good good
Marks in movement/Precise Marks/
Low limitation on Operating Environment		 Excellent Excellent good
Low Operating Costs/High Flexibility for Marks/ Control by Computer/For overseas Market/ Permanent Marks/Laser Cutting Drilling and Clearing Processing/Low Maintenance/ Marks on large Area Excellent Excellent Excellent
The above evaluations are just general examples,when choosing an ideal laser marker,the workpieces and site conditions should be considered as well.Please consult our sales representative for assistance
Excellent=Excellent,good=Good,Average=Average,Below Average=Below Average,Failing=Failing


Application Industry: Food, beverages, alcoholic beverages, pharmaceuticals, pipe cables,daily chemicals, packaging, electronics, etc.


Marking Materials: PET, acrylic, glass, leather, plastic, fabric, paper boxes, rubber, etc, such as mineral water bottles, cooking oil bottles, red wine bottles, food packaging bags, etc.


LQ-CO2 Laser Marking Machine
演示文稿1_00

Technical Parameters

Equipment ModelLQ-CO2  Laser Marking Machine
Laser Machine FeaturesMain Machine MaterialFull aluminum structure
Laser Output Power30W/40W/60W/100W
Laser Wavelength10.6um
Marking Speed≤10000mm/s
Marking SystemLaser coding screen
Operating Platform10-inch Touch screen
InterfaceSD card interface/usb 2.0 interface
Lens RotationScanning head can rotate 360 degrees at any angle
Power RequirementsAc220v, 50-60hz
Total Power Consumption700w
Protection LevelIp54
Total Weight70kg
Total Size650mm*520mm*1480mm
Pollution LevelThe marking itselfdoes not produce any chemicals
Storage

-10°C-45°C(Non-freezing)


download Laser printer.pdf
