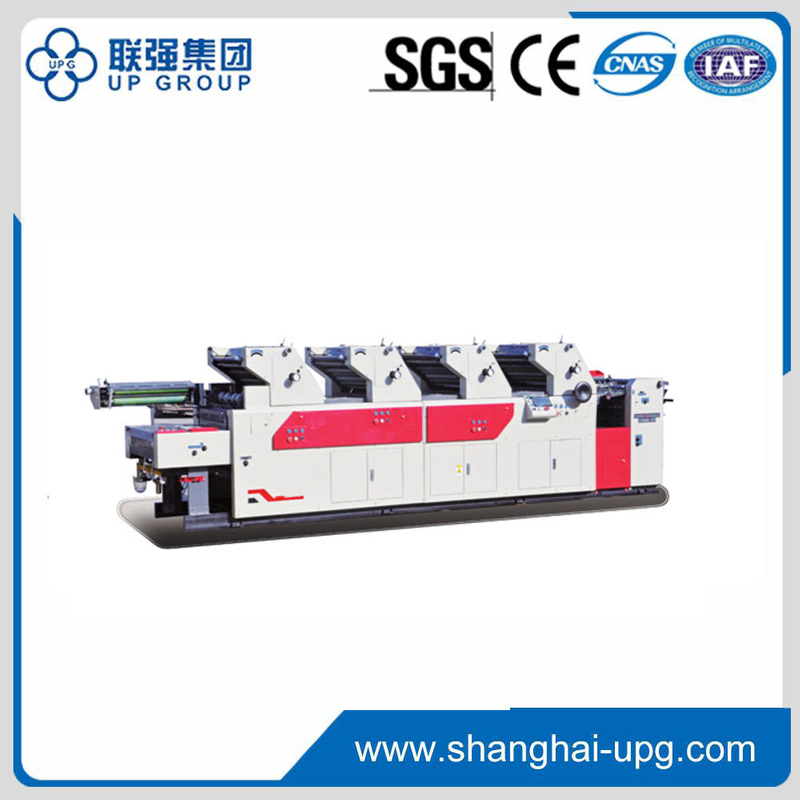

LQ-Cf47/56/62-4/NP
LQ
Feature
Printing is needed everywhere and involved in every industry. The request for the colorful production in increasing. However ,the colorful printing for thin paper and small quantity can not be finished by big and multicolor press,therefore,according to market demand. We develop this new small unit type offset press
1. Two printing units closely arranged,there is enough space for operation
2 It adopts the transfer feeder type same as heavy-duty,with small errors and ensure the overprint precision
3 It could do printing for thin paper,thick paper,self-adhesive paper and color printing with precise guide and small deformation
4 It adopts the automatic ink and pressure device
5 It use Plc controllers and photo detectors from Japan
6 It has automatic oil supply system
7 There is also optional numbering system
Feature
Printing is needed everywhere and involved in every industry. The request for the colorful production in increasing. However ,the colorful printing for thin paper and small quantity can not be finished by big and multicolor press,therefore,according to market demand. We develop this new small unit type offset press
1. Two printing units closely arranged,there is enough space for operation
2 It adopts the transfer feeder type same as heavy-duty,with small errors and ensure the overprint precision
3 It could do printing for thin paper,thick paper,self-adhesive paper and color printing with precise guide and small deformation
4 It adopts the automatic ink and pressure device
5 It use Plc controllers and photo detectors from Japan
6 It has automatic oil supply system
7 There is also optional numbering system
Model | LQ-Cf62II-4/NP | LQ-Cf56II-4/NP | LQ-Cf47II-4/NP |
Max printing area | 605*440 | 544*380 | 454*345 |
Max paper size | 620*450 | 560*390 | 470*365 |
Min paper size | 260*180 | 200*148 | 90*140 |
Paper type | 17g-250gsm | ||
Number of ink rollers | 14 PIECES(3 FORM ROLLERS) | ||
Number of water rollers | 4 PIECES(2 FORM ROLLERS) | ||
Register mechanism | ROLLER TYPE SIDE GUIDE | ||
Printing speed | 2000-7000 SHEET/HOUR | ||
WEIGHT | 1000KG/1200KG | 900KG/1100KG | 800KG/1000KG |
Motor Power | 1.5kw main motor, pump motor 0.55kw | ||
Voltage | 220V/50HZ(220V/60HZ OPTIONAL) |
Model | LQ-Cf62II-4/NP | LQ-Cf56II-4/NP | LQ-Cf47II-4/NP |
Max printing area | 605*440 | 544*380 | 454*345 |
Max paper size | 620*450 | 560*390 | 470*365 |
Min paper size | 260*180 | 200*148 | 90*140 |
Paper type | 17g-250gsm | ||
Number of ink rollers | 14 PIECES(3 FORM ROLLERS) | ||
Number of water rollers | 4 PIECES(2 FORM ROLLERS) | ||
Register mechanism | ROLLER TYPE SIDE GUIDE | ||
Printing speed | 2000-7000 SHEET/HOUR | ||
WEIGHT | 1000KG/1200KG | 900KG/1100KG | 800KG/1000KG |
Motor Power | 1.5kw main motor, pump motor 0.55kw | ||
Voltage | 220V/50HZ(220V/60HZ OPTIONAL) |
