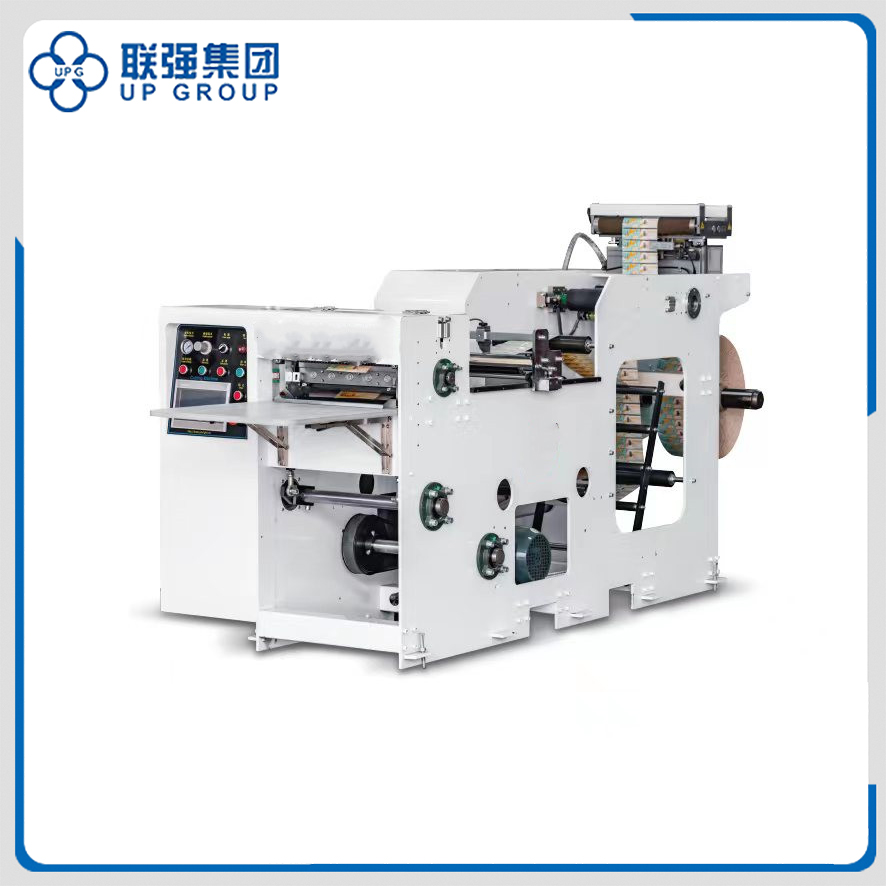

LQ-D350 High Speed Shrinkable Film Labels Cutting Machine

Availability:

Quantity:



Inquire Add to Basket PDF Export

Features

1.Entire machine is controlled by PLC, with man-machine interface touch screen operation.

2.Unwinding is driven by magnetic powder.

3.Traction is driven by a servo motor to accurately locate the length of the slice.

4.Cantilever design allows for easy operation; a single operator is required to operate the machine.

5.Automatic shutdown for unwinding.

6.Highly sensitive electric eye control.

7.Configure remote diagnostics.

8.The mechanical parts of the equipment are made using a gantry machining center and CNC machine tools.

No.	Specifications	Details
1	Applicable Materials	Designed for the center seaming operation of shrink sleeves such as PVC, PET, PETG, and OPS
2	Mechanical Speed	0-600m/min
3	Unwind Diameter	Ø700mm (Max)
4	Unwind Core Inner Diameter	3"/76mm or optional 6"/152mm
5	Material Width	20-400mm
6	Tube Width	20-400mm
7	Tolerance of EPC	±0.15mm
8	Guider Movement Range	±25mm
9	Rewind Diameter	Ø700mm (Max)
10	Rewind Core Inner Diameter	3"/76mm or optional 6"/152mm
11	Total Power	≈7Kw
12	Voltage	AC 380V 50Hz (three-phase four-wire system)
13	Overall Dimension	L2220mmW1260mmH1560mm
14	Weight	≈1000kg
15	Applicable Materials	Point breaking and slicing of PVC, PET, PETG, OPS and other shrinkable film labels; Slices of electronic, computer, optical materials, film rolls, etc.
16	Mechanical Speed	50-500Pcs/Min
17	Unwind Diameter	Ø700mm (Max)
18	Unwind Core Inner Diameter	3"/76mm or optional 6"/152mm
19	Material Width	30-300mm
20	Length of Product	10-1000mm
21	Tolerance	≤0.2mm
22	Total Power	≈5Kw
23	Voltage	AC 220V 50Hz
24	Overall Dimension	L3200mmW1000mmH1150mm
25	Weight	≈1300kg
