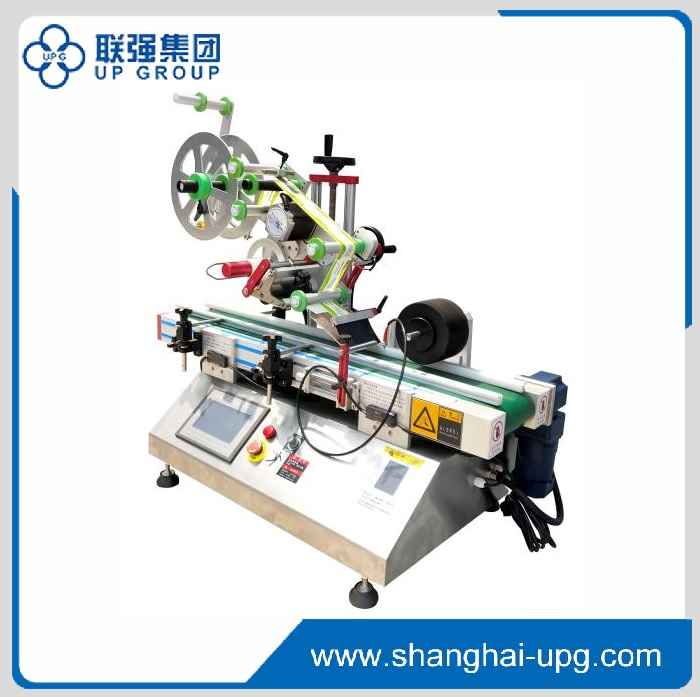

LQ-DL-F Flat Surface Labeling Machine

This machine is used to label the adhesive labe on the flat surface. It is a small machine with low price which can put on desk.
Availability:
Quantity:

PDF Export

  • LQ-DL-F

  • UPG

Introduction:

This machine is used to label the adhesive label on the flat surface.

Application industry: widely used in food, toys, daily chemicals, electronics, medicine, hardware, plastics, stationery, printing and other industries.

Applicable labels: paper labels, transparent labels, metal labels etc.

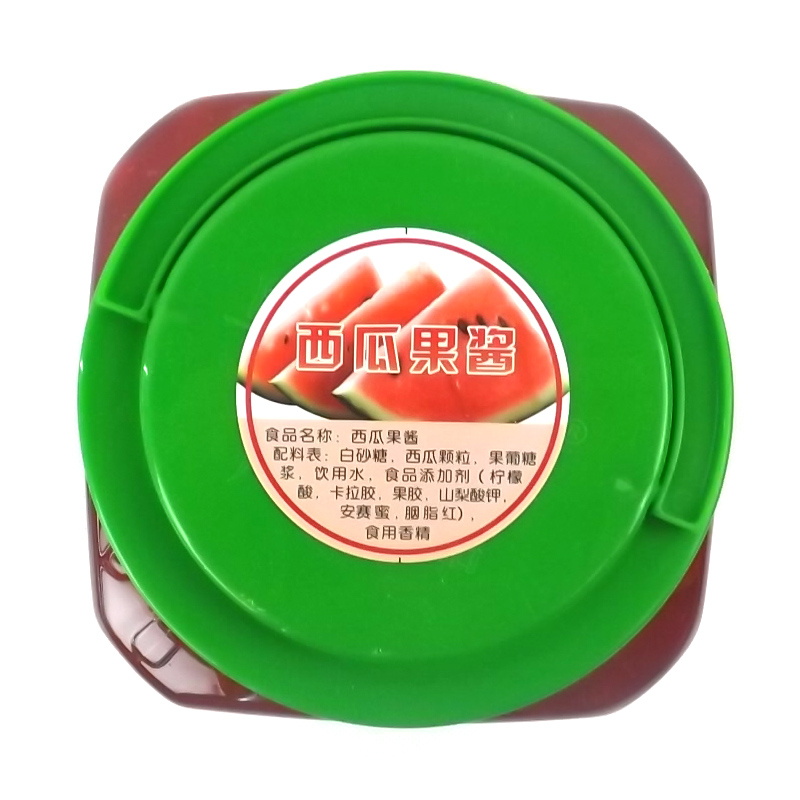

Application examples: carton labeling, SD card labeling, electronic accessories labeling, carton labeling, flat bottle labeling, ice cream box labeling, foundation box labeling etc.


Operation process:

Put the product on the conveyor by manual (or automatic feeding of the product by other device) -> product delivery -> labeling (automatic realized by the equipment)

IMG_2745(20200629-130021)IMG_2747(20200629-130028)IMG_2744(20200629-130015)

Feature:

1.Labeling on flat top, and it's adjustable for different sized products.The labeling machine will automatically detects the label size and set the appropriate labeling parameters – a very useful feature for users with multiple products to label.

2. High precision and stability of labeling.

3. Made of stainless steel material, reasonable structure, beautiful appearance, small and light.

4. Intelligent control: automatic photoelectric tracking, automatic detection function, to prevent leakage and label waste, 7-inch touch screen debugging data.

5. The whole machine is easy to adjust for different product size and different label size.

6. The machine is light and convenient.

7. Taiwan optical fiber amplifier, digital adjustment accuracy.

8. Labeling machine produced accordance with CE certificated.


Machine Name

LQ-FL Flat Labeling Machine

Power Supply

220V, 50Hz, 400W, 1Ph

Labeling Speed

20- 60 pcs/min

Labeling Accuracy

±1 mm

Product Size

W:25-150mm   L:20-250mm

Label Size

W:20-150mm   L:10-250mm

Inner Dia. of Roller

76 mm

Outer Dia. of Roller

300 mm

Machine Size

L*W*H: 1200mm * 600mm * 750mm

Machine Weight

85 KG
