LQ-F3B
UPG
Description:

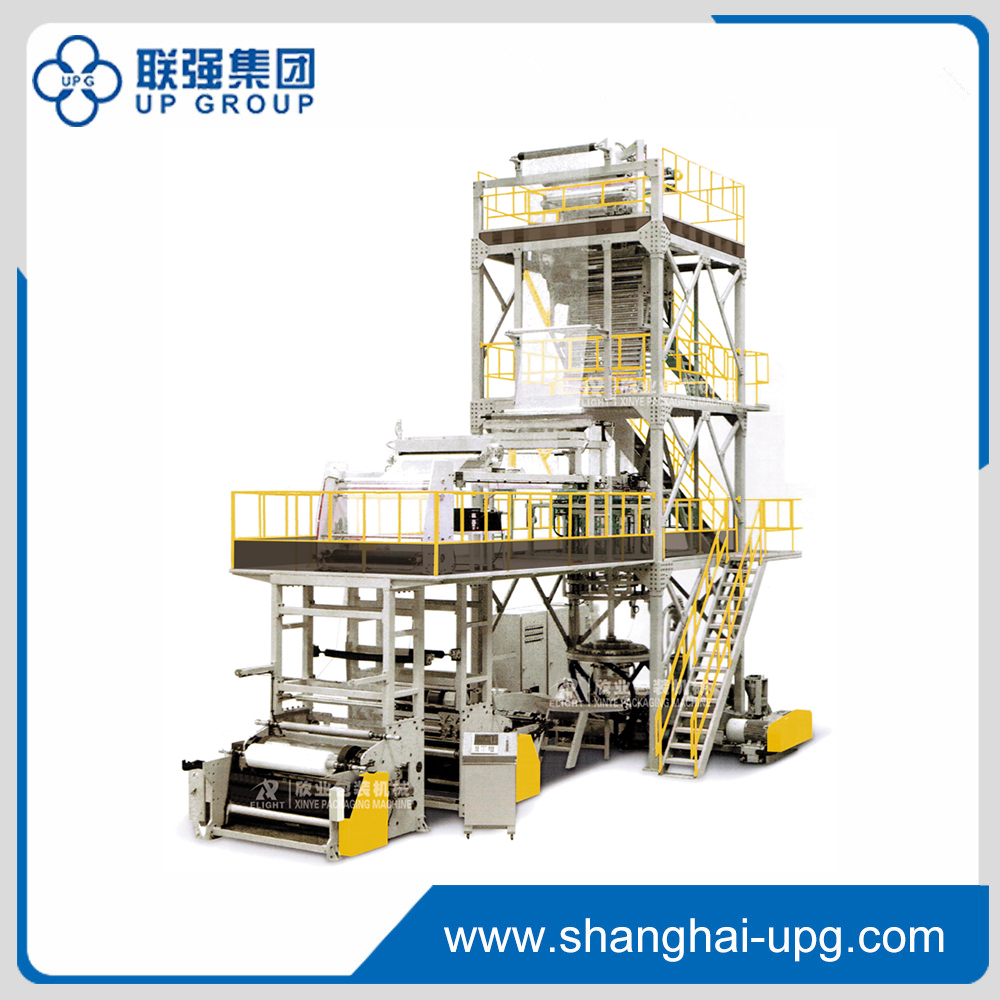

Three-to-Seven-layer co-extruding upper traction rotation blown film machine unit is designed and developed according to the market demands at the basis of domestic and foreign advanced technology. It is applied to packing with medium and high end film. The film is of well barrier property, retaining freshness, moisture-proof, frost prevention, oxygen proof and oil-proof. So it can be widely applied to the light-weight packing, such as fresh fruits. meat, pickles, fresh milk, drink, medicine, etc.
Three to seven layers co-extruding die head adopts the internationally advanced superposed die heads, of which each layer can heat and receive thermal insulation medium independently and insulate the heat effectively, which is good for blowing and making plastic film with different temperature. The die head is of advanced construction to ensure the steady fluid and thickness of film.
Technical parameters:
| Model | LQ-F3B-1300 | LQ-F3B-1600 | LQ-F3B-1800 | LQ-F3B-2200 |
| Suitable material | LDPE, LLDPE, HDPE | |||
| Width of film | 1200mm | 1500mm | 1700mm | 2000mm |
| Thickness of film | 0.02-0.20mm | 0.02-0.20mm | 0.02-0.20mm | 0.02-0.20mm |
| Max. Extrusion output | 160kg/h | 200kg/h | 240kg/h | 340kg/h |
| Screw diameter | Φ45/Φ55/Φ45mm | Φ50/Φ60/Φ50mm | Φ55/Φ65/Φ55mm | Φ70/Φ85/Φ70mm |
| Screw ratio | L/D30:1 | L/D30:1 | L/D30:1 | L/D30:1 |
| Screw speed | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Power of main motor | 15kw/22kw/15kw | 18.5kw/30kw/18.5kw | 22kw/37kw/22kw | 37kw/55kw/37kw |
| Air ring structure form | Double air vent air ring | |||
| Rotary traction form | Horizontal ±360° | |||
| Total power | 120kw | 140kw | 160kw | 200kw |
| Weight of machine | 12T | 14T | 16T | 20T |
| Overall dimension(L×W×H) | 9.5×5.0×9.0m | 10×5.5×9.5m | 10×6.0×10.5m | 10.5×7.0×11m |
