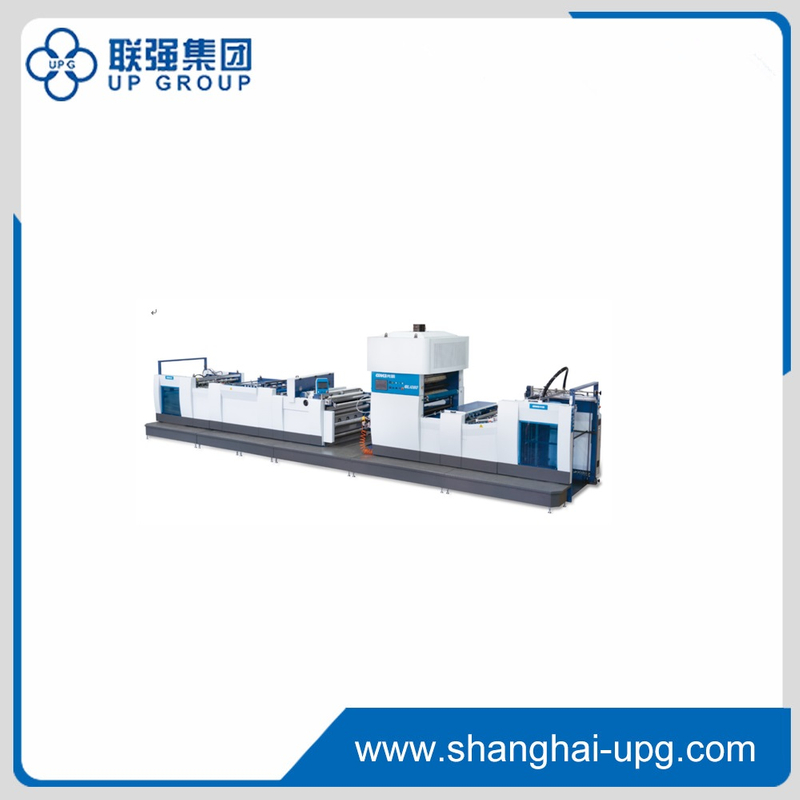

LQ-GL-1080
UPG
Automatic feeder. Equipped with pre-stacker and electrical adjustment.
Mechanical side lay register.
Powder remove. Heating roller with scraper effectively remove the powder.
Two heating cylinders are equipped with electromagnetic heater. Fast heating time. Accurate temperature control. Less waiting time.
Dual function thermal and water-base laminating.
Anti-curl stops thin paper from curling after lamination.
Mechanical sheeter. High speed. Fast response.
Automatic feeder. Equipped with pre-stacker and electrical adjustment.
Mechanical side lay register.
Powder remove. Heating roller with scraper effectively remove the powder.
Two heating cylinders are equipped with electromagnetic heater. Fast heating time. Accurate temperature control. Less waiting time.
Dual function thermal and water-base laminating.
Anti-curl stops thin paper from curling after lamination.
Mechanical sheeter. High speed. Fast response.
Model No. | LQGL-1080 |
Max Paper Size | 1080×1300mm |
Min Paper Size | 300×300mm |
Laminating Speed | 0-80m/min |
Paper Thickness | 100-500gsm |
Gross Power | 100/50kw |
Weight including Chain Cutter | 10000kgs |
Overall Dimensions Including Chain Cutter | 12000×2550×3250mm |
Model No. | LQGL-1080 |
Max Paper Size | 1080×1300mm |
Min Paper Size | 300×300mm |
Laminating Speed | 0-80m/min |
Paper Thickness | 100-500gsm |
Gross Power | 100/50kw |
Weight including Chain Cutter | 10000kgs |
Overall Dimensions Including Chain Cutter | 12000×2550×3250mm |
