LQ-JM
UPG

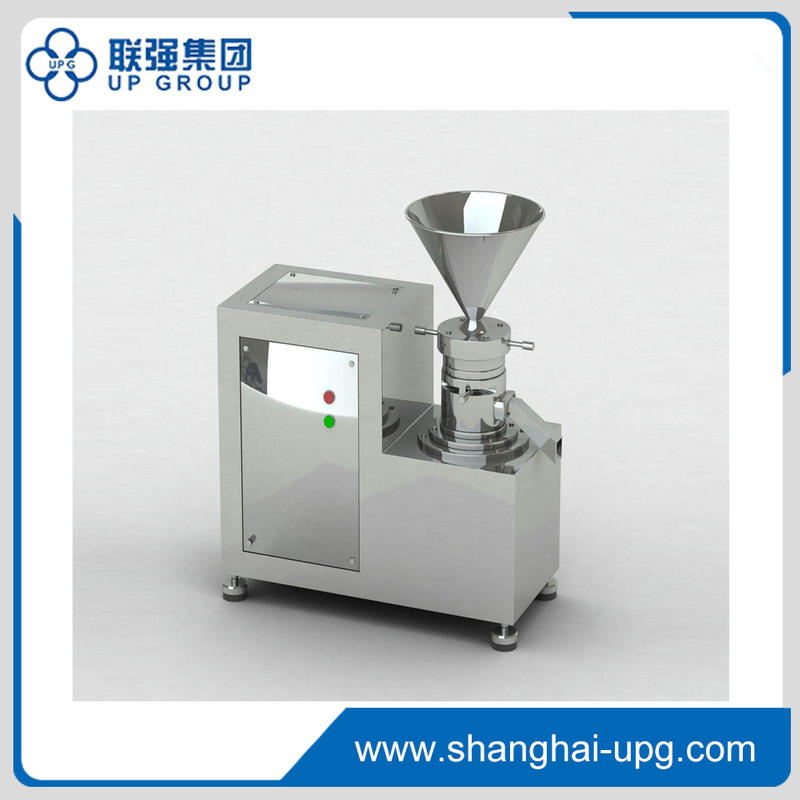

This machine is the most ideal equipment for wet materials crushing in domestic market at present and have the features of compact structure, stable running, low noise, corrosion resisting, easy cleaning and maintaince, etc.. The main technical parameters have reached the advanced level of similar foreign products.
This machine is widely applied for the wet materials fine crushing in such industries as pharmaceutical, foodstuff, chemical, etc., and also suitable for crushing, emulsifying and mixing majority kinds of semi-moist or emulsions materials.
This machine is the most ideal equipment for wet materials crushing in domestic market at present and have the features of compact structure, stable running, low noise, corrosion resisting, easy cleaning and maintaince, etc.. The main technical parameters have reached the advanced level of similar foreign products.
This machine is widely applied for the wet materials fine crushing in such industries as pharmaceutical, foodstuff, chemical, etc., and also suitable for crushing, emulsifying and mixing majority kinds of semi-moist or emulsions materials.
Model | LQ-JM-50 | LQ-JM-100 | LQ-JM-150 | LQ-JM-200 | LQ-JM-250 | LQ-JM-300 | LQ-JM-350 | LQ-JM-450 |
Emulsification Fineness | 2-50μm | 2-50μm | 2-50μm | 2-50μm | 2-50μm | 2-50μm | 2-50μm | 2-50μm |
Adjusting Range | 1-0.01mm | 1-0.01mm | 1-0.01mm | 1-0.01mm | 1-0.01mm | 1-0.01mm | 1-0.01mm | 1-0.01mm |
Production Capacity | 0.01-0.3t/h | 0.5-2t/h | 0.8-5t/h | 2-7t/h | 4-15t/h | 6-20t/h | 8-30t/h | 10-40t/h |
Motor Power | 1.5kw | 5.5kw | 11kw | 18.5kw | 37kw | 55kw | 75kw | 110kw |
Spindle Speed | 4500r/min | 4500r/min | 4500r/min | 4500r/min | 4500r/min | 4000r/min | 4000r/min | 3500r/min |
Grinding Disc Dia | ¢50mm | ¢100mm | ¢150mm | ¢200mm | ¢250mm | ¢300mm | ¢350mm | ¢450mm |
Discharge Outlet Dia | ¢15mm | ¢32mm | ¢40mm | ¢65mm | ¢75mm | ¢85mm | ¢85mm | ¢90mm |
Feeding Inlet Dia | ¢32mm | ¢50mm | ¢80mm | ¢120mm | ¢140mm | ¢159mm | ¢159mm | ¢168mm |
Water-cooling Tube Dia | ¢1/8" | ¢1/4" | ¢1/4" | ¢1/4" | ¢1/4" | ¢1/4" | ¢1/4" | ¢1/4" |
Overall Dimension | 750*400 *810mm | 1060*500*1080mm | 1100*520*1250mm | 1200*560 *1420mm | 1500*700*1600mm | 1800*900*1800mm | 2100*1100*2000mm | 2500*1400*2300mm |
Weight | 100kg | 275kg | 525kg | 650kg | 1300kg | 1600kg | 2200kg | 3000kg |
