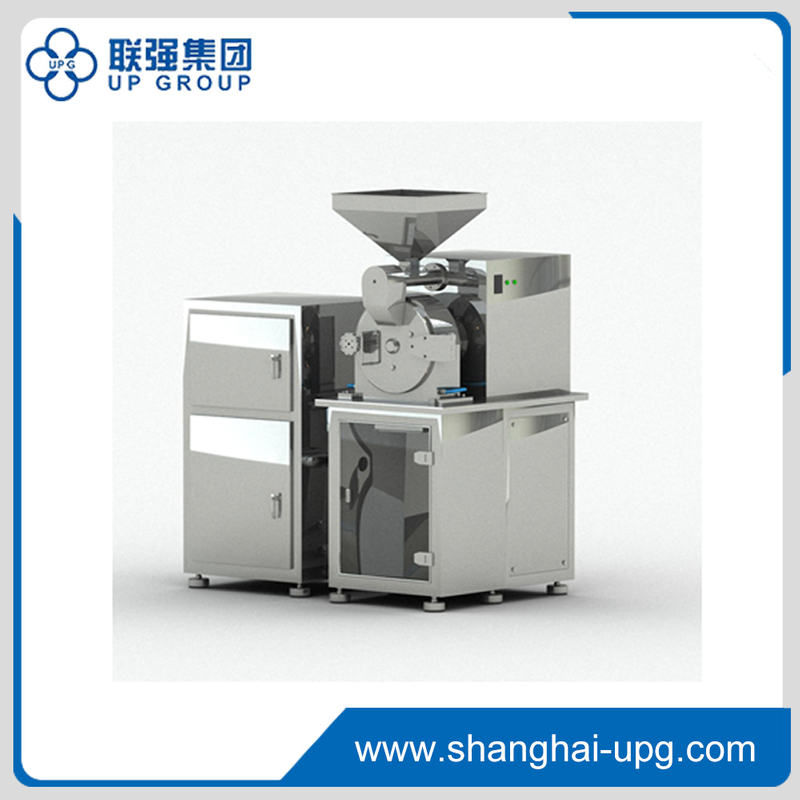

LQ-WFJ Series Dust Collecting Fine Crusher Set

This series crusher set belong to hammer type with the functions of crushing and dust collecting. It is suitable for crushing the medicines, chemical raw materials and foodstuff which have the features of medium hardness and low viscosity. Meanwhile, it is the basic equipment for small batch production or laboratory sample test.
Availability:
Quantity:

PDF Export

LQ-WFJ Series Dust Collecting Fine Crusher Set
  • LQ-WFJ

  • UPG

This series crusher set belong to hammer type with the functions of crushing and dust collecting. It is suitable for crushing the medicines, chemical raw materials and foodstuff which have the features of medium hardness and low viscosity. Meanwhile, it is the basic equipment for small batch production or laboratory sample test.
It also has the features of simple structure and easy to disassemble the crushing chamber and cleaning. The whole machine is deigned according to GMP standard and made of high quality stainless steel which make the material could satisfy the hygiene requirement. There is no flying dust during the whole production process which could improve the working environment and increase the using rate of the finished product. The crusher is equipped with silencer which could effectively reduce the noise from the crushing chamber.

Model Production Capacity
(kg/h)
Feeding Size
(mm)
Crushing
Fineness
(mesh)
Spindle
Speed
(r/min)

Motor
Power
(kw)
Overall Dimension
(mm)
Weight
(kg)
LQ- WFJ-180B  30-90 ≤1 200-300 10000  4.18 600*820*1320
600*500*1320
320
LQ-WFJ-320B 60-300 ≤5 100-500  6000 12.68 1150*550*1350
600*550*1350
450
