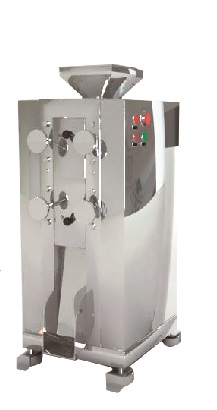

LQ-YGJ
UPG
This machine is specially designed for oily materials grinding with the features of easy operation, low noise, high output etc., It overcome the design defect that the oily materials will produce large quantity of oil when being crushed which block up the chamber and finally lead to the machine stop running.
This machine successfully fill the blank of this kind of grinder in domestic market, the technology also reach the international advanced level. It is applied for the oily materials such as sesame, peanut, almond, cocoa bean, coffee bean, rapeseed etc..
This machine is specially designed for oily materials grinding with the features of easy operation, low noise, high output etc., It overcome the design defect that the oily materials will produce large quantity of oil when being crushed which block up the chamber and finally lead to the machine stop running.
This machine successfully fill the blank of this kind of grinder in domestic market, the technology also reach the international advanced level. It is applied for the oily materials such as sesame, peanut, almond, cocoa bean, coffee bean, rapeseed etc..
Model | Production Capacity | Crushing fineness | Motor Power | Weight |
LQ-YGJ1-100 | 20-80 kg/h | 8-20 mesh | 0.75 kw | 250 kg |
LQ-YGJ2-100 | 20-80 kg/h | 8-40 mesh | 1.5 kw | 300 kg |
LQ-YGJ3-100 | 20-80 kg/h | 8-60 mesh | 2.2 kw | 350 kg |
LQ-YGJ4-100 | 20-80 kg/h | 8-80 mesh | 3 kw | 400 kg |
LQ-YGJ1-150 | 50-200 kg/h | 8-20 mesh | 2.2 kw | 500 kg |
LQ-YGJ2-150 | 50-200 kg/h | 8-40 mesh | 3 kw | 550 kg |
LQ-YGJ3-150 | 50-200 kg/h | 8-60 mesh | 4 kw | 600 kg |
LQ-YGJ4-150 | 50-200 kg/h | 8-80 mesh | 5.5 kw | 650 kg |
LQ-YGJ1-300 | 100-500 kg/h | 8-20 mesh | 3 kw | 760 kg |
LQ-YGJ2-300 | 100-500 kg/h | 8-40 mesh | 4 kw | 940 kg |
LQ-YGJ3-300 | 100-500 kg/h | 8-60 mesh | 7.5 kw | 1120 kg |
LQ-YGJ4-300 | 100-500 kg/h | 8-80 mesh | 7.5 kw | 1300 kg |
