LQ-B
UPG

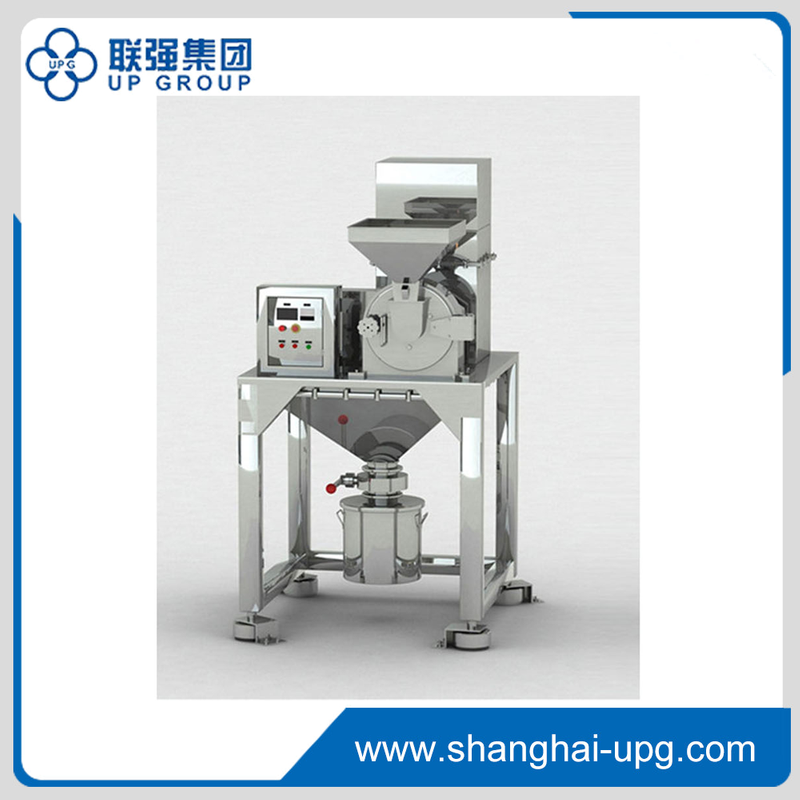

This series equipment in the new generation crusher with the functions of crushing and dust collecting. It is mainly applied for crushing dry and fragility materials in pharmaceutical, chemical, foodstuff industries, etc., But it is not suitable for the materials with the features of low softening point and high viscosity.
The parts of the crusher set which contact the material are all made of high quality stainless steel, thus have good anticorrosion. The cabinet inside is fine polished and the surface is smooth, this make the products in pharmaceutical, chemical, foodstuff industries could satisfy the national GMP standard. It also have the features of simple structure, sturdy and durable, high capacity and stable running. We are the exclusive producer of this series crusher in China currently.
This series equipment in the new generation crusher with the functions of crushing and dust collecting. It is mainly applied for crushing dry and fragility materials in pharmaceutical, chemical, foodstuff industries, etc., But it is not suitable for the materials with the features of low softening point and high viscosity.
The parts of the crusher set which contact the material are all made of high quality stainless steel, thus have good anticorrosion. The cabinet inside is fine polished and the surface is smooth, this make the products in pharmaceutical, chemical, foodstuff industries could satisfy the national GMP standard. It also have the features of simple structure, sturdy and durable, high capacity and stable running. We are the exclusive producer of this series crusher in China currently.
Model | LQ-15B | LQ-20B | LQ-30B | LQ-40B |
Production Capacity | 10-50kg/h | 60-150kg/h | 100-400kg/h | 160-1000kg/h |
Feeding Size | ≤6mm | ≤6mm | ≤10mm | ≤12mm |
Spindle Speed | 6000r/min | 4500r/min | 3800r/min | 3400r/min |
Crushing Fineness | 20-120mesh | 20-120mesh | 20-120mesh | 20-120mesh |
Crushing Motor | 2.2kw | 4kw | 5.5kw | 11kw |
Dust Collecting Motor | 0.55kw | 1.5kw | 1.5kw | 1.5kw |
Overall Dimension(mm) | 950*450*1550 | 1120*600*1750 | 1250*660*1750 | 1450*700*1750 |
Weight | 220kg | 480kg | 550kg | 680kg |
Model | LQ-15B | LQ-20B | LQ-30B | LQ-40B |
Production Capacity | 10-50kg/h | 60-150kg/h | 100-400kg/h | 160-1000kg/h |
Feeding Size | ≤6mm | ≤6mm | ≤10mm | ≤12mm |
Spindle Speed | 6000r/min | 4500r/min | 3800r/min | 3400r/min |
Crushing Fineness | 20-120mesh | 20-120mesh | 20-120mesh | 20-120mesh |
Crushing Motor | 2.2kw | 4kw | 5.5kw | 11kw |
Dust Collecting Motor | 0.55kw | 1.5kw | 1.5kw | 1.5kw |
Overall Dimension(mm) | 950*450*1550 | 1120*600*1750 | 1250*660*1750 | 1450*700*1750 |
Weight | 220kg | 480kg | 550kg | 680kg |
