LQ-WCSJ
UPG

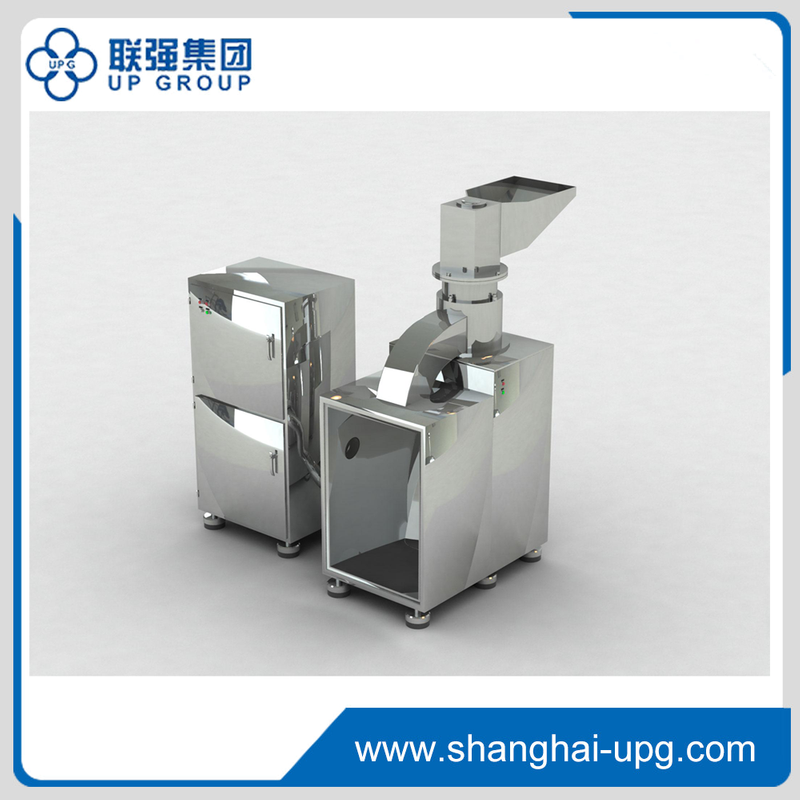

This series crusher is widely applied for pharmaceutical, foodstuff, metallurgy, construction, chemical industries materials with the features of solid and difficult to crush. It is suitable for majority of materials without limitation to viscosity, hardness, softness, fiber, etc., and has good crushing effect. It also could be matched as the former process equipment of fine crushing. It is the new generation coarse crusher with the functions of crushing and dust collecting.
The equipment also have the features of compact construction, easy to operation and maintain, sturdy and durable, stable running, high output, etc., Moreover, the whole machine is made of stainless steel and assembled with the dust absorption cabinet and material collecting cabinet on the basis of WCSJ-A model. It effectively improve the working environment and make the crushing process without dust which could accord with the “GMP” standard requirement. Is also increase the material availability and reduce the enterprise cost.
This series crusher is widely applied for pharmaceutical, foodstuff, metallurgy, construction, chemical industries materials with the features of solid and difficult to crush. It is suitable for majority of materials without limitation to viscosity, hardness, softness, fiber, etc., and has good crushing effect. It also could be matched as the former process equipment of fine crushing. It is the new generation coarse crusher with the functions of crushing and dust collecting.
The equipment also have the features of compact construction, easy to operation and maintain, sturdy and durable, stable running, high output, etc., Moreover, the whole machine is made of stainless steel and assembled with the dust absorption cabinet and material collecting cabinet on the basis of WCSJ-A model. It effectively improve the working environment and make the crushing process without dust which could accord with the “GMP” standard requirement. Is also increase the material availability and reduce the enterprise cost.
Model | LQ-WCSJ-20B | LQ-WCSJ-320B |
Production Capacity | 100-500kg/h | 300-1200kg/h |
Feeding Size | ≤100mm | ≤100mm |
Output Size | 0.5-20mm | 0.5-20mm |
Spindle Speed | 960r/min | 1070r/min |
Crushing Motor Power | 5.5kw | 11.0kw |
Dust Collecting Motor Power | 1.5kw | 1.5kw |
Overall Dimension | 880*550*1780mm 600*500*1280mm | 950*600*1950mm 600*500*1280mm |
Weight | 500kg | 850kg |
Model | LQ-WCSJ-20B | LQ-WCSJ-320B |
Production Capacity | 100-500kg/h | 300-1200kg/h |
Feeding Size | ≤100mm | ≤100mm |
Output Size | 0.5-20mm | 0.5-20mm |
Spindle Speed | 960r/min | 1070r/min |
Crushing Motor Power | 5.5kw | 11.0kw |
Dust Collecting Motor Power | 1.5kw | 1.5kw |
Overall Dimension | 880*550*1780mm 600*500*1280mm | 950*600*1950mm 600*500*1280mm |
Weight | 500kg | 850kg |
