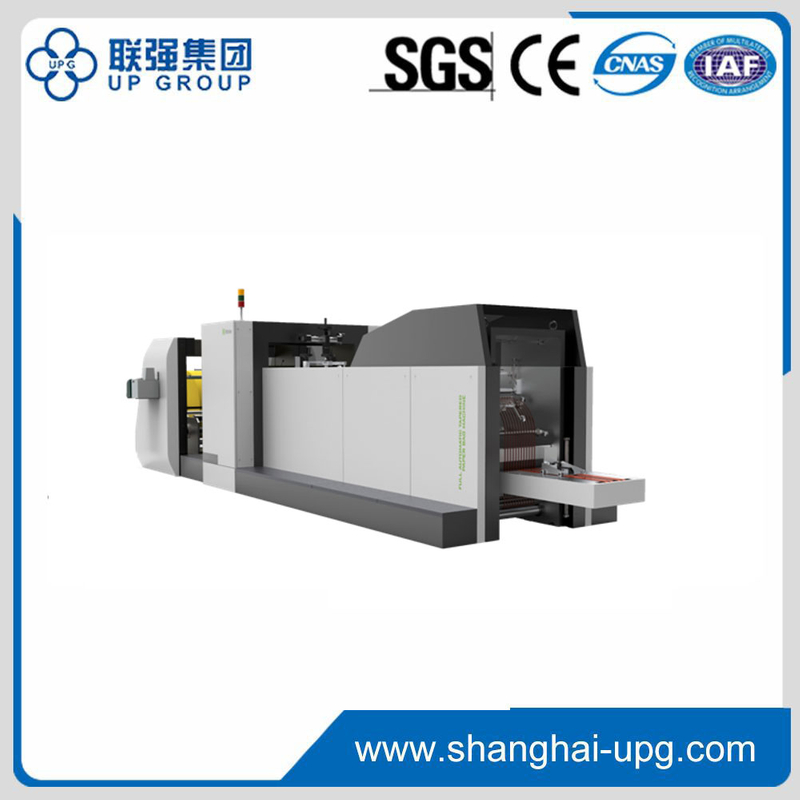

LQ-K350 Flat Bottom Paper Bag Machine

Paper bag machine series is applied to producemany types of paper bags, such as food paper bag, shopping bags and so on. This machine is side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag out in one line. It is easy to operate, high efficient, and stable.

Availability:
Quantity:
  • LQ-K350
  • LQ


The paper roll adopts hydraulic automatic lifting structure, and the unwinding adopts automatic tension control.Feeding Part,
Using a friendly graphical man-machine interface, the operation functions are clear at a glance, and easy to understand and learn.Adopting the Japanese Yaskawa motion controllerand servo motor, through the high-speed bus control mode, to ensure the stable high-speed operation of the machine.










Model

LQ-K350


Paper bag length (L)

155-715mm

Paper bag width (W)

70-320mm

Side   insert widthG

20-120mm

Bag   mouth height

15/20mm

Paper thickness

35-80g/m3

Max. Paper bag speed

50-720pcs/min5-120m/min

Paper roll diameter

Dia1000mm

Inner diameter of the   paper roll

Dia 76mm

Filmwidth

50-200mm

Film   thickness

0.012-0.037mm

Max.   Film diameter

500mm

Machine supply

380V,   50Hz, three phase, four wires

Power

19.5KW

Weight

6500 KGS

Dimension

L7500*W3000*H2300
