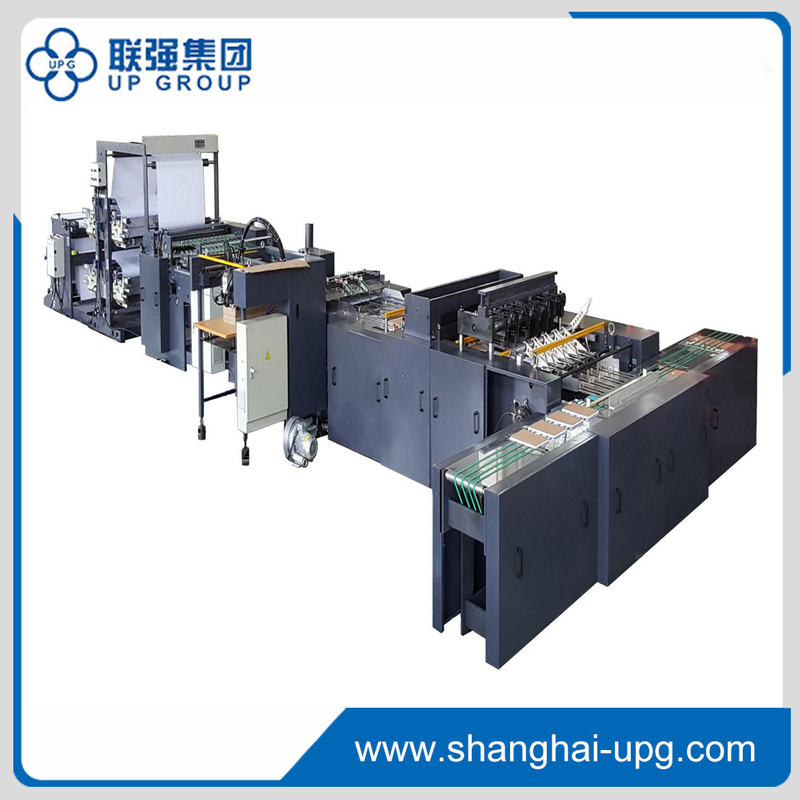

LQ-LRY1020 Flexo loose-leaf line

Availability:
Quantity:
  • LQ-LRY1020 Flexo loose-leaf line

  • UPG


Based on the flexo ruling machine successful marketing and to fit for customers requirement, Our company developed a new LQ-LRY1020 flexo loose-leaf line. After reel-release the web,2+2 flexo printing, cross cut, counting and stratifying, auto covering, punching, cutting, collecting, then comes out the finished product. It can also connect with shrink package line to make the raw paper to packaged final product with high speed and output.This is ideal machine for producing loose-leaf book.

The main key parts of this machine are imported from foreign specialist manufactures; the electrical apparatus control system used the most advanced data communication.The PLC centralized control system ensured each part of the machine working harmoniously.



Main specification

Model

LQ-LRY1020

Max technical speed(m/min)

300

Cutting precision(mm)

±0.5

Reel width(mm)

680-1020

Printing-cutting length(mm)

300-370

Counting layering(sheets)

6-50

Delivery to layer(sheets)

25-500

Total power(KW)

26

Net weight(kg)

16000




ModelLQ-LRY1020
Max technical speed(m/min)300

Cutting precision(mm)

±0.5

Reel width(mm)680-1020
Printing-cutting length(mm)300-370
Counting layering(sheets)6-50

Delivery to layer(sheets)

25-500
Total power(KW)26
Net weight(kg)16000
