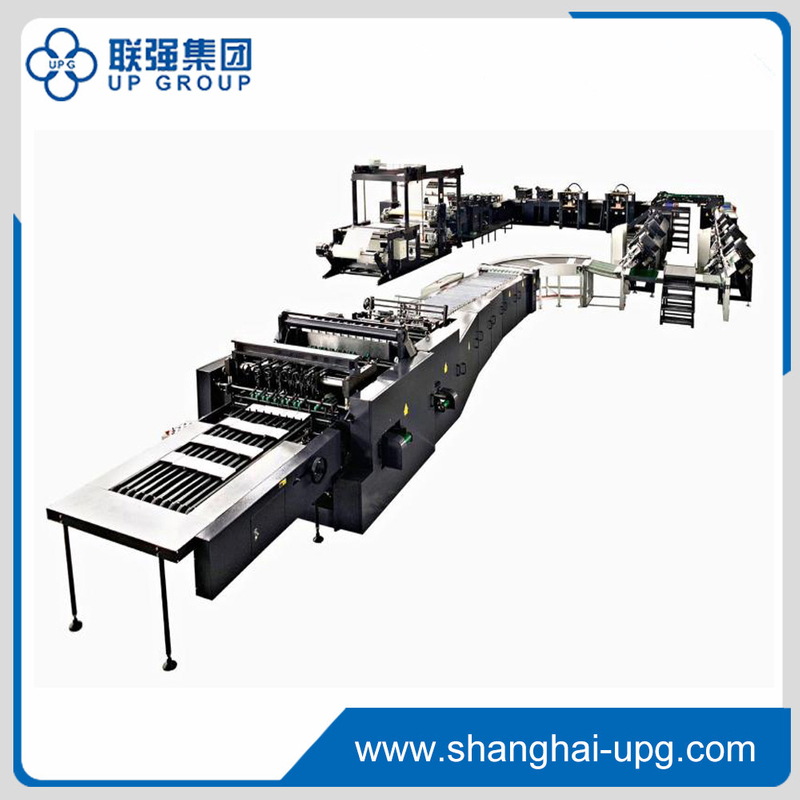

LQ-LY1020 Ruling-two lines wrapping notebook line


PDF Export

  • LQ-LY1020

  • UPG

LQ-LY1020 Ruling-two lines wrapping notebook line is a newest developed machine based on the advantage technology the machine can do the whole processing include printing,cutting,counting and collecting.The degree of automation is on leading domestic level and reaches advanced world standards.

This line insisted by Reel-release, web guide, printing, micro perforation, strips separation, rotary cut, counting, feed up/bottom title pages,covering, go to two wrapping lines by turns, gluing, drying, tape wrapping, tape cut, turning transport, stacking, book locating, trimming and collecting.based on the two wrapping lines the machine is the quickest equipment in domestic market with the max speed of 50 strips/min.

Special points:BST Web guide system,automatic splicer which can load 1000KG roll, whole casting structure for printing unit, Cutting size can be changed by gear easily.

To replace the adhesive binding book the machine use environment-friendly cold glue technology so the notebook have smooth spreading shape and will not loose sheet. In addition to the A5, B5, A4 size products, The notebook line is an ideal and practical machine that can bring high production efficiency and respectable economic benefit to the user since it has high performance price ratio.


Max speed strips(m/min)


Max reel-release(mm)

Printing cutting length(mm)600-780
Max printing width(mm)1020
Max printing speed(m/min)300
Cutting size(mm)600-780
Max wrapping(mm)780x260
Max front trim size(mm)1020x260
Max book separation width(mm)255
